Non-destructive and Accurate Film Thickness Measurement with Fiber Optic Spectrometer

Contact Now

Non-destructive and Accurate Film Thickness Measurement with Fiber Optic Spectrometer

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1

Product Description

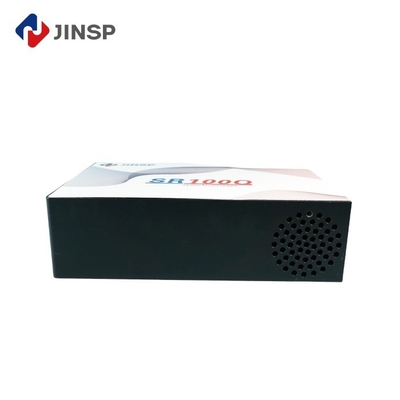

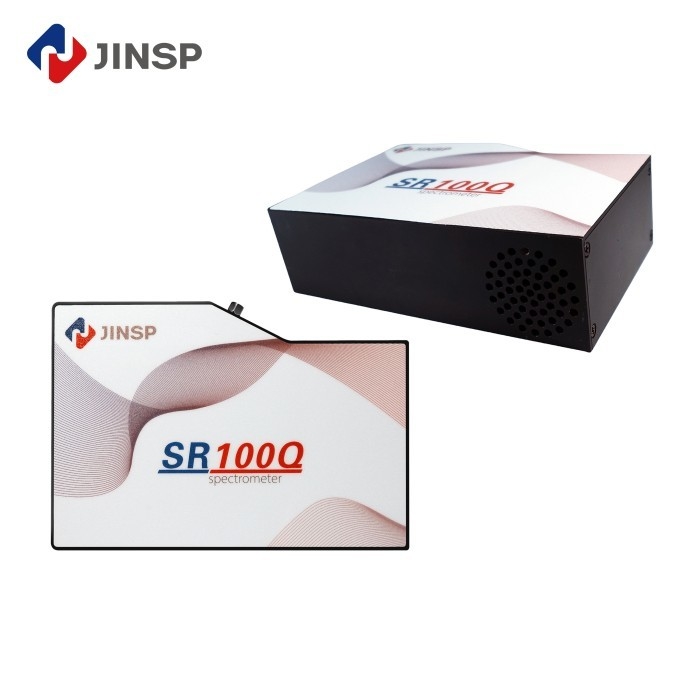

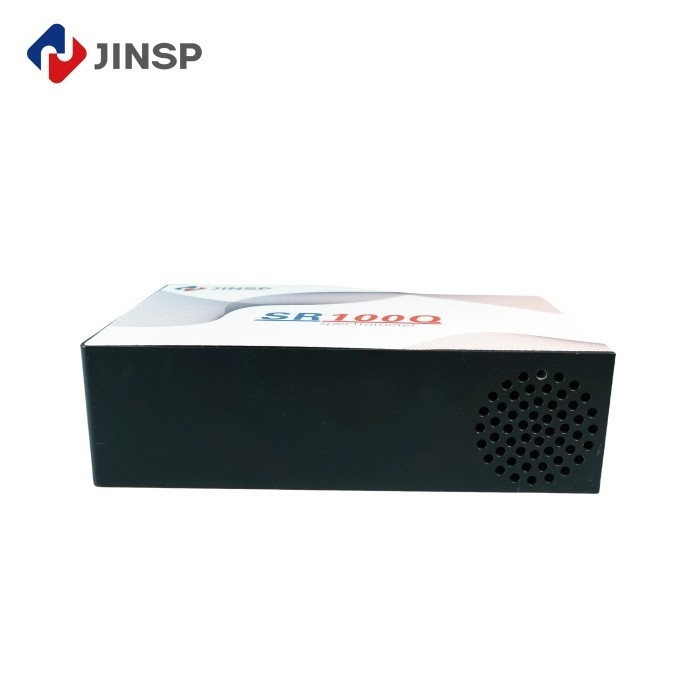

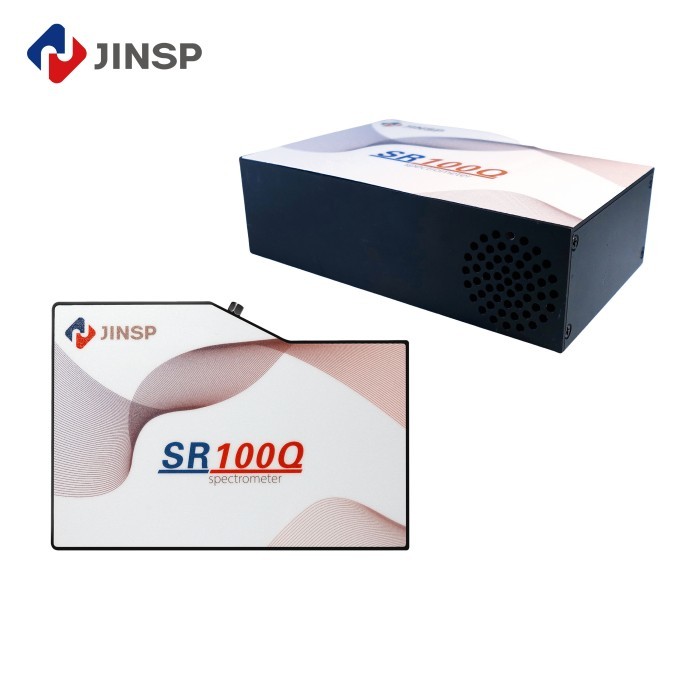

92% High Quantum Spectrometer for Film Thickness Measurement

Thin film thickness monitoring forms the backbone of quality control in semiconductor and display manufacturing. Photoelectric instruments provide the ideal solution—combining precision with preservation of delicate layers. Through intelligent optical diagnostics, industries gain tools for continuous process refinement and breakthrough developments.

The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals. Furthermore, it can realize excellent spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

**Note: The*are primarily designed for Raman applications, with the corresponding Raman.**

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Measurement Method:

Incident light from the fiber probe reflects at the film’s top and bottom surfaces, generating interfering beams. The spectrometer analyzes their interference spectrum, enabling thickness (d) calculation through the extremum method (θ, n, and peak/trough data). Higher thickness tightens fringe spacing, while longer wavelengths expand it. Precise measurements require optimized spectral settings.
