Lab Online FTIR Analyzer Fourier Transform Infrared Spectroscopy Equipment

Contact Now

Lab Online FTIR Analyzer Fourier Transform Infrared Spectroscopy Equipment

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	60-80working days
Payment Terms :	TT	Supply Ability :	20 PCS/60-80 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	IT2000CE
Document:	Product Brochure PDF

Detail Information
Spectral Range:	500-5000 Cm-1	Resolution:	2 Cm-1, 4 Cm-1, Or 8 Cm-1
Unit Dimensions:	510×300×250mm	Weight:	≤15 Kg
Sample Pressure:	≤2 MPa	Sample Temperature:	–50ºC ~ +100 ºC
Highlight:	Lab Online FTIR Analyzer , Lab Fourier Transform Infrared Spectroscopy Equipment , Online Fourier Transform Infrared Spectroscopy Equipment

Product Description

Lab Online FTIR Analyzer Fourier Transform Infrared Spectroscopy Equipment

Product Specifications

Spectral range	500-5000 cm^-1
Resolution	2 cm^-1, 4 cm^-1, or 8 cm^-1
Unit dimensions	510×300×250mm
Weight	≤15 kg
Sample pressure	≤2 MPa
Sample temperature	–50ºC ~ +100 ºC

Product Overview

Chemical, pharmaceutical, and materials process development requires precise quantitative analysis of components. Traditional offline laboratory analysis techniques often involve time-consuming sample transfers and processing, which cannot meet real-time monitoring requirements.

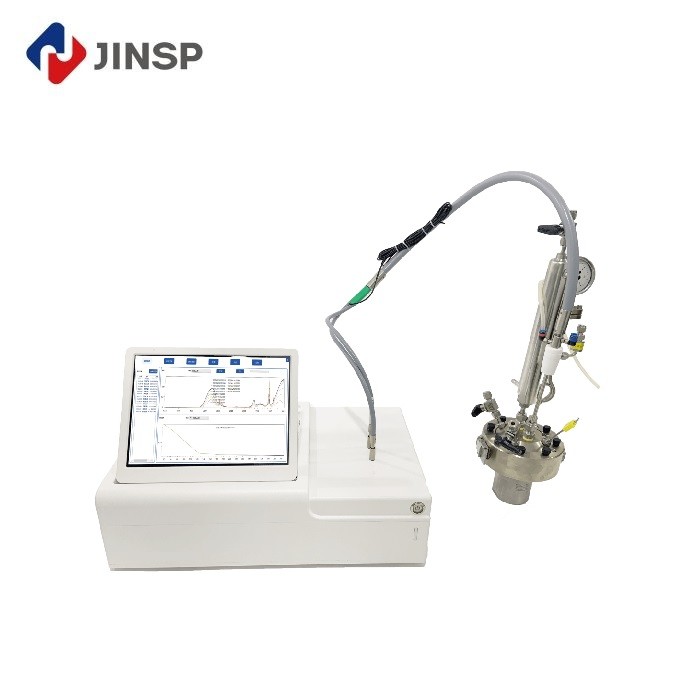

The JINSP® IT2000CE online FT-IR analyzer provides in-situ, real-time monitoring of chemical reactions, measuring reactants, products, intermediates, and impurities continuously to predict reaction rates, conversion rates, and potential incidents.

Technical Highlights

Highly applicable: Measures black/deep color samples and liquid components in suspension, resistant to high temperature/pressure and corrosive liquids
Fast: Data acquisition in seconds
Intuitive: Real-time display of reactant and product dynamics
Multi-functional: Simultaneous measurement of multiple components
Intelligent: Automatic FT-IR spectra analysis with smart algorithms

Detailed Technical Parameters

Product	Online FT-IR Analyzer
Measurement Type	Fourier Transform Infrared Spectrometer
Display screen	10.5 inch capacitive touchscreen with multi-point touch
Spectral range	500 ~ 5000 cm^-1 \| 600 ~ 1800 cm^-1
Sample temperature range	–50ºC~ 100 ºC \| –150ºC~ 230 ºC
Sample pressure range	≤2 MPa \| ≤10 MPa
Probe dimensions	L: 300 mm, D: 6.35 mm (Hastelloy alloy) or L: 150 mm, D: 6.35 mm (PEEK)

Software Features

Real-time analysis during data collection with marked component tracking
Flexible online monitoring platform with embedded quantification models

Usage Models

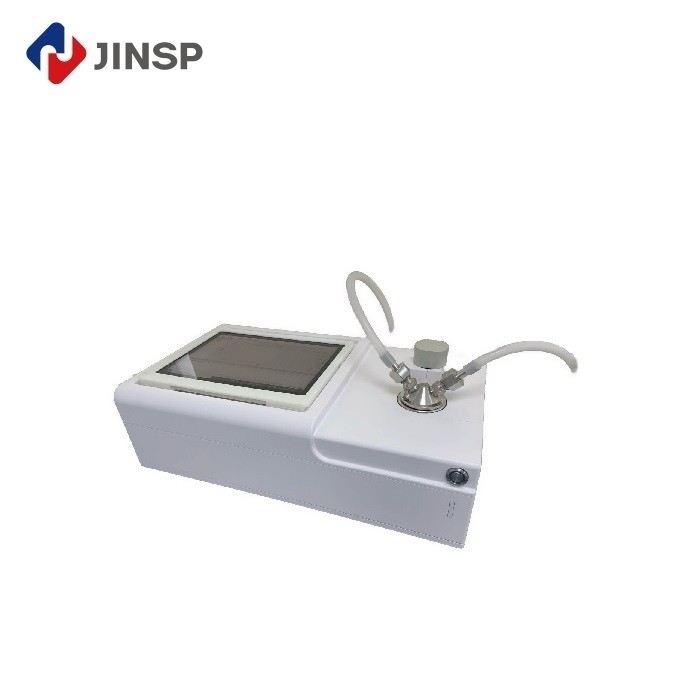

The IT2000CE can connect to continuous flow reactors via bypass flow cells or use immersion probes for batch reactor monitoring, providing versatile solutions for different industrial applications.

Frequently Asked Questions

Q1: Is the spectrometer easy to operate for first-time users?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support sessions.

Q2: Do you offer operation training?

A2: Training is available at our facility or through on-site support from JINSP engineers for installation, training, and maintenance.

Q3: What about warranty and technical support?

A3: The spectrometer comes with a one-year warranty, including free repairs for warranty-covered issues.

Q4: How is quality assured?

A4: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
