Laboratory Detection Online FTIR Analyzer FTIR Spectroscopy Instrument Fast

Contact Now

Laboratory Detection Online FTIR Analyzer FTIR Spectroscopy Instrument Fast

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	60-80working days
Payment Terms :	TT	Supply Ability :	20 PCS/60-80 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	IT2000CE
Document:	Product Brochure PDF

Detail Information
Spectral Range:	500-5000 Cm-1	Resolution:	2 Cm-1, 4 Cm-1, Or 8 Cm-1
Unit Dimensions:	510×300×250mm	Weight:	≤15 Kg
Sample Pressure:	≤2 MPa	Sample Temperature:	–50ºC ~ +100 ºC
Highlight:	Laboratory Detection Online FTIR Analyzer , Laboratory Detection FTIR Spectroscopy Instrument , Fast Online FTIR Analyzer

Product Description

Laboratory Detection Online FTIR Analyzer FTIR Spectroscopy Instrument

Key Specifications

Spectral range	500-5000 cm^-1
Resolution	2 cm^-1, 4 cm^-1, or 8 cm^-1
Dimensions	510×300×250mm
Weight	≤15 kg
Sample pressure	≤2 MPa
Sample temperature	–50ºC ~ +100ºC

Product Overview

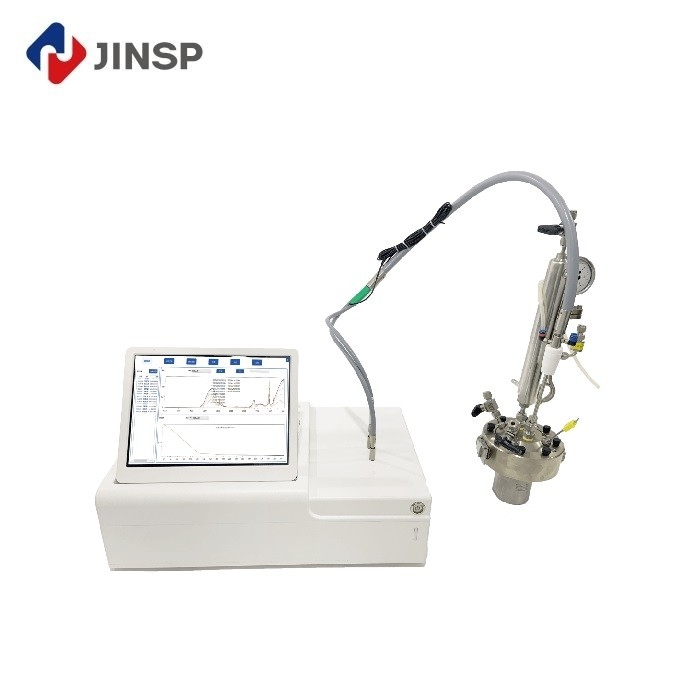

The JINSP® IT2000CE online FT-IR analyzer provides advanced in-situ monitoring for chemical, pharmaceutical, and material process research and production. This sophisticated instrument enables real-time, continuous analysis of reaction components with exceptional speed and accuracy.

Technical Highlights

Highly Applicable: Measures black/deep color samples and liquid components in suspension, resistant to extreme conditions including high temperature/pressure and corrosive substances
Fast Analysis: Acquires data in seconds for immediate results
Intuitive Interface: Real-time display of reactant and product dynamics
Multi-functional: Simultaneous measurement of multiple component concentrations
Intelligent Operation: Automatic spectral analysis using advanced algorithms

Detailed Technical Parameters

Measurement Type	Fourier Transform Infrared Spectrometer
Display Screen	10.5 inch capacitive touchscreen with multi-point touch
Spectral Range	500 ~ 5000 cm^-1 \| 600 ~ 1800 cm^-1
Sample Temperature Range	–50ºC~100ºC \| –150ºC~230ºC
Sample Pressure Range	≤2 MPa \| ≤10 MPa
Optical Fiber Length	1.5 m or 3 m
Probe Dimensions	L: 300 mm, D: 6.35 mm (Hastelloy alloy) or L: 150 mm, D: 6.35 mm (PEEK)

Software Capabilities

Real-time analysis during data collection with marked absorption peaks
Flexible online monitoring platform with embedded quantification model
Continuous monitoring of component concentration in chemical reactions

Application Methods

The IT2000CE offers versatile monitoring solutions:

Continuous Flow Reactors: Connects via bypass to flow cell for online monitoring
Batch Reactors: Uses immersion probe to penetrate liquid surface for comprehensive component monitoring

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide comprehensive English manuals and instructional videos, along with professional technical support from our engineers.

Q: Do you offer operation training?

A: Yes, we provide both on-site training at our facility and local support including installation, training, debugging, and maintenance at your location.

Q: What is your quality assurance process?

A: All instruments undergo rigorous quality inspection before shipment, with documentation and photos available for customer review.

Q: What is your warranty policy?

A: The spectrometer comes with a one-year warranty covering repairs for any manufacturing defects.
