Chemical and Bio Chemical Material Identification Handheld Raman Spectrometer
Product Specifications
| Attribute |
Value |
| Laser wavelength |
1064nm |
| Response speed |
~15s |
| Function |
Qualitative identification of compounds |
| Spectral Library |
＞20000 |
| Weight |
730g |
| Survivability |
IP68 |

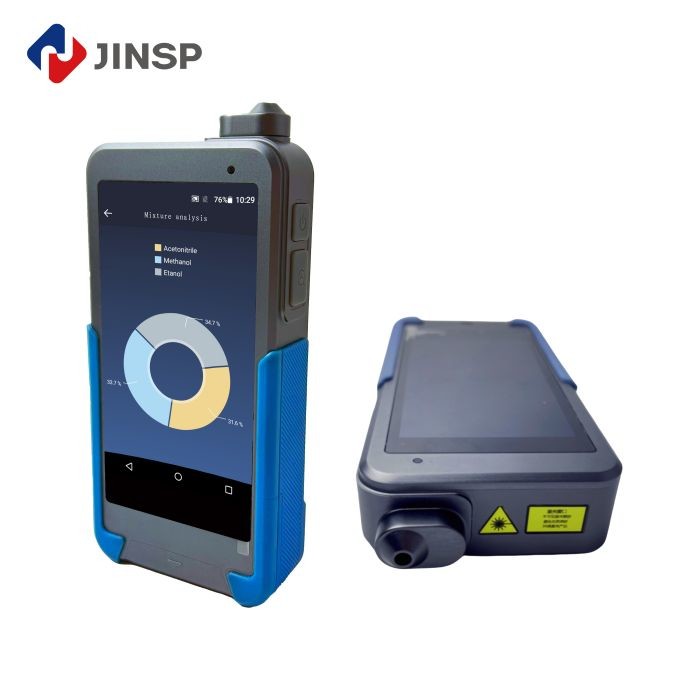

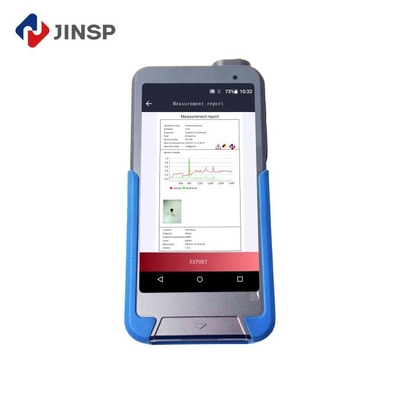

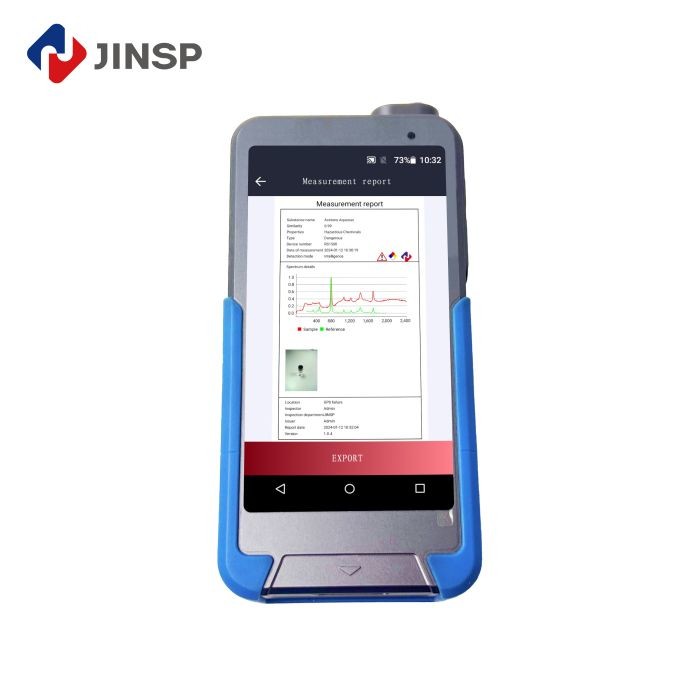

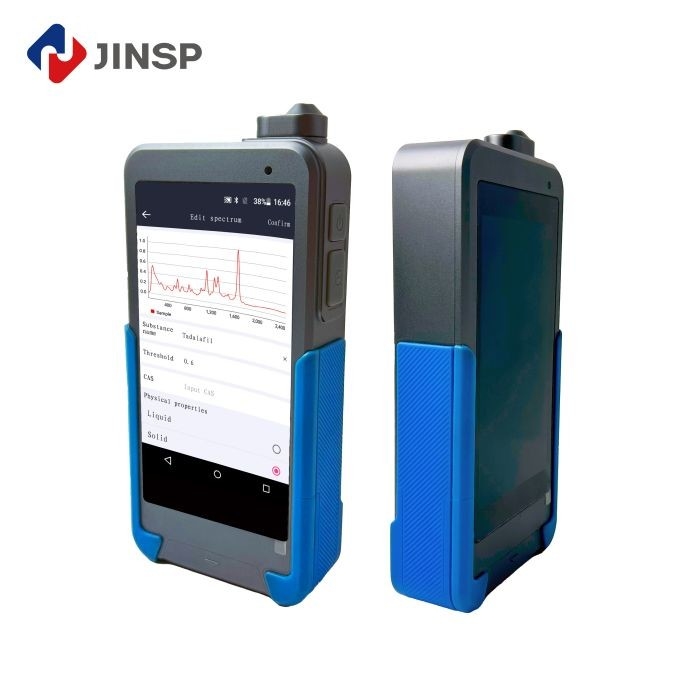

RS1500DI Handheld Raman Spectrometer
Multiple pharmacopoeial standards recognize Raman spectroscopy for its dual capacity in excipient validation and crystalline structure characterization. The technique facilitates intact package analysis, continuous manufacturing monitoring, and anti-counterfeiting measures through fluorescence signatures.
Optimize pharmaceutical manufacturing efficiency with the portable RS1500DI. Its advanced 1064nm wavelength excels in detecting biochemicals, pigments, and polymer excipients. Supports complete material inspection workflows from warehouse to production line, accelerating material release cycles.
| Item |
Description |
| Laser |
1064nm |
| Size |
176mm*87mm*33mm |
| Weight |
730g |
| Connection |
Wi-Fi, 4G, Bluetooth, Micro-USB |
| Operation |
5' Touch Screen, big button, intuitive man-machine interface operation |
| Power Supply |
Rechargeable lithium battery, 4-6h |
| Detection Range |
Chemical ram materials; Pharmaceutical excipients; Packing materials; Biochemical raw materials; Pigment excipients |
| Result |
Name, Property, Spectrum, MSDS, Result-report |
Technical Features
- Rapid detection capability: completes identification within seconds
- Non-invasive analysis: detects through various packaging materials including glass, woven bags, and plastics
- Portable design: lightweight construction enables flexible movement across different work environments
- Instant analysis: eliminates sample preparation requirements, ensuring safety and simplicity
- Precision recognition: utilizes advanced machine learning algorithms for accurate identification with high specificity
Wide Detection Range
- Chemical raw materials: aspirin, folic acid, nicotinamide, etc.
- Pharmaceutical excipients: salts, alkalis, sugars, esters, alcohols, phenols, etc.
- Packaging materials: polyethylene, polypropylene, polycarbonate, ethylene-vinyl acetate copolymer, etc.
- Biochemical raw materials: amino acids and their derivatives, enzymes and coenzymes, proteins, etc.
- Pigment excipients: carmine, carotene, curcuminchlorophyll, etc.
- Other polymer excipients: gelatin, microcrystalline cellulose, etc.
Compared with ordinary 785nm Raman, the RS1500DI has stronger detection ability across all material categories.
About JINSP Company Limited
JINSP is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies. After 17 years of technology accumulation, the company's core key technologies have reached international leading position, with cumulative patent applications exceeding 200.
JINSP offers over twenty spectroscopic products across pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
With 30+ R&D engineers including 4 Ph.D., JINSP specializes in personalized product customization, meeting diverse customer needs with professional technology and innovative design capabilities.
Frequently Asked Questions
Q: What is the brand name of the pharmaceutical spectrometer?
A: The brand name of the pharmaceutical spectrometer is JINSP.
Q: What is the model number of pharmaceutical rapid identification?
A: The model number of the pharmaceutical spectrometer is RS1500DI.
Q: Is the pharmaceutical rapid identification Spectrometer certified?
A: Yes, it is certified with CE.
Q: Do you have MOQ requirement of each order?
A: No, we support orders for even 1 piece.
Q: What is the product warranty?
A: All products have 1 year warranty, with support for extending warranty period at extra cost.
