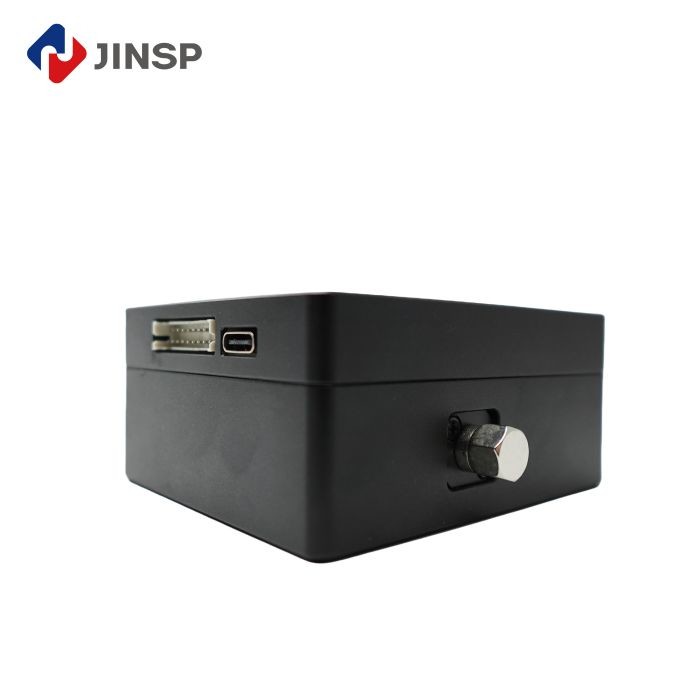

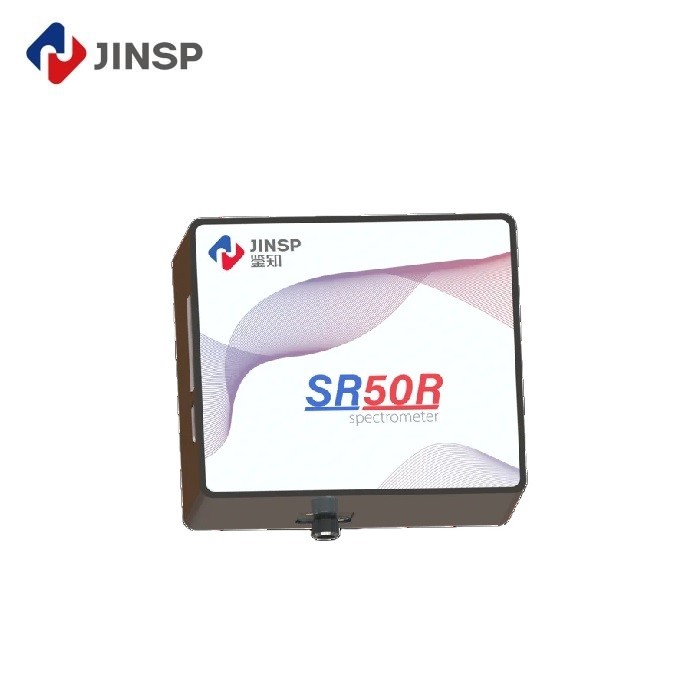

900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE ISO9001 Model Number: SR50R
Document: Product Brochure PDF

Detail Information

Type: Linear Array InGaAs Effective Pixels: 128 (256 Optional)
Cell Size: 50μm*250μm Sensitive Area: 6.4mm*0.25mm
Wavelength Range: 900-1700nm Data Output Interface: USB2.0, UART
Entrance Slit: 10μm, 25μm And 50μm Integration Time: 1ms-5s
Highlight:

Near Infrared Modular Spectrometer

,

900nm -1700nm Modular Spectrometer

Product Description

900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP
Product Specifications
Attribute Value
Type Linear array InGaAs
Effective pixels 128 (256 optional)
Cell size 50μm*250μm
Sensitive area 6.4mm*0.25mm
Wavelength range 900-1700nm
Data Output Interface USB2.0, UART
Entrance slit 10μm, 25μm and 50μm
Integration time 1ms-5s
Product Description

The JINSP SR50R17 is a compact, cost-effective 900nm~1700nm near-infrared spectrometer, using a non-cooled InGaAs sensor with high sensitivity and resolution.

900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 0
Key Features
  • Compact and low cost, High resolution
  • Compatible with USB Or UART interface to output measured spectrum data
  • Receive SMA905 fiber input to obtain free space optical
  • Lens surface is plated with gold film, high efficiency of near-infrared reflection
900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 1
Technical Parameters
Parameter Specification
Product Name Near Infrared Non-cooled Spectrometer
Wavelength Range 900-1700nm
Chip Type Linear array InGaAs
Entrance Slit width 5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface SMA905, free space
Integration Time 1ms-5s
Operating Humidity <90%RH (no condensation)
Dimensions 77mm*67mm*36mm
Weight 0.4KG
Applications
  • Moisture content measurement, waste water testing
  • Detection of substances such as fat, oil, protein, fiber etc.
  • Grain and fodder quality testing
  • Measurement of pharmaceutical mixture components
900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 2
Support and Services

The Near infrared spectrometer provides high-performance spectral measurements in a portable and affordable package. Our product technical support and services include:

  • Expert technical assistance and troubleshooting
  • Comprehensive product documentation and user manuals
  • Software updates and upgrades
  • Calibration and maintenance services
  • Customization options to fit specific application needs

Our team of experienced engineers and technicians are dedicated to ensuring the best performance and reliability of your Universal Compact Fiber Spectrometer.

900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 3
Company Profile

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.

We uphold the core value of "customer-centric" to ensure that every customer can enjoy unprecedented flexibility and personalized experience. From the initial concept to the final product, we work closely together to ensure that every detail is accurately aligned with customer expectations, and together create exclusive products that exceed expectations.

900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 4 900nm -1700nm Wavelength Range Near Infrared Modular Spectrometer JINSP 5
Frequently Asked Questions
Q1: This is the first time I use, is it easy to operate?
A1: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.
Q2: Can you offer a operation training?
A2: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).
Q3: How to receive a best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length and so on. We will send you quotation with details soon to your email.
Q4: If the spectrometer has problem in my place, how could I do?
A4: The spectrometer has one year warranty. If it breaks down, our technician will figure out what the problem maybe, according to client's feedback. We can repair for free within one year warranty.
Q5: Which payment can be acceptable?
A5: We could accept the payment by T/T, Paypal, Western Union, L/C, etc.
