Revolutionary 900nm 2500nm Near-Infrared Spectrometer for Precise Sugar and Moisture Measurement in Fruits

Near-infrared spectroscopic methods revolutionize fruit quality checks with speed and preservation. Detecting molecular vibrations in NIR spectra reveals internal compositions, streamlining quality control and post-harvest management.

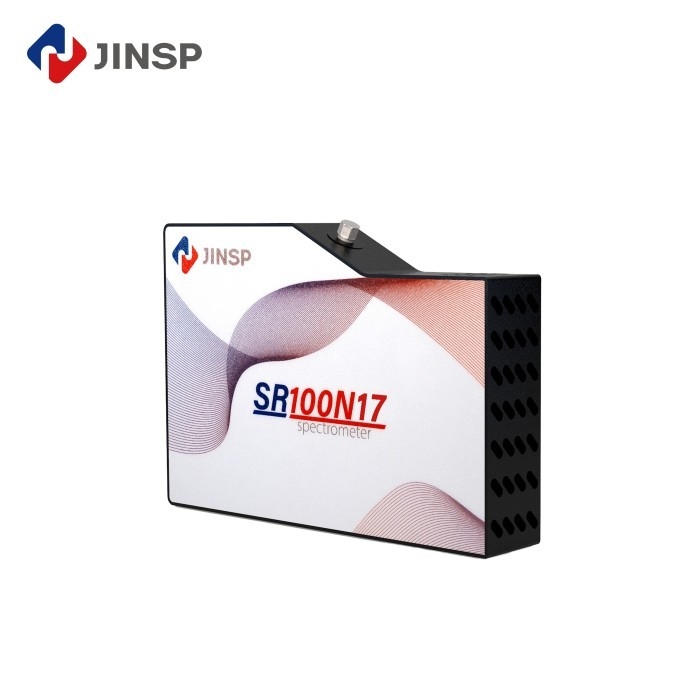

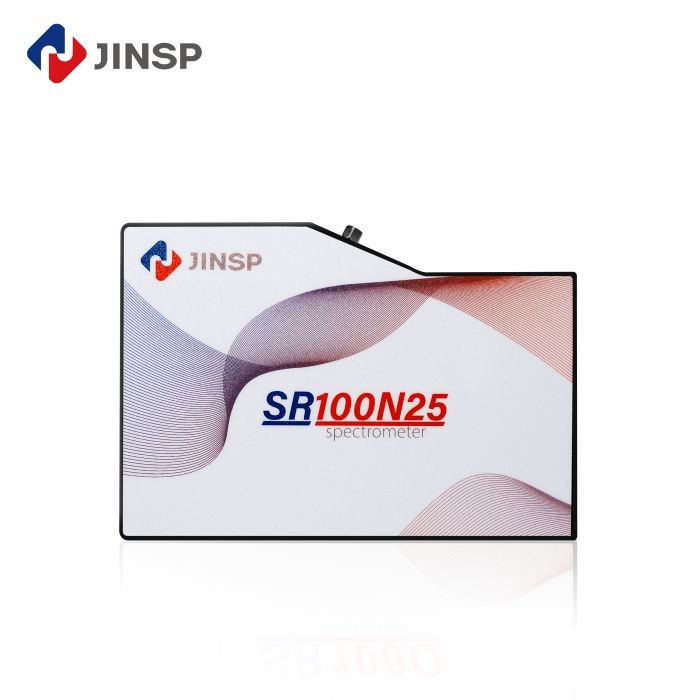

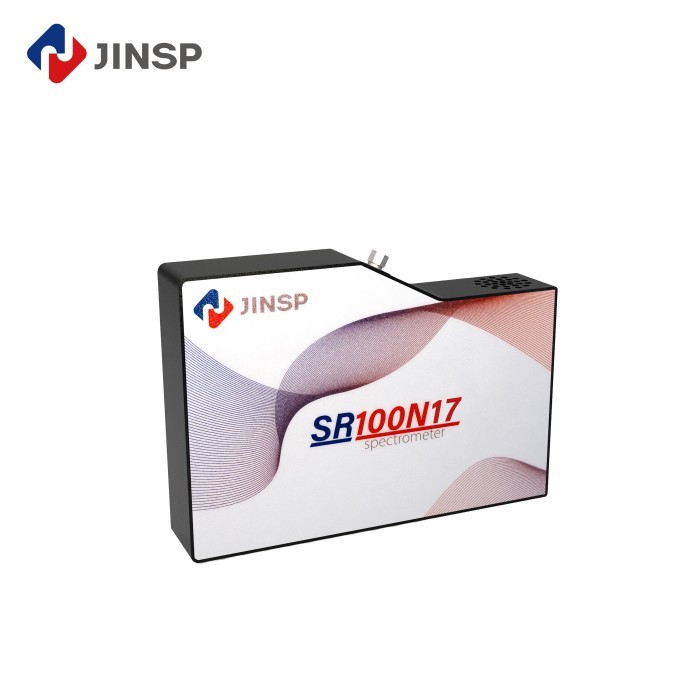

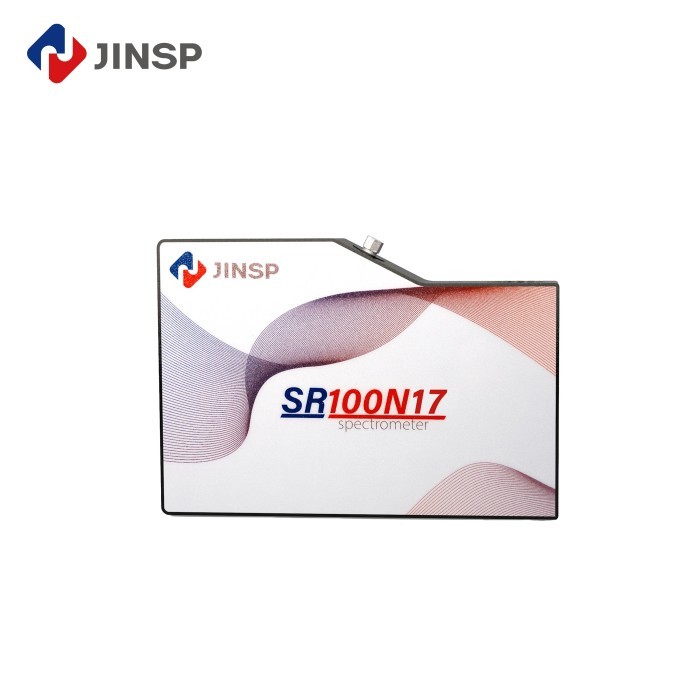

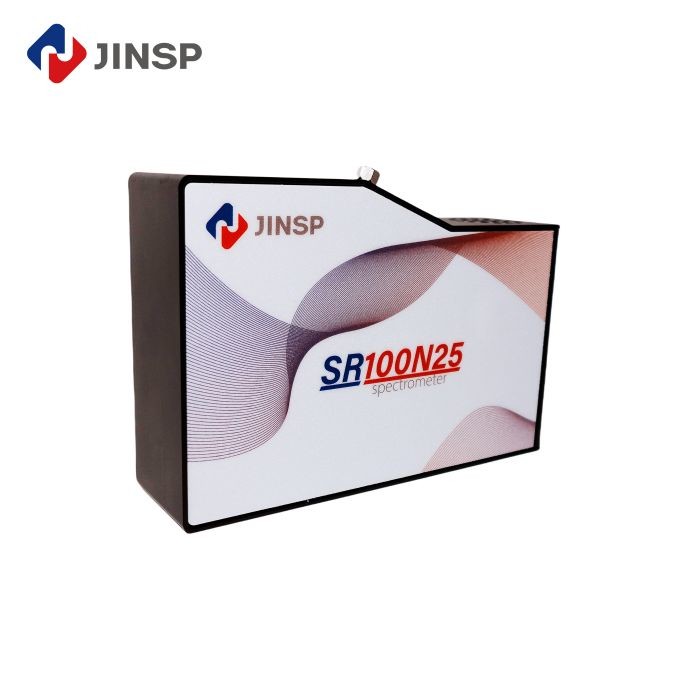

Optimized for NIR applications, the SR100N17 (1.7μm) & SR100N25 (2.5μm) spectrometers use advanced filters to block extraneous light. Their cooled 512-element InGaAs sensor ensures reliable spectral analysis via transmission, reflection, or absorption.

Molecular vibrations stimulated by NIR light (780-2500nm) produce unique spectral signatures. In agricultural testing, overtone effects from functional groups create broad peaks, allowing NIR spectroscopy to simultaneously determine chemical properties and multiple components for quality assessment.

• Near-infrared reflection detection method: Suitable for detecting information on the surface of fruit peels, such as color and luster, but not for internal quality detection.
• Near-infrared transmission detection method: Theoretically applicable to transparent or semi-transparent samples and cannot penetrate fruits. Less used in practical applications.
• Near-infrared diffuse reflection detection method: A measurement method between reflection and transmission, suitable for opaque, solid and semi-solid samples. The obtained spectral information can reflect the characteristics of the internal structure of fruits and is widely used in the detection of internal qualities of fruits (such as sugar content, acidity, etc.).

• Quality assessment: Predict quality parameters such as firmness, sweetness, and acidity of fruits.
• Classification and identification: Distinguish and identify the types of different fruits.
• Functional fruit evaluation and screening: Used to evaluate and screen functional fruits rich in special components.
• Disease monitoring: Can quickly diagnose diseases such as citrus Huanglongbing and provide early warnings for disease prevention and control.

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

• UV VIS NIR fiber optic spectrometers
• Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
• On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc.
