Near Infrared Spectrometer 900nm-2500nm Wavelength Range Modular Fiber Optic Spectrometer

Contact Now

Near Infrared Spectrometer 900nm-2500nm Wavelength Range Modular Fiber Optic Spectrometer

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30-40 working days
Payment Terms :	T/T, Western Union	Supply Ability :	200PCS 30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100N25
Document:	Product Brochure PDF

Detail Information
Type:	Refrigerated Linear Array InGaAs	Effective Pixel:	512
Sensing Area:	12.8mm*0.5mm	Wavelength Range:	900nm-2500nm
Optical Design:	F/4 Cross-type	Optical Resolution:	6.3nm(@25μm)
Highlight:	900~2500nm Fiber Spectrometer , Near infrared Fiber Spectrometer , 2500nm Fiber Spectrometer

Product Description

SR100N25 Cooled Near-Infrared Spectrometer

The JINSP SR100N25 near-infrared refrigerated spectrometers are versatile instruments with applications spanning a broad wavelength range of 0.9 to 1.7μm or 0.9 to 2.5μm. These spectrometers feature integrated light filters that effectively screen out visible light and remove high-order modes, along with a cooled 512-pixel area array InGaAs sensor for high resolution and minimal light stray. Ideal for detecting near-infrared spectra through transmission, reflection, or absorption methods.

Key Specifications

Attribute	Value
Type	Refrigerated linear array InGaAs
Effective Pixel	512
Sensing Area	12.8mm*0.5mm
Wavelength Range	900nm-2500nm
Optical Design	F/4 cross-type
Optical Resolution	6.3nm(@25μm)

Technical Characteristics

512 pixels, cooled type, high resolution, low stray of light
SMA905 fiber input for free space optical acquisition
USB or UART interface for spectrum data output
Gold film plated lens surface for high near-infrared reflection efficiency

Typical Applications

Moisture content measurement and wastewater testing
Substance detection (fat, oil, protein, fiber)
Grain and fodder quality testing
Identification of illegal drug components

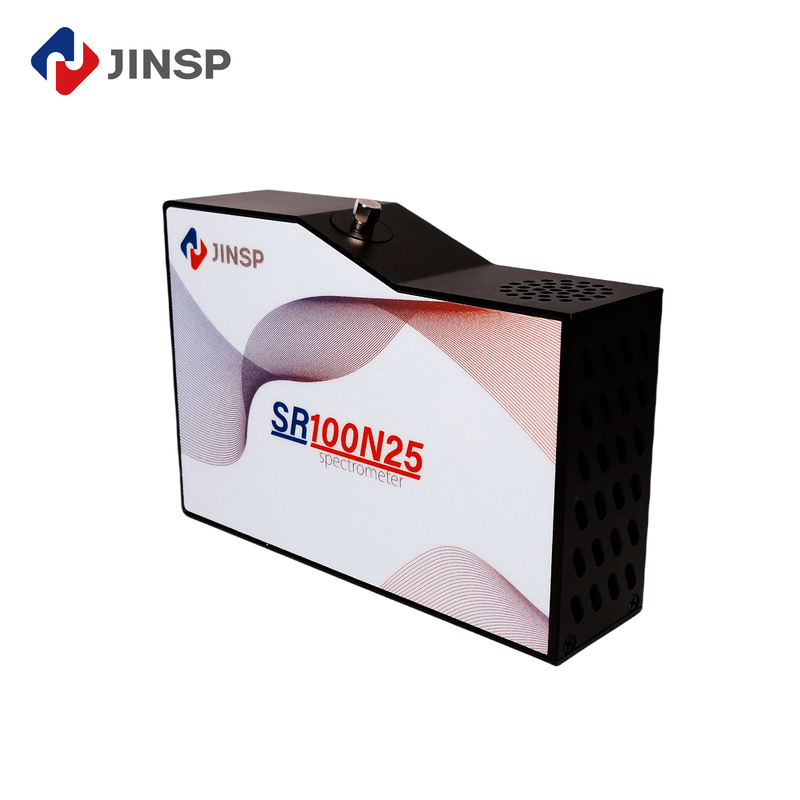

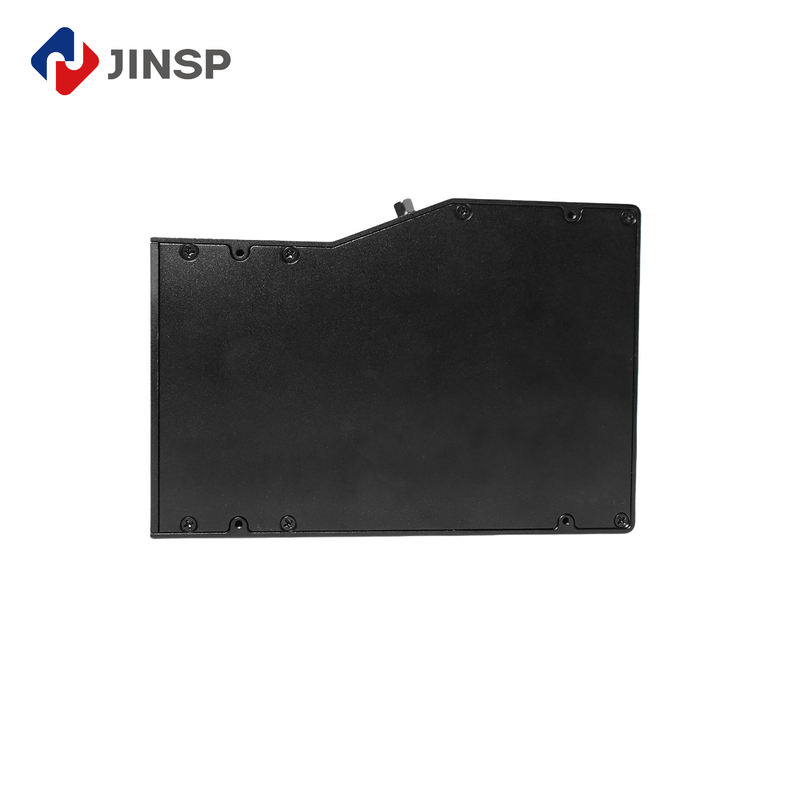

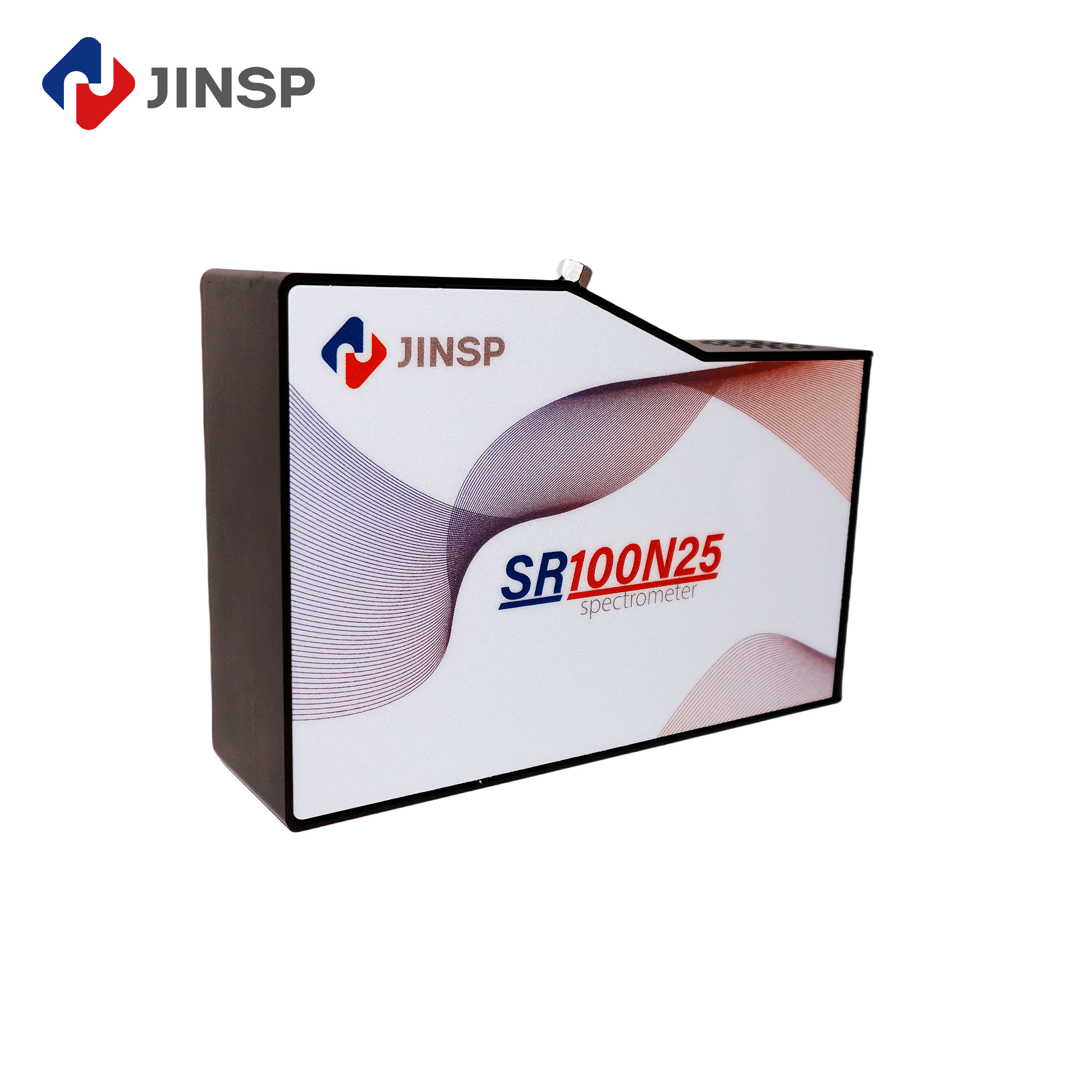

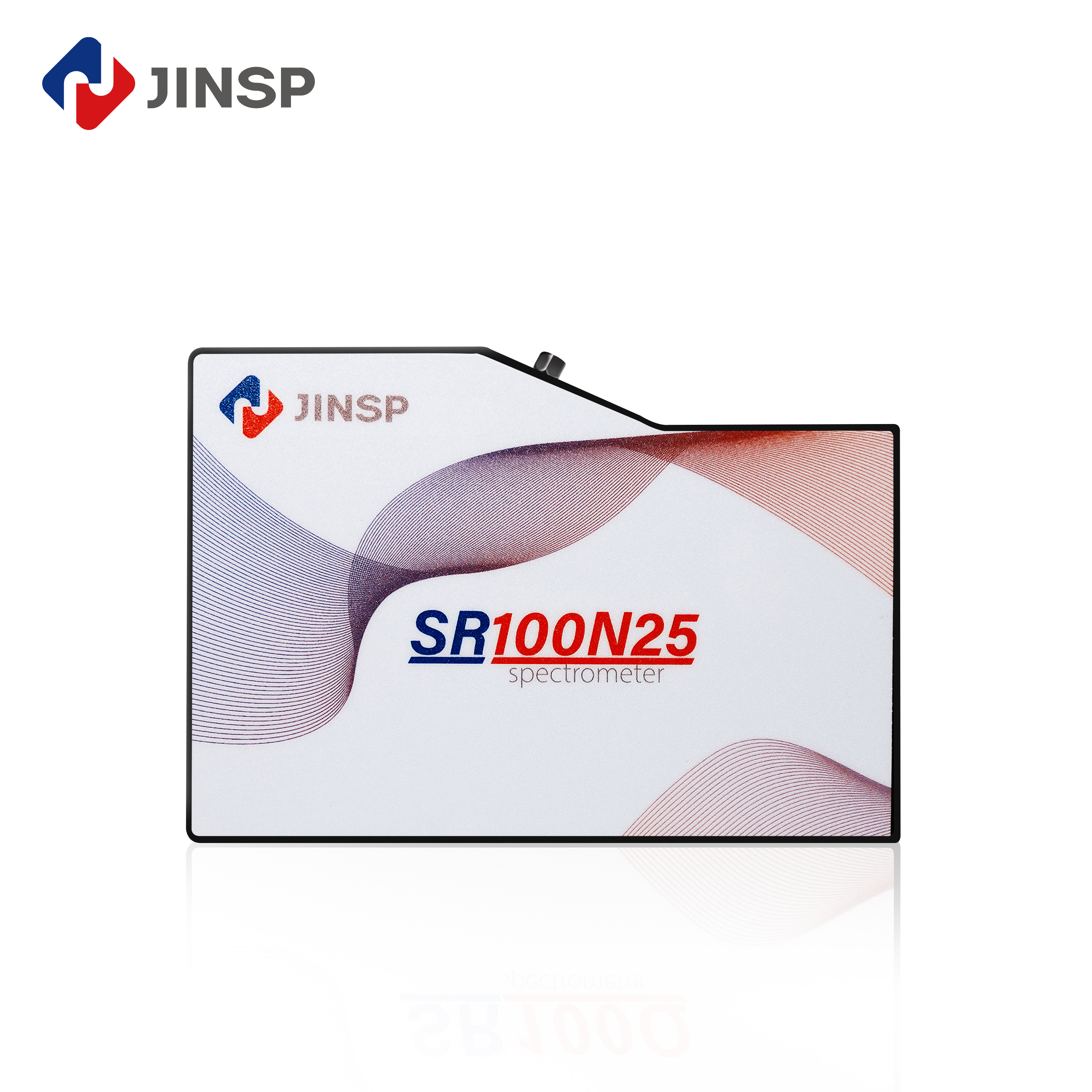

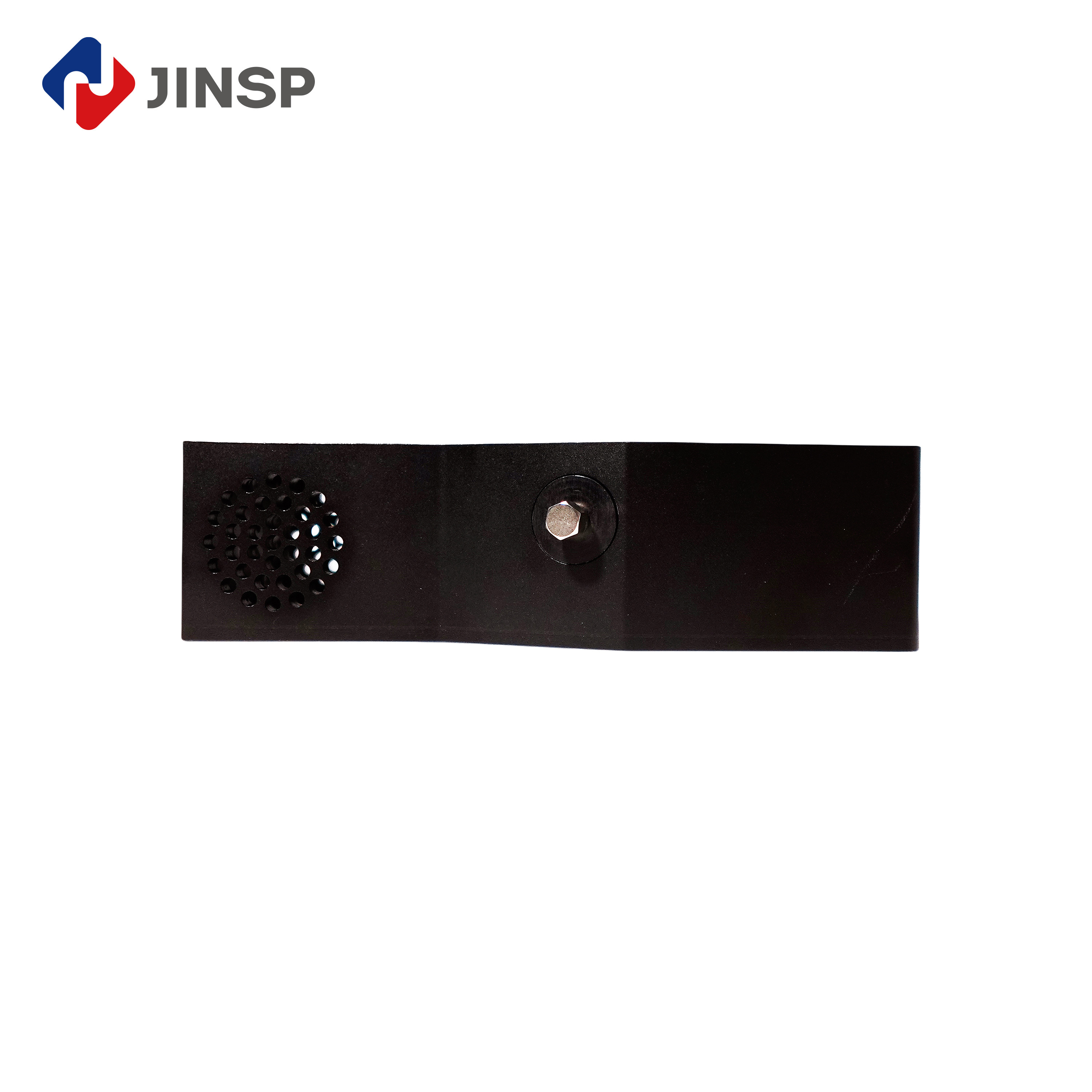

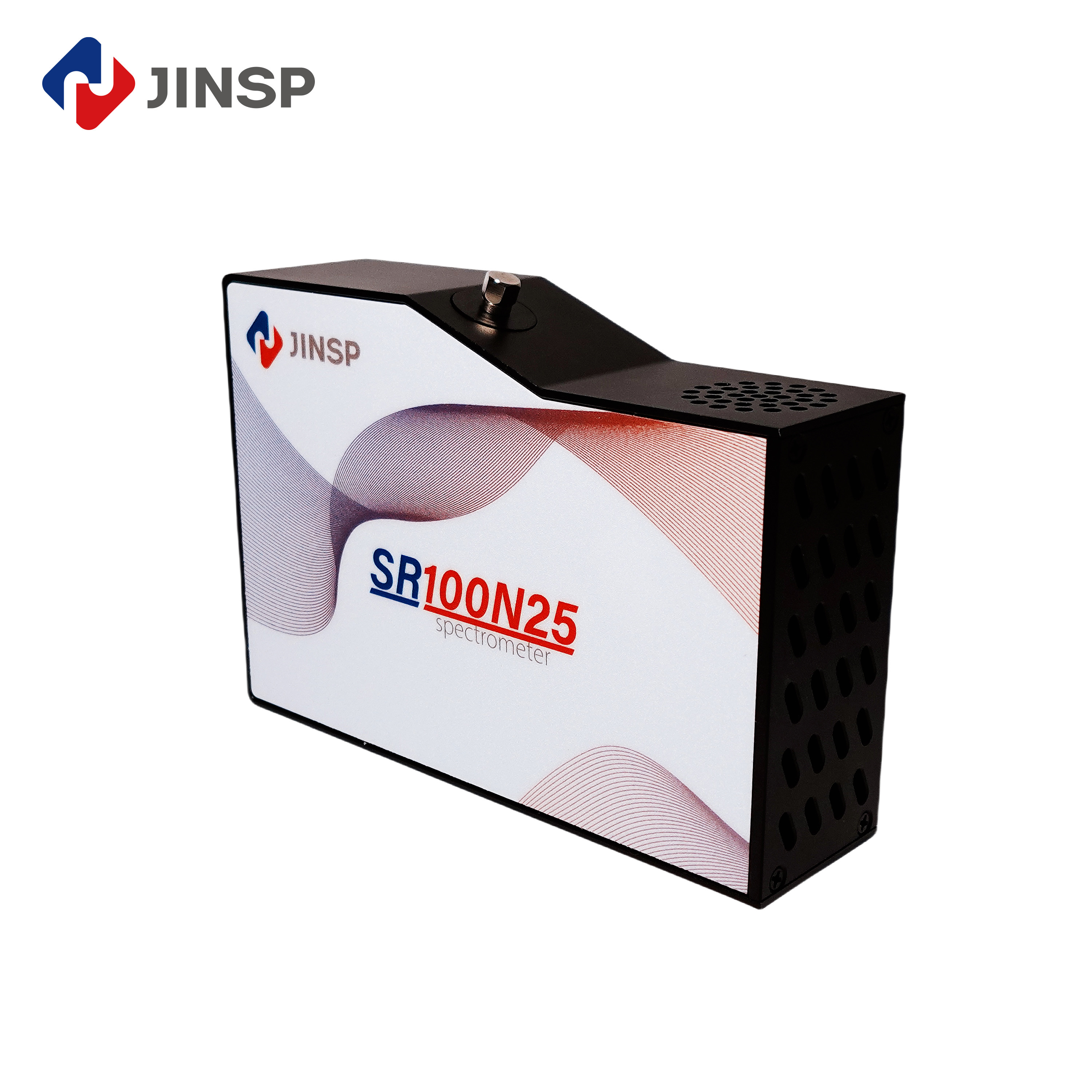

Product Images

Company Profile

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award. Our products have received prestigious awards including the Geneva International Invention Award and Beijing New Technology and New Product Certificate.

As a leading solution provider in molecular spectroscopy, particularly Raman Spectroscopy, our product range includes:

UV VIS NIR fiber optic spectrometers
Desktop/portable Raman analyzers for laboratory/industrial analysis
On-site rapid detectors for drugs, food safety, hazardous materials, and pharmaceuticals

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide an English manual and instructional video, along with professional technical support from our engineers.

Q: Do you offer operation training?

A: We offer both on-site training at our facility and can send engineers to your location for installation, training, and maintenance.

Q: What is your website?

A: Visit us at www.jinsptech.com

Q: What quality assurance do you provide?

A: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
