Lab Online Process Raman Spectroscopy Instruments High Accuracy Multi Channels
Product Specifications
| Attribute |
Value |
| Laser Wavelength |
785nm |
| Wavelength Accuracy |
0.2nm |
| Wavelength Stability |
0.01nm |
| Output Data Format |
Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional |
| Communication Protocols |
Modbus |
| Connectivity |
USB 2.0 |
| Power supply |
100 ~ 240 VAC, 50 ~ 60 Hz |
| Detection Accuracy |
0.5% |
RS2000-4 Four Multi-channel Online Process Raman analyzer
JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production. It enables in-situ, real-time, continuous, and rapid online monitoring of the content of each component in reactions.

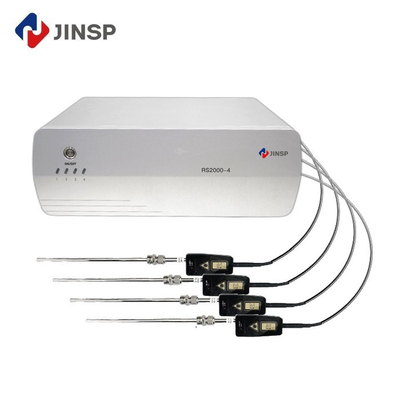

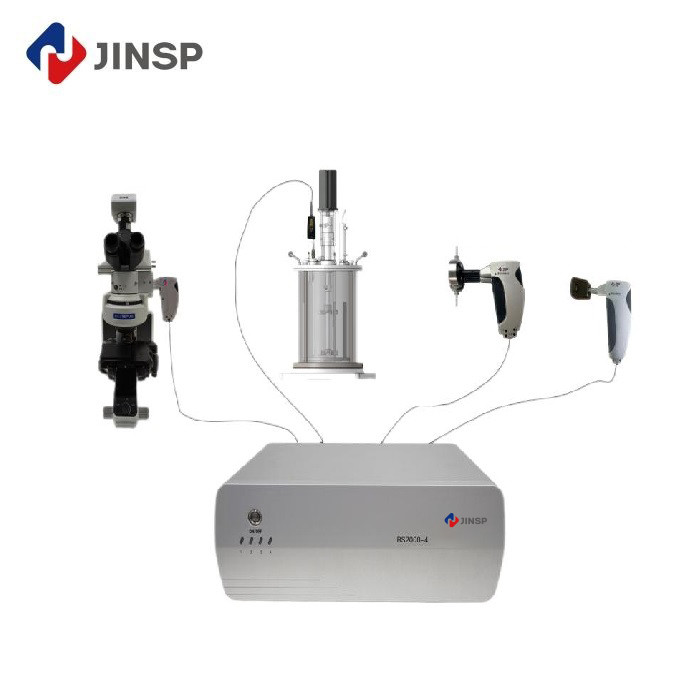

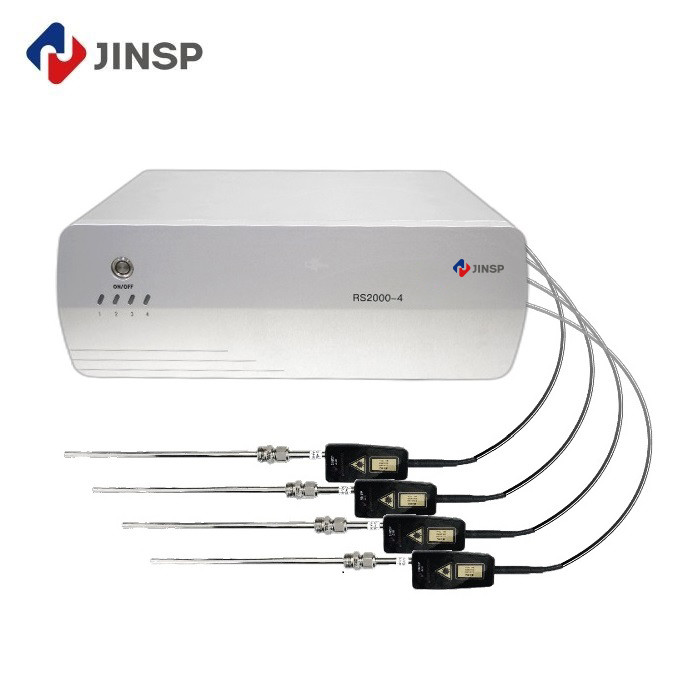

JINSP RS2000A-4 is designed with a 4-channel optical probe for switching online analysis in multiple reaction systems, achieving simultaneous process control for multiple systems.
Chemical/pharmaceutical/materials process development and production requires quantitative analysis of components. Usually, offline laboratory analysis techniques are used, where samples are taken to the laboratory, and instruments such as chromatography, mass spectrometry, and nuclear magnetic resonance spectroscopy are used to give information on the content of each component. The long detection time and low sampling frequency cannot meet many real-time monitoring needs.
Technical Parameters:
| Technical Parameter |
Value |
| Product |
Online Raman Analyzer |
| Measurement Type |
Raman Spectrometer |
| Laser wavelength |
785nm |
| Wavelength accuracy |
0.2 nm |
| Wavelength stability |
0.01 nm |
| Sample Type |
Liquid |
| Number of detection channels |
four-channel switching detection |
| Standard Probe |
1pc 1.3 m non-immersed fiber optic probe (PR100) |
| Software functions |
1. Online Monitoring: Continuous real-time collection of single-channel signals, providing real-time substance content and trend changes, enabling intelligent analysis of unknown components during the reaction process; 2. Data Analysis: Capable of processing data through smoothing, peak finding, noise reduction, baseline subtraction, difference spectra, etc; 3. Model Establishment: establishes a quantitative model using known content samples and automatically builds a quantitative model based on real-time data collected during the reaction process. |
| Power supply |
100 ~ 240 VAC ,50 ~ 60 Hz |
| Operating temperature |
0 ~ 40 ℃ |
| Dimensions |
496x312x185mm |
| N. Weight |
≤10 kg |
Technical Highlights
- Significantly shortens process development duration
- Enhances production efficiency and capacity
- Enables timely intervention in controlling reaction processes
- Reduces product defect rates and minimizes losses
- Provides alarms for abnormal reactions
- Avoids dangerous on-site sampling
Applications
Li-ion battery industry
Research on the synthesis process of bis(fluorosulfonyl)amide
Biopharmaceutical industry
- Drug crystal form research and consistency evaluation
- Quality Control in Biofermentation Engineering
Fine chemical industry
- Research on the process of producing furfuryl alcohol by hydrogenation reaction of furfural
- Process control of bioenzyme catalytic reactions of nitrile compounds
- A certain ultra-low temperature nitrification reaction
- Research on o-xylene nitration reaction process
Analysis of Chemical Reactions/Biological Processes under extreme conditions
Under conditions of strong acids, strong alkalis, high temperature, high pressure, strong corrosion, and toxicity, conventional instrument analysis methods may face challenges in sampling or cannot withstand active samples. However, online monitoring optical probes, specially designed to adapt to extreme reaction environments, stand out as the sole solution.
Typical Users: Researchers involved in extreme chemical reactions at new material companies, chemical enterprises, and research institutes.
Usage Models

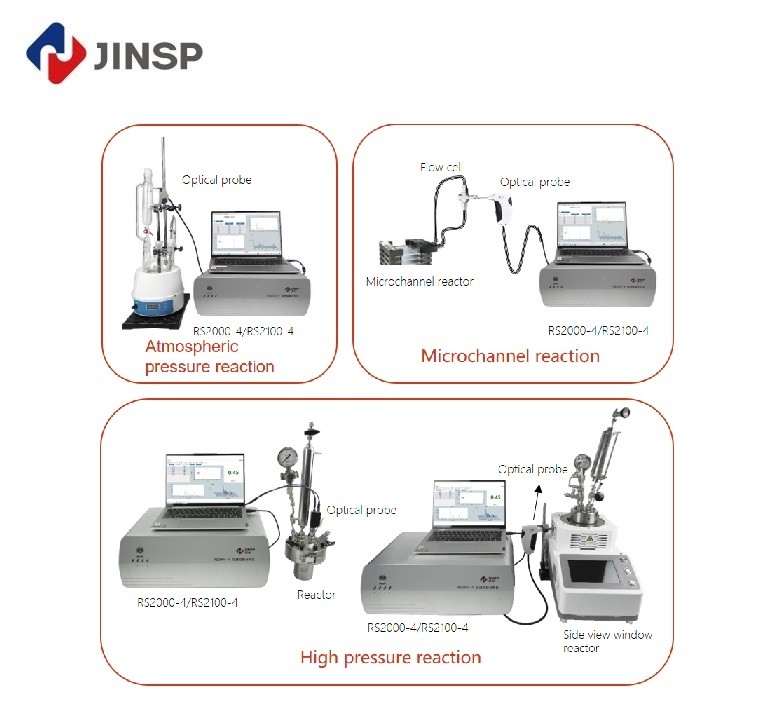

RS2000A-4 has three usage modes in the laboratory, and each mode requires different accessories.
- The first mode uses an immersed long probe that goes deep down to the liquid level of the reaction system to monitor each reaction component. Depending on the reaction vessel, reaction conditions, and system, different specifications of probes are configured.
- The second mode involves using a flow cell to connect a bypass probe for online monitoring, which is suitable for reactors like microchannel reactors. Various probes are configured based on the specific reaction vessel and conditions.
- The third mode utilizes an optical probe directly aligned with the side window of the reaction vessel for reaction monitoring.
Company Introduction
JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.
In addition, JINSP participated in the drafting of several national and international standards, including participating in the drafting of an international standard as the only participating unit in China IEC 63085 International Standard: System of spectral identification of liquids in transparent or semitransparent containers; Drafting of two national standards: GB/T 41086-2021 "General Technical Requirements for Safety Inspection Equipment for Hazardous Chemicals Based on Raman Spectroscopy", GB/T 40219-2021 "General Specification for Raman Spectrometer".
Frequently Asked Questions
Q1: This is the first time I use it, is it easy to operate?
A1: We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support ( installation, training, debugging, maintenance ).
Q3: How to receive the best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.
Q4: If the spectrometer has a problem in my place, what could I do?
A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem may be, according to the client's feedback. We can repair for free within one year warranty.
Q5: What about quality assurance?
A5: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
