Raman Spectroscopy Analyzer Non-distructive In Situ Solution For Chemical Bio-chemical Reactions

Contact Now

Raman Spectroscopy Analyzer Non-distructive In Situ Solution For Chemical Bio-chemical Reactions

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-80 working days
Payment Terms :	TT	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2100
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50W	Detection Accuracy:	0.5%
Highlight:	Non-distructive Raman Spectroscopy Analyzer , Chemical Reactions Raman Spectroscopy Analyzer , Bio-chemical Reactions Raman Spectroscopy Analyzer

Product Description

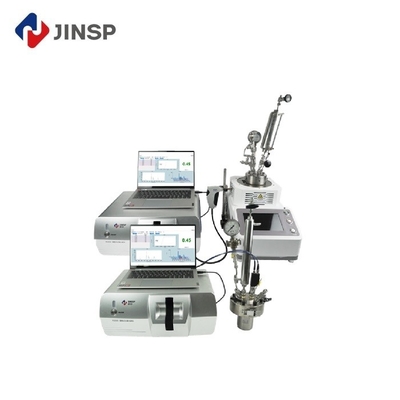

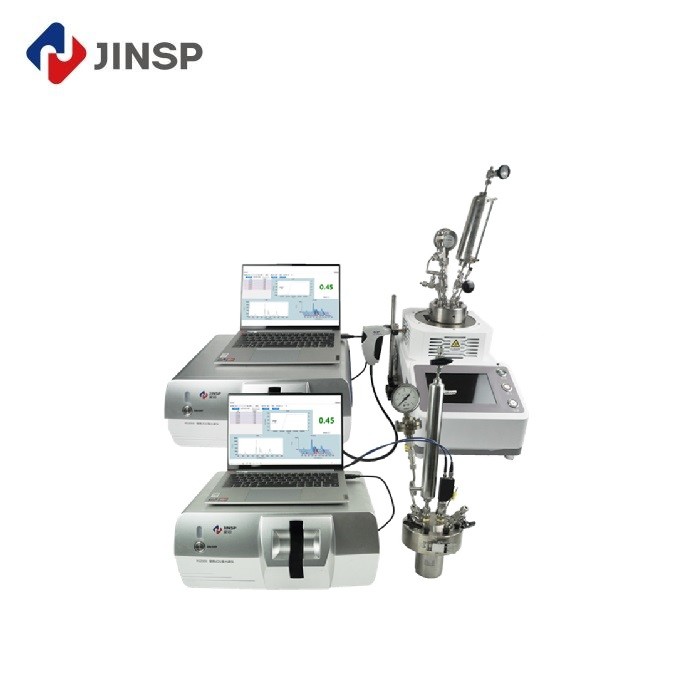

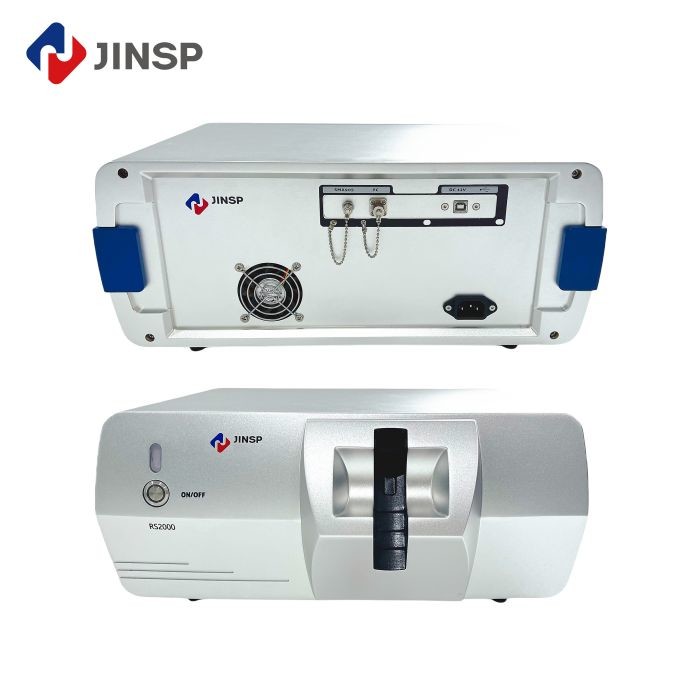

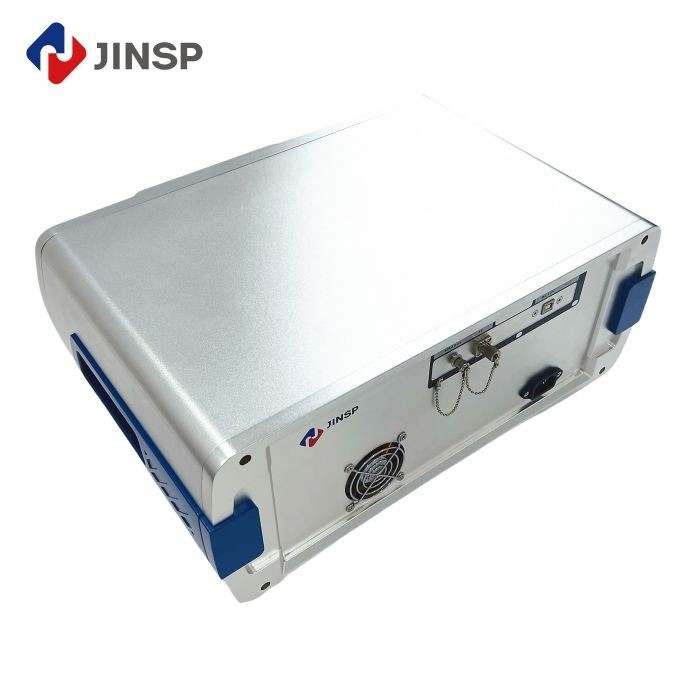

RS2100 Raman Spectroscopy Analyzer

Non-destructive in situ solution for chemical and biochemical reactions with precision performance and industrial durability.

Key Features

Fast Analysis

Results provided within seconds for real-time process monitoring

Non-Invasive

In-situ measurement with no sampling required

Universal Compatibility

Multi-specification detection accessories for different reactors

Intelligent Operation

Supports self-optimizing offline modeling and automatic online modeling

Technical Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	spc standard spectrum, prn, txt and other formats
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50W
Detection Accuracy	0.5%

Product Description

The RS2100 Raman platform delivers precision without compromise. Its gold-standard 1064nm excitation penetrates thick glass/reactor walls with 3X greater signal recovery versus 785nm systems, while hermetically sealed optics endure 98% H2SO4 vapor exposure. The integrated calibration wizard automates CFR21 Part 11-compliant validation workflows.

For biologics developers, traditional offline analytics disrupt critical cell culture processes. JINSP's non-invasive glucose/lactate tracking maintains sterility while providing continuous metabolic maps - enabling bioprocess engineers to optimize feeding strategies and double monoclonal antibody titers.

Standard Configuration

1pc 1.3 m non-immersed fiber optic probe (PR100)
1pc 5 m immersed probe (PR200-HSGL)

Software Capabilities

Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
Data Analysis: Processing through smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
Model Establishment: Quantitative modeling using known content samples and automatic model building from real-time data

Physical Specifications

Dimensions: 300x356x185mm
Net Weight: ≤10 kg
Certifications: CE ISO9001

Applications

Li-ion battery industry
Biopharmaceutical industry and drug crystal form research
Quality Control in Biofermentation Engineering
Fine chemical industry process research
Process control of bioenzyme catalytic reactions

Usage Modes

Immersed long probe for liquid level monitoring
Flow cell with bypass probe for microchannel reactors
Optical probe aligned with reaction vessel side window

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 30+ R&D engineers and 200+ patents, JINSP offers over twenty spectroscopic products exported to 30+ countries with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide an English manual and guide video, plus professional technical support meetings.

Q: Do you offer operation training?

A: Training is available at our factory or on-site by JINSP engineers/local distributors.

Q: How can I get the best price quickly?

A: Provide detailed application, installation, and environment requirements with your inquiry.

Q: Is there a minimum order quantity?

A: No MOQ - we support orders for even single units.

Q: What is the product warranty?

A: 1 year standard warranty, extendable with additional cost.
