Product Description
Laboratory Online Raman Analyzer for Chemical Liquid Reactions
Online Raman Analyzers are for online analysis of reaction processes.
It has been used for research on reaction mechanisms, dynamics, and crystal forms, as well as for process development and optimization, production process monitoring, and achieving precise process control.

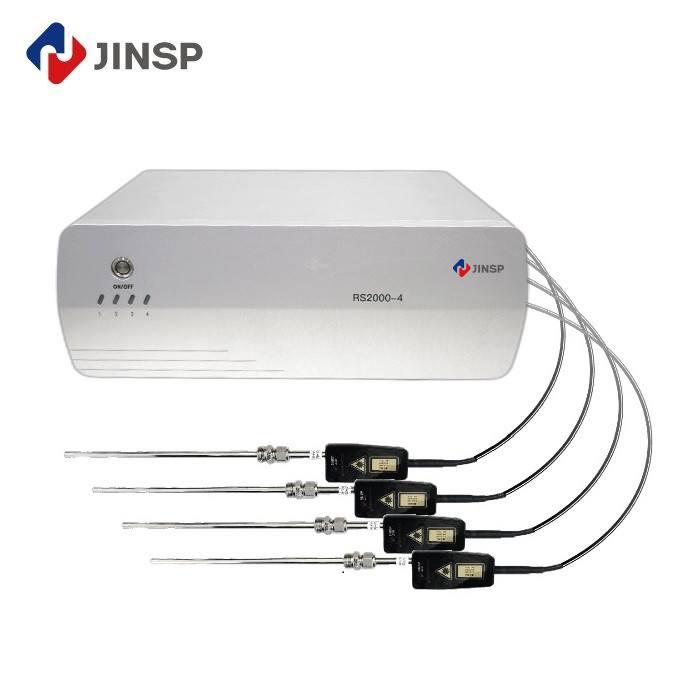

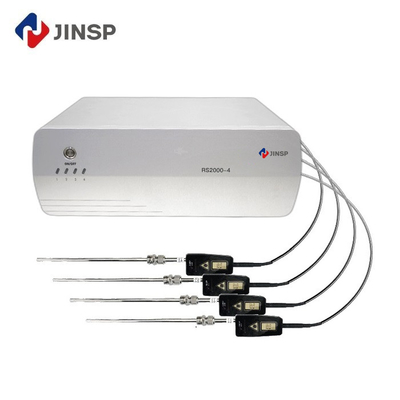

JINSP RS2000-4 is designed with a 4-channel optical probe for switching online analysis in multiple reaction systems, achieving simultaneous process control for multiple systems.
JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production. It enables in-situ, real-time, continuous, and rapid online monitoring of the content of each component in reactions.
Chemical/pharmaceutical/materials process development and production requires quantitative analysis of components. Usually, offline laboratory analysis techniques are used, where samples are taken to the laboratory, and instruments such as chromatography, mass spectrometry, and nuclear magnetic resonance spectroscopy are used to give information on the content of each component. The long detection time and low sampling frequency cannot meet many real-time monitoring needs.
Technical Parameters:
|
Technical Parameter
|
Value
|
|
Product
|
Online Raman Analyzer
|
|
Measurement Type
|
Raman Spectrometer
|
|
Laser wavelength
|
785nm
|
|
Wavelength accuracy
|
0.2 nm
|
|
Wavelength stability
|
0.01 nm
|
|
Sample Type
|
Liquid
|
|
Number of detection channels
|
four-channel switching detection
|
|
Standard Probe
|
1pc 1.3 m non-immersed fiber optic probe (PR100)
|
|
Software functions
|
1. Online Monitoring: Continuous real-time collection of single-channel signals, providing real-time substance content and trend changes, enabling intelligent analysis of unknown components during the reaction process;
2. Data Analysis: Capable of processing data through smoothing, peak finding, noise reduction, baseline subtraction, difference spectra, etc;
3. Model Establishment: establishes a quantitative model using known content samples and automatically builds a quantitative model based on real-time data collected during the reaction process.
|
|
Power supply
|
100 ~ 240 VAC ,50 ~ 60 Hz
|
|
Operating temperature
|
0 ~ 40 ℃
|
|
Dimensions
|
496x312x185mm
|
|
N. Weight
|
≤10 kg
|
Advantages:
- Fast: Results provided within seconds
- In-situ: No sampling required
- Universal: Multi-specification detection accessories compatible with different reactors
- Intuitive: Real-time display of multi-component trend changes such as raw materials and products.
- Intelligent: Supports self-optimizing offline modeling and fully automatic online modeling.
Applications:
Li-ion battery industry
Research on the synthesis process of bis(fluorosulfonyl)amide
Biopharmaceutical industry
Drug crystal form research and consistency evaluation
Quality Control in Biofermentation Engineering
Fine chemical industry
Research on the process of producing furfuryl alcohol by hydrogenation reaction of furfural
Process control of bioenzyme catalytic reactions of nitrile compounds
A certain ultra-low temperature nitrification reaction
Research on o-xylene nitration reaction process
Usage models:

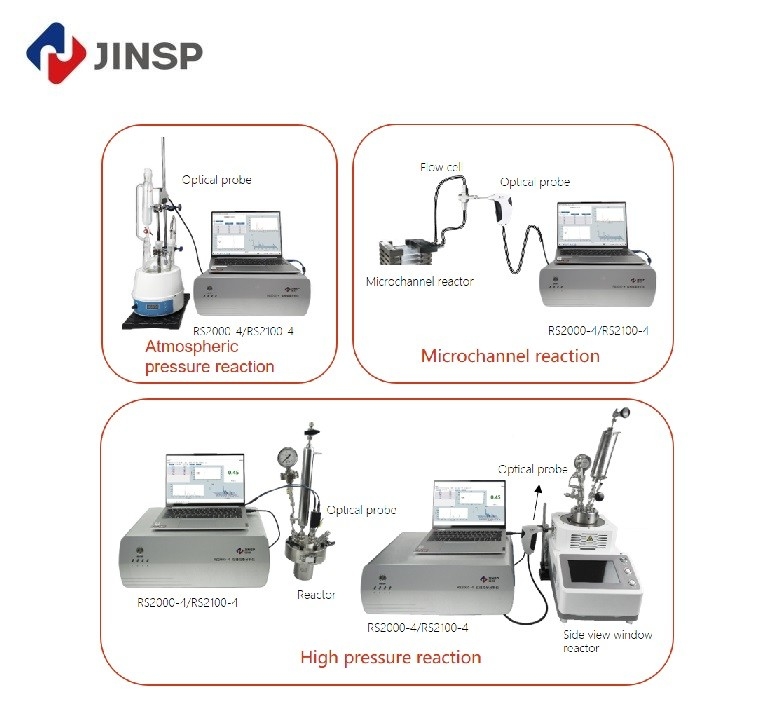

RS2000-4 has three usage modes in the laboratory, and each mode requires different accessories.
1. The first mode uses an immersed long probe that goes deep down to the liquid level of the reaction system to monitor each reaction component. Depending on the reaction vessel, reaction conditions, and system, different specifications of probes are configured.
2. The second mode involves using a flow cell to connect a bypass probe for online monitoring, which is suitable for reactors like microchannel reactors. Various probes are configured based on the specific reaction vessel and conditions.
3. The third mode utilizes an optical probe directly aligned with the side window of the reaction vessel for reaction monitoring.
FAQ:
Q1: This is the first time I use it, is it easy to operate?
A1: We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support ( installation, training, debugging, maintenance ).
Q3: How to receive the best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.
Q4:If the spectrometer has a problem in my place, what could I do?
A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem may be, according to the client's feedback. We can repair for free within one year warranty.
Q5: What about quality assurance?
A5:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
