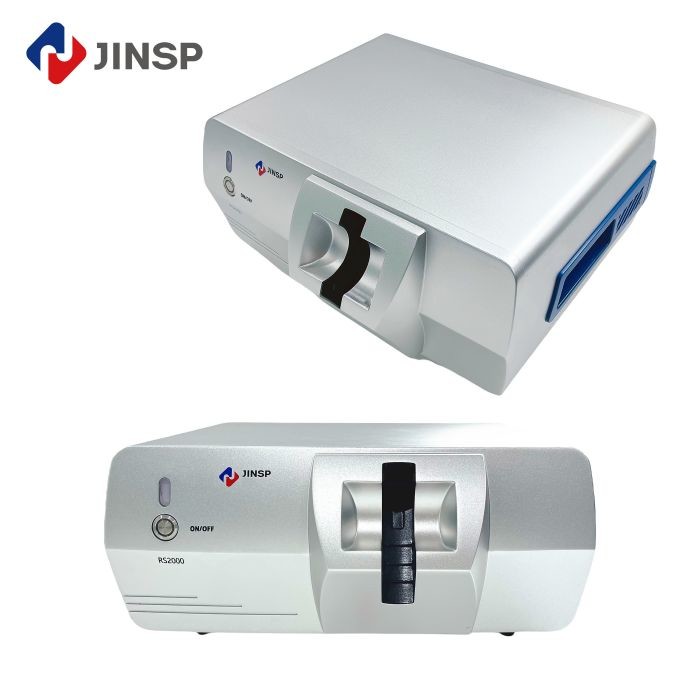

High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
Contact Now

High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 60-80working days
Payment Terms : TT Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: RS2000
Document: Product Brochure PDF

Detail Information
Laser Wavelength: 785nm Wavelength Accuracy: 0.2nm
Wavelength Stability: 0.01nm Connectivity Interface: USB 2.0
Output Data Format: Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional Communication Protocols: Modbus
Power Supply: 100 ~ 240 VAC，50 ~ 60 Hz Operating Temperature: 0 ~ 40 ℃
Power Consumption: 50 W Detection Accuracy: 0.01%
Highlight:

High Sensitivity Raman Spectroscopy Machine

,

Raman Spectroscopy Machine 785nm

,

785nm raman spectroscopy detector

Product Description

High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication
Key Specifications
Laser wavelength 785nm
Wavelength accuracy 0.2nm
Wavelength stability 0.01nm
Connectivity interface USB 2.0
Output Data format spc standard spectrum, prn, txt and other formats
Communication protocols Modbus
Power supply 100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature 0 ~ 40 ℃
Power consumption 50 W
Detection Accuracy 0.01%
Product Overview

The JINSP RS2000 is a cutting-edge Raman spectroscopy machine designed for precise in-situ, real-time monitoring in chemical, pharmaceutical, and materials processing industries. This advanced instrument enables continuous online monitoring of reaction components, providing immediate feedback for process optimization and quality control.

Technical Parameters
Product Online Raman Analyzer
Measurement Type Raman Spectrometer
Sample Type Liquid
Number of detection channels 1 single channel

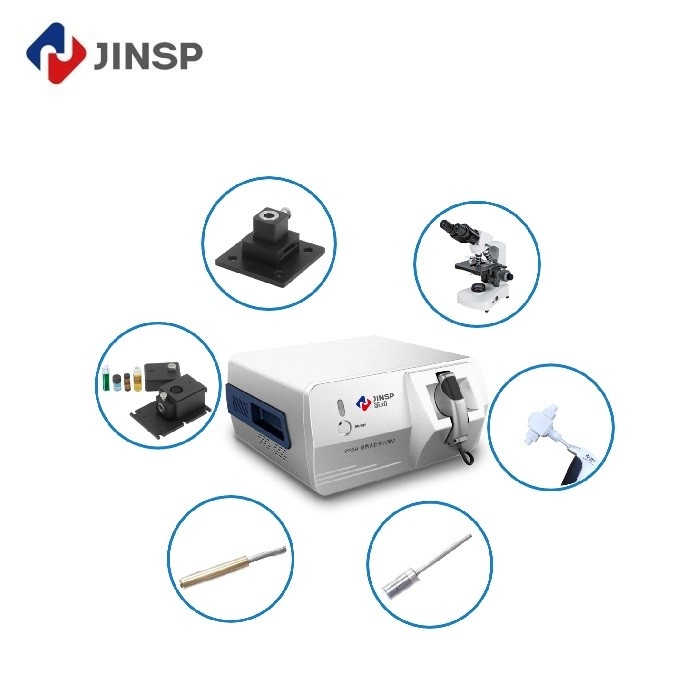

Standard Probe 1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL)
Dimensions 496x312x185mm
Net Weight ≤10 kg
Certifications CE ISO9001
Software Capabilities
  • Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
  • Data Analysis: Processing capabilities including smoothing, peak finding, noise reduction, and baseline subtraction
  • Model Establishment: Automatic quantitative model building using known content samples and real-time data
Key Advantages
  • Accelerates process development and time-to-market
  • Enhances production efficiency and capacity
  • Enables real-time process control and intervention
  • Reduces product defect rates and associated losses
  • Provides alarms for abnormal reactions
  • Eliminates dangerous on-site sampling requirements
Industrial Applications
  • Li-ion battery industry research
  • Biopharmaceutical drug crystal form research
  • Quality control in biofermentation engineering
  • Fine chemical process research (hydrogenation, nitration, etc.)
  • Process control of bioenzyme catalytic reactions

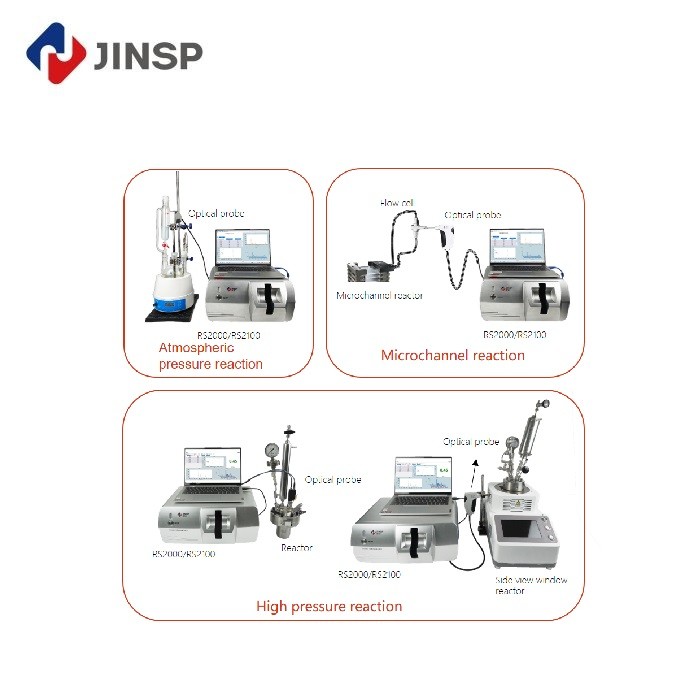

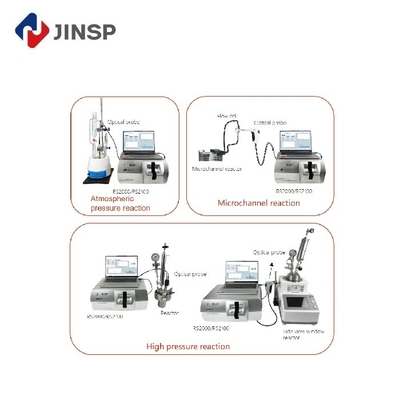

Usage Modes
  1. Immersed long probe for direct liquid level monitoring
  2. Flow cell with bypass probe for microchannel reactors
  3. Optical probe aligned with reaction vessel side window
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 0
Product Images
High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 1 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 2 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 3 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 4 High Sensitivity Raman Spectroscopy Machine 785nm With Modbus Communication 5
Frequently Asked Questions
Q1: Is this machine easy to operate for first-time users?
A1: We provide an English manual and instructional video, along with professional technical support from our technicians.
Q2: Do you offer operation training?
A2: Training is available at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.
Q3: How can I receive the best price quickly?
A3: Please provide detailed specifications (wavelength, detector, pixels, focal length, etc.) in your inquiry for an accurate quotation.
Q4: What if the spectrometer has problems during operation?
A4: The spectrometer comes with a one-year warranty. Our technicians will diagnose and repair any issues at no cost during this period.
Q5: What quality assurance do you provide?
A5: All products undergo rigorous quality inspection before shipment, and we can provide inspection photos upon request.
