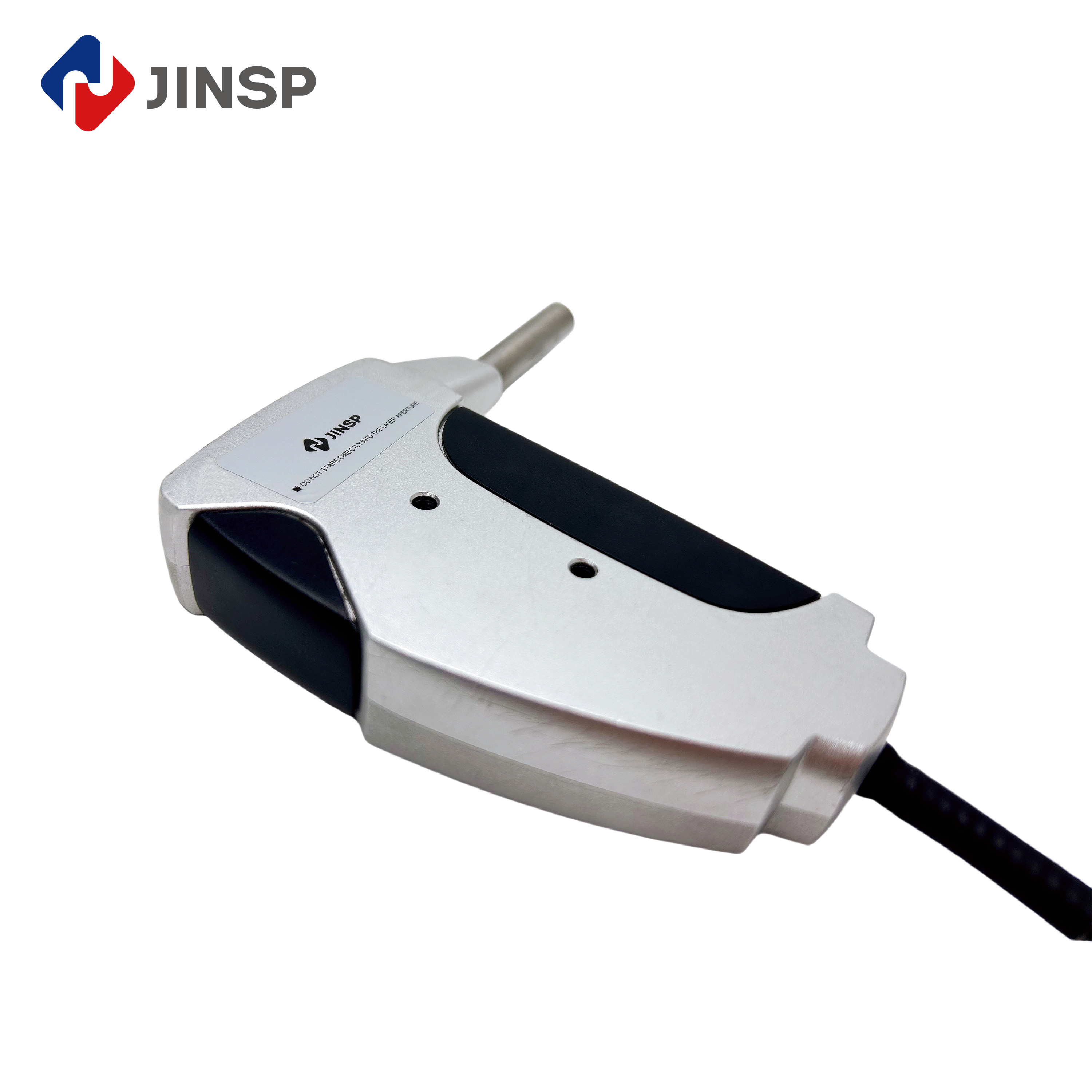

Flexible PR100 Raman Fiber Optic Probe for Micro-Spectroscopy
Key Specifications
| Attribute |
Value |
| Probe tube material |
See item table |
| Outer diameter |
10 mm |
| Probe tube length |
80 mm |
| Fiber optic cable |
1.3 m PVC jacketed as standard, 3 m or 5 m length are optional |
Customizable Raman Probe for Precise Systems Analysis
Our optical probe delivers exceptional performance with specialized optical design for high collection efficiency, ensuring precise measurements in challenging conditions. Built to endure extreme temperatures, high pressure, and corrosive environments, it is ideal for demanding industrial applications. Customizable in interface, length, and material, it adapts seamlessly to your monitoring needs.
Paired with our versatile flow cell, which supports multiple materials and optimized optical paths, this system guarantees superior signal capture. Compatible with various pipeline interfaces, it excels in high-temperature, high-pressure, and corrosive systems, offering reliable sealing and easy integration.
Product Models and Technical Parameters
|
PR100 |
PR200 |
PR201 |
PR202 |
PR300 |
|
Optical Probe |
LAB Immersion Probe |
LAB Immersion Probe |
LAB Immersion Probe |
Industrial Immersion Probe |
| Probe Tube Material |
304 stainless steel |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
316L stainless steel, resistant to SIP/CIP sterilization |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
|
| Outer Diameter |
10mm |
10mm |
16mm |
12mm |
60mm |
| Probe Tube Length |
80mm |
350 mm (Customizable 100-350 mm) |
270 mm (Customizable 100-1000 mm) |
120 mm (Customizable 120-320 mm) |
1.9 m (Customizable 1-3 m) |
| Spectral Range |
200-3900 cm-1 (532 nm or 785 nm excitation wavelength)
230-3100 cm-1 (1064 nm excitation wavelength)
|
| Temperature Range |
0ºC-100ºC |
-40ºC-200ºC |
-40ºC-150ºC |
-30ºC-200ºC |
-60ºC-200ºC |
| Maximum Pressure |
Ambient condition |
30 MPa |
30 MPa |
1 MPa |
30 MPa |
Technical Highlights
- Multiple material options available for various process conditions
- Compatible with different pipeline specifications
- Special optical design maximizes collection efficiency and Raman intensities
- Excellent sealing and convenient connection
Applications
The PR100 Raman probe is a compact, lightweight solution for offline laboratory analysis, supporting 532 nm, 785 nm, and 1064 nm excitation wavelengths. Ideal for liquid and solid sample measurements, it integrates seamlessly with sample chambers or microscopes for Raman micro-spectroscopy. Additionally, it can be paired with flow cells and side-view reactors for real-time reaction monitoring.
The PR200/PR201/PR202 series offers versatile in-situ monitoring solutions for small-scale laboratory reactions. These immersion probes can be directly inserted into reaction vessels, providing real-time process analysis. A specialized design variant minimizes interference when monitoring stirred or suspended solutions.
The PR300 series delivers robust performance in demanding industrial settings, engineered to operate reliably under extreme temperature and pressure conditions. Featuring a protective design that safeguards optical components, these probes utilize a flanged connection system ideal for reactor vessel monitoring.
Support and Services
- Assistance with product installation, setup, and calibration
- Troubleshooting and diagnosis of any issues
- Regular maintenance and cleaning recommendations
- Access to software updates and upgrades
- Product training and education
- Technical consultation with experienced support staff
Frequently Asked Questions
What is the minimum order quantity for the JINSP Raman Probe?
The minimum order quantity is 1PC.
What is the price of the JINSP Raman Probe?
The price is negotiable.
What payment terms are accepted?
Accepted payment terms are T/T and Western Union.
What is the delivery time?
The delivery time is 40-70 working days.
Where is the JINSP Raman Probe manufactured?
All Raman Probes are designed and manufactured in China.
