The Raman Probe is equipped with three excitation wavelengths: 532 nm, 785 nm, and 1064 nm, making it a versatile option for a wide range of applications. The probe is also compatible with the flow cell, ensuring easy integration with your existing equipment.
Our Raman Probe is not only durable and versatile, but also flexible in terms of customization. The interface, length, and material can be customized according to your specific monitoring needs. This means you can tailor the Raman Probe to suit your particular application, ensuring the most accurate and reliable data possible.
Product table list and parameters:
| / |
PR100 |
PR200 |
PR201 |
PR202 |
PR300 |
| / |
Optical Probe |
LAB Immersion Probe |
LAB Immersion Probe |
LAB Immersion Probe |
Industrial Immersion Probe |
| Probe Tube Material |
304 stainless
steel |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
316L stainless steel, resistant to SIP/CIP
sterilization |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
| Outer Diameter |
10mm |
10mm |
16mm |
12mm |
60mm
Support customizing |
| Probe Tube Length |
80mm |
350 mm
Support customizing from 100 mm ~ 350 mm |
270 mm
Support customizing from 100 mm ~ 1000 mm |
120 mm
Support customizing from 120mm ~ 320 mm |
1.9 m
Support customizing from 1 m ~ 3 m |
| Spectral Range |
200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength)
230 ~ 3100 cm-1 (1064 nm excitation wavelength) |
| Sample Type |
Any sample type |
L (clear liquid) or S (opaque or turbid liquid) or C (slurries or semi-solids) |
| Fiber Optic Cable |
1.3 m PVC jacketed as standard, 3 m or 5 m length are optional |
5 m as standard ,10 m, 50 m or 100 m length are optional; PVC jacket as standard, TPU or silica gel jacket are optional |
50 m
Support customizing |
| Temperature Range |
0ºC ~ 100 ºC |
-40ºC ~ 200 ºC |
-40 ºC ~ 150 ºC |
-30 ºC ~ 200 ºC |
-60 ºC ~ 200 ºC |
| Maximum Pressure |
ambient condition |
30 MPa |
30 MPa |
1 MPa |
30 MPa |
| Corrosion Resistance |
Not resistant to corrosive liquid |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
pH range: 1-14 |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic
solution |
Optical Fiber
Configuration |
100 μm excitation fiber, 200 μm collection fiber, N.A. 0.22 |
| Filter Efficiency |
OD6, customizing is available |
| Connection Interface |
FC and SMA |
Technical Highlights:
- A variety of materials are available as options. Flow cells are suitable for processes under high temperature, high pressure, or with strong acid/alkali,etc.
- With different specifications of interface, flow cells can be coupled with pipelines of different specifications.
- Special optical design to maximize collection efficiency and Raman intensities.
- Good sealing and convenient connection.
Applications:

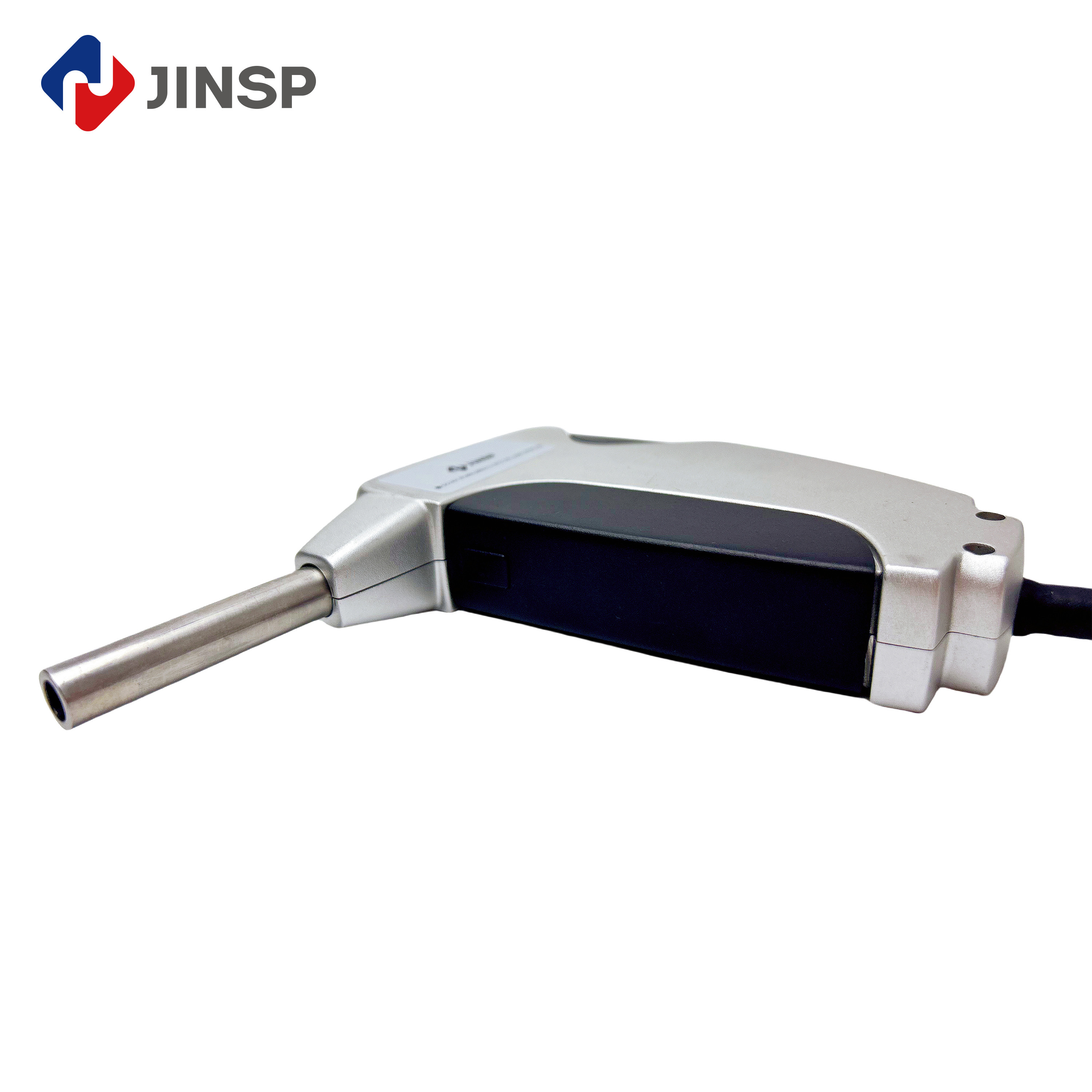

JINSP PR100 Raman Probe is a high-quality product that can be used in various industrial applications. It is a flexible and efficient instrument that can be customized according to monitoring needs. This product has a special optical design that ensures high collection efficiency, making it the perfect choice for routine measurements of liquids and solids in conjunction with a sample chamber.
The JINSP PR100 Raman Probe is suitable for a variety of product application occasions and scenarios. It is an ideal choice for instrumentation for industrial Ethernet communication, advanced industrial online instruments, digital sensors, and field instruments. The temperature range of this product is 0 ~ 100 ºC, which makes it suitable for use in various industrial environments.

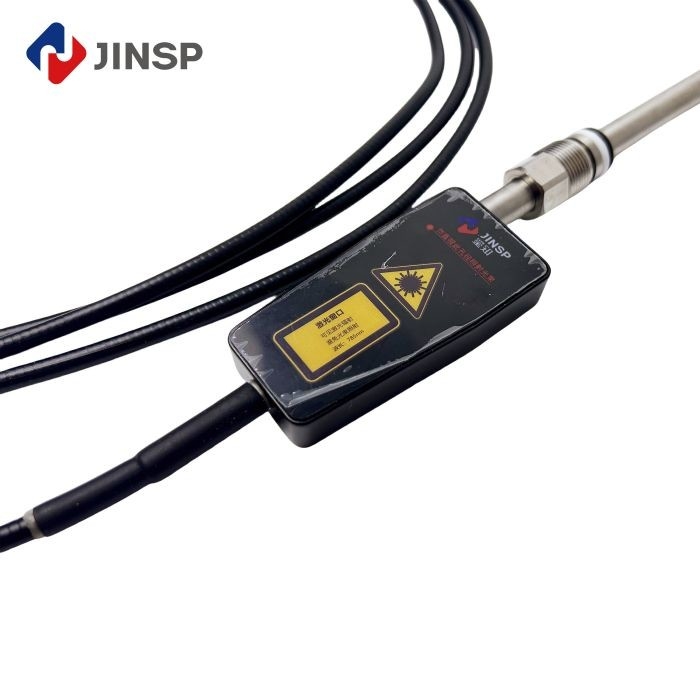

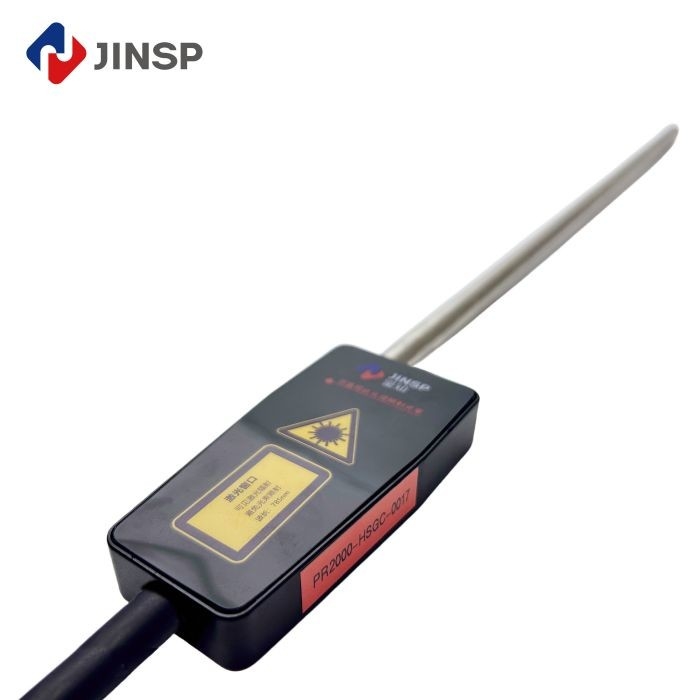

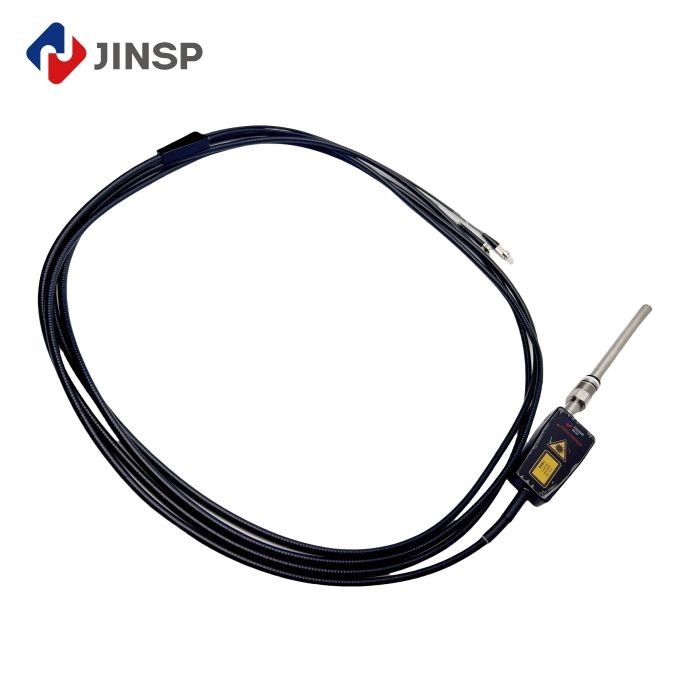

PR200/PR201/PR202 immersion probes are used for in situ process analysis in lab research. They can be flexibly installed in different types of reaction vessels, with probe tube in direct contact with the sample. Optimized version for suspension/semi-solids analysis is also available, which can effectively reduce optical interference from solid components.
PR200/PR201 probes are corrosion-resistant and suitable for monitoring chemical reactions in extreme environments.
PR200 is designed to interface with small ports, while PR201 is designed for medium ports on chemical reactors.
PR202 probes are suitable for biological process monitoring. The probe tube can be removed for sterilization. PR202 is designed to interface with a PG13.5 threaded port on the bioreactor.
The PR300 industrial immersion probe is suitable for most industrial environments, can withstand extremely high temperatures and pressures, and protects optical components from extreme environments. The flanged connection method is suitable for industrial production monitoring of kettle-type reactions. The pressure-resistant and anti-corrosion design can meet the demanding requirements of production monitoring under harsh working conditions. Flange size can be customized according to needs.
Support and Services:
- The Raman Probe product technical support and services include:
- Assistance with product installation, setup, and calibration
- Troubleshooting and diagnosis of any issues or errors
- Regular maintenance and cleaning recommendations
- Access to software updates and upgrades
- Product training and education
- Technical consultation with experienced support staff
FAQ:
Q: What is the minimum order quantity for the JINSP Raman Probe ?
A: The minimum order quantity for the JINSP Raman Probe is 1PC.
Q: What is the price of the JINSP Raman Probe?
A: The price of the JINSP Raman Probe is negotiable.
Q: What payment terms are accepted for the JINSP Raman Probe ?
A: The accepted payment terms for the JINSP are T/T and Western Union.
Q: What is the delivery time for the JINSP Raman Probe?
A: The delivery time for the JINSP Raman Probe is 40-70 working days.
Q: Where is the JINSP Raman Probe manufactured?
A: All Raman Probe is designed and manufactured in China.
