Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof
Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof
Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof
Contact Now

Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof

Minimum Order Quantity : 5 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 60-80 WORKING DAYS
Payment Terms : T/T, Western Union Supply Ability : 100PCS/60-80 WORKING DAYS
Place of Origin: CHINA Brand Name: JINSP
Certification: ISO9001 Model Number: PR100 PR200 PR300
Document: Product Brochure PDF

Detail Information
High Collection Efficiency: Special Optical Design Ensures High Collection Efficiency Raman Micro-spectroscopy: Can Be Used With A Microscope
Temperature Range: 0 ~ 100 ºC Corrosion Resistance: Not Resistant To Corrosive Liquid
Warranty: One Year Warranty Probe Tube Length: 80 Mm
Online Monitoring: Enables Online Monitoring In Continuous Flow Reaction Systems Or Kettle-type Reactions With An Automated Sampler Product Category: Industrial Online Instruments
Highlight:

Raman Fiber Probe 80Mm Length

,

Corrosion Proof Raman Fiber Probe

,

80Mm Length raman spectroscopy probe

Product Description

Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof
Key Features
High Collection Efficiency Special optical design ensures high collection efficiency
Raman Micro-spectroscopy Can be used with a microscope
Temperature Range 0 ~ 100 ºC
Corrosion Resistance Not Resistant To Corrosive Liquid
Warranty One year warranty
Probe Tube Length 80 Mm
Online Monitoring Enables online monitoring in continuous flow reaction systems or kettle-type reactions with an automated sampler
Product Category Industrial Online Instruments
Product Description

The Raman Probe is made of 304 stainless steel, known for its durability and corrosion resistance. Designed to withstand harsh industrial environments, it features excitation wavelengths of 532 nm, 785 nm, and 1064 nm for versatile applications.

This compact and lightweight probe is ideal for routine measurements of liquids and solids when used with a sample chamber. The 80mm probe tube length and standard 1.3m PVC jacketed fiber optic cable (with optional 3m or 5m lengths) make it suitable for various industrial monitoring applications.

Technical Specifications
PR100 PR200 PR201 PR202 PR300
Type Optical Probe LAB Immersion Probe LAB Immersion Probe LAB Immersion Probe Industrial Immersion Probe
Probe Tube Material 304 stainless steel C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional 316L stainless steel, resistant to SIP/CIP sterilization C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional
Outer Diameter 10mm 10mm 16mm 12mm 60mm (Support customizing)
Probe Tube Length 80mm 350 mm (Support customizing from 100 mm ~ 350 mm) 270 mm (Support customizing from 100 mm ~ 1000 mm) 120 mm (Support customizing from 120mm ~ 320 mm) 1.9 m (Support customizing from 1 m ~ 3 m)
Spectral Range 200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength)
230 ~ 3100 cm-1 (1064 nm excitation wavelength)
Temperature Range 0ºC ~ 100 ºC -40ºC ~ 200 ºC -40 ºC ~ 150 ºC -30 ºC ~ 200 ºC -60 ºC ~ 200 ºC
Applications

The JINSP PR100 Raman Probe is compatible with FC100/FC200 flow cells, making it ideal for online industrial monitoring equipment. It provides real-time monitoring of industrial processes, enabling immediate issue identification and adjustments. Particularly suitable for hazardous environments where traditional monitoring methods may be inadequate.

Support and Services
  • On-site installation and training
  • Remote technical support via phone or email
  • Troubleshooting and repair services
  • Calibration and maintenance services
  • Access to online knowledge base and resources
  • Customization services for specific application needs

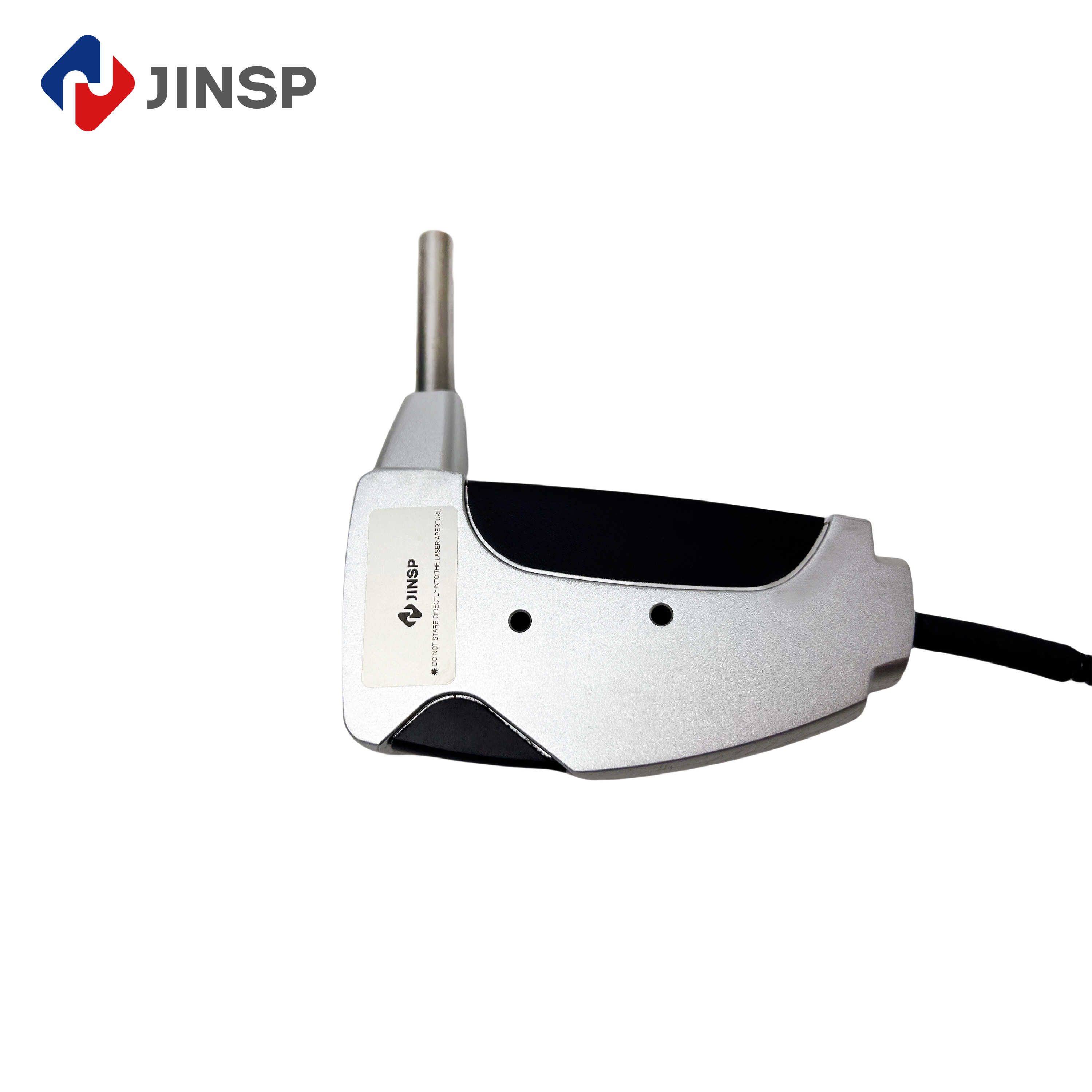

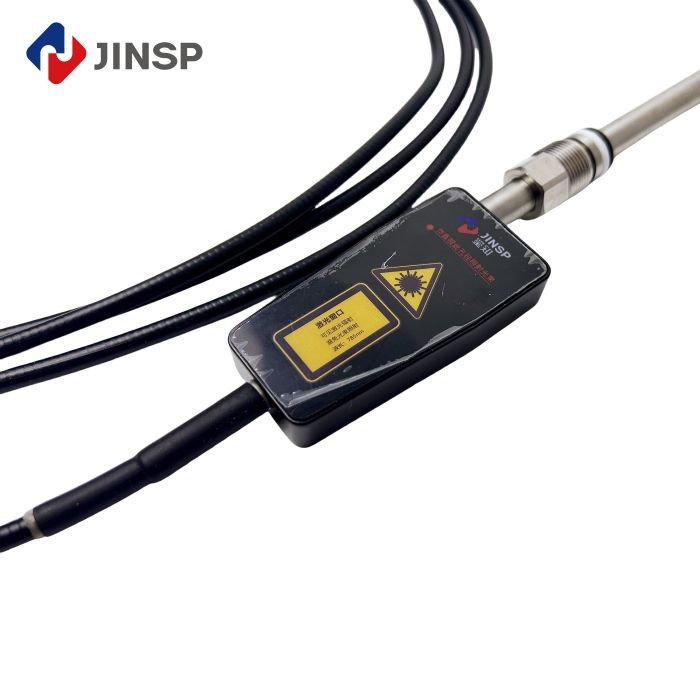

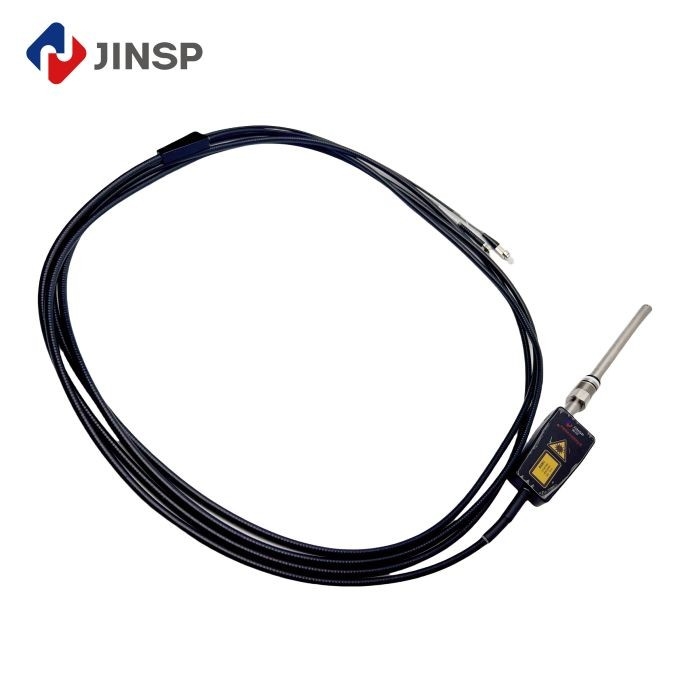

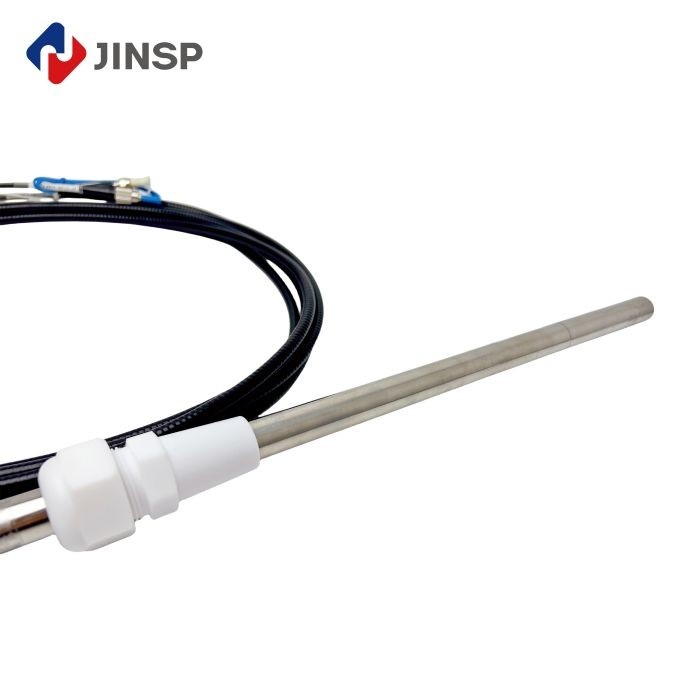

Product Images
Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof 0 Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof 1 Special Optical Design Raman Fiber Probe 80Mm Length Corrosion Proof 2
Company Information

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 200+ patent applications and 30+ R&D engineers (including 4 Ph.D.), JINSP offers over twenty spectroscopic products used in pharmaceutical, chemical, public security, and customs applications worldwide.

Packaging & Shipping

The Raman Probe is securely packaged in a compact box containing the probe, user manual, and protective case. Shipping is via reliable courier services with costs calculated based on delivery location.

Frequently Asked Questions
Q: What is the brand name of the Raman Probe?
A: The brand name is JINSP.
Q: What is the model number?
A: Model PR100.
Q: Where is it manufactured?
A: Manufactured in China.
Q: What is the minimum order quantity?
A: Minimum 5 units.
Q: Is the price negotiable?
A: Yes, prices are negotiable.
