Industrial ST100S Transmission Grating Spectrometer Ultra High Sensitivity

Contact Now

Industrial ST100S Transmission Grating Spectrometer Ultra High Sensitivity

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST100S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	785nm~988nm Corresponds To 0~2600cm-1	Detector:	Deep-cooling Area Array CCD
Optical Resolution:	0.35nm, Corresponds To 5cm-1(50μm Slit)	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Number Of Channels:	6 Channels (for Multi-core Optical Fiber With Core Diameter Of 200μm)
Dimensions:	354.9198.7123.5mm	Weight:	<6Kg (including Camera)
Highlight:	Transmission Grating Spectrometer High Sensitivity , transmission grating spectrograph High Sensitivity , industrial Transmission Grating Spectrometer

Product Description

Industrial ST100S Transmission Grating Spectrometer Ultra High Sensitivity

Key Specifications

Attribute	Value
Wavelength Range	785nm~988nm corresponds to 0~2600cm-1
Detector	Deep-cooling area array CCD
Optical Resolution	0.35nm, corresponds to 5cm-1(50μm slit)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Number of Channels	6 channels (for multi-core optical fiber with core diameter of 200μm)
Dimensions	354.9198.7123.5mm
Weight	<6Kg (including camera)

Product Overview

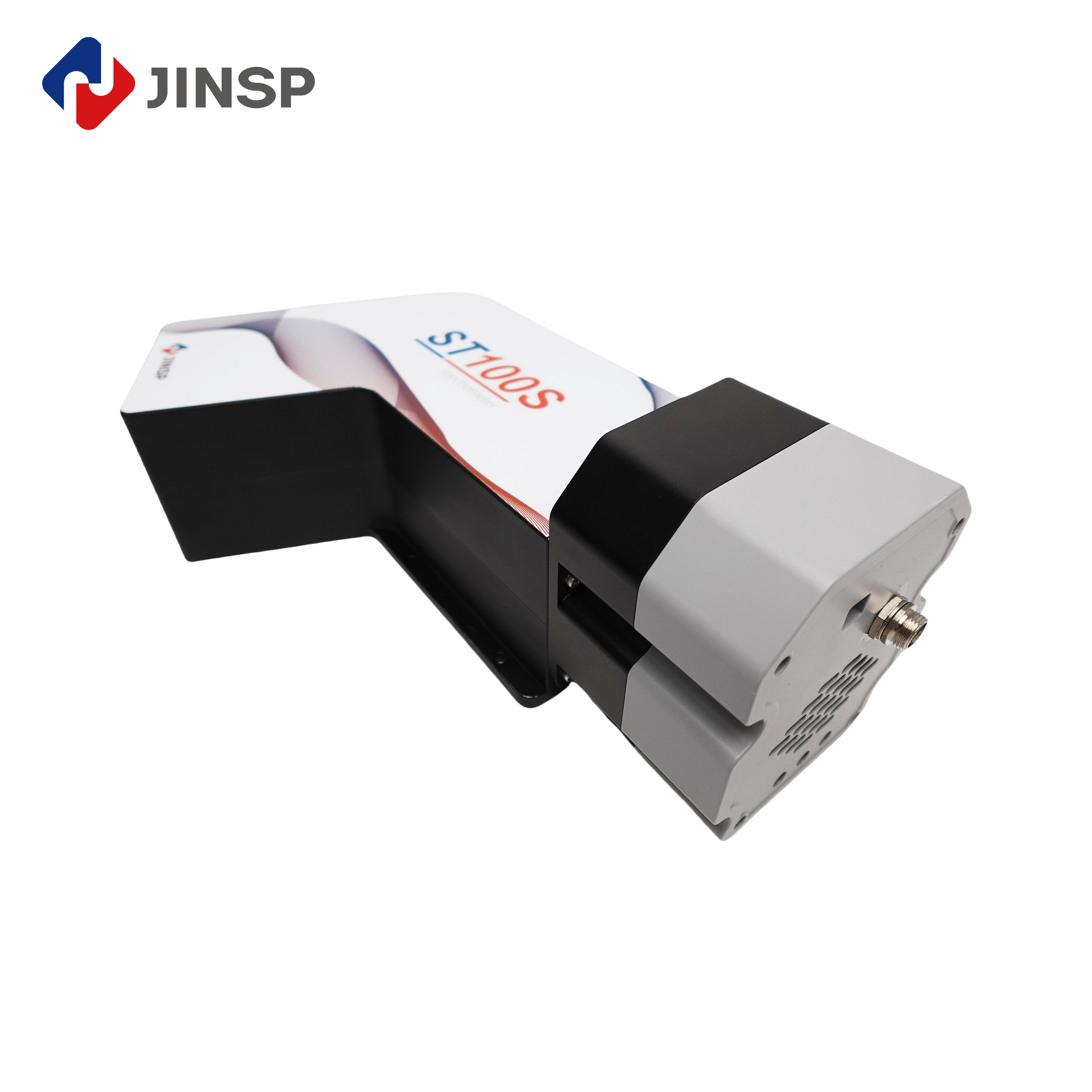

The JINSP ST100S transmission imaging spectrometer features a scientific-grade deep-cooling area array CCD camera and VPH volume phase holographic grating with diffraction efficiency approaching 90%. This combination delivers exceptional sensitivity and SNR, with sensitivity 5-10 times greater than reflection spectrometers and resolution twice that of traditional models.

With resolution up to 3 cm, the ST100S can be integrated with a 785nm laser Raman system for material and biological sample analysis. Its compact design and superior stability make it ideal for industrial applications compared to larger long-focus reflection spectrometers.

Technical Parameters

Category	Parameter	Value
Optical Parameters	Wavelength Range (ST100S1)	785nm~988nm corresponds to 0~2600cm-1
	Optical Resolution (ST100S1)	0.35nm (5cm-1 with 50μm slit) 0.25nm (3cm-1 with 25μm slit)
	Grating Type	VPH volume holographic transmission grating
	Diffraction Efficiency	>85%
	Fiber Interface	SMA905, FC, Φ10mm multi-core optical fiber
	Number of Channels	6 channels (200μm core diameter)
	Numerical Aperture	0.25
Electrical Parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V
	Operating Current	3A (typical value 2A)
	Operating Temperature	-20°C ~60°C
Physical Parameters	Dimensions	354.9mm × 198.7mm × 123.5mm
	Weight	<6Kg (including camera)

Model Comparison

Product Model	ST100S1	ST100S3	ST100S4
Detector Brand & Model	AndoriVac 316	Raptor261FI	Raptor261BI
Chip Type	Deep depletion of back illumination	Front illumination	Deep depletion of back illumination
Quantum Efficiency	82%@900nm	38%@900nm	80%@900nm
Number of Pixels	2000×256	2048×256	2048×256
Pixel Size (μm)	15×15	15×15	15×15
Image Area (mm)	30×3.8	30×3.8	30×3.8
Cooling Temperature (°C)	-70	-70	-70

* Customization available for other ranges

About JINSP Company

JINSP Company Limited originates from Tsinghua University with 17 years of experience in spectroscopic technology development. As a leading supplier, we offer over twenty spectroscopic products serving pharmaceutical, chemical, public security, customs, and fiber optic applications. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide an English manual and instructional video, along with professional technical support meetings to guide you through operation.

Q: Do you offer operation training?

A: Training options include on-site visits to our factory or local support from JINSP engineers for installation, training, debugging, and maintenance.

Q: How can I receive the best price quickly?

A: Please provide detailed specifications (wavelength, detector, pixels, focal length, etc.) in your inquiry for an accurate quotation.

Q: What if I encounter problems with the spectrometer?

A: The spectrometer includes a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q: What payment methods do you accept?

A: We accept T/T, PayPal, Western Union, L/C, and other standard payment methods.
