ST90S Modular Raman Spectrometer Designed for 532nm Raman Applications with 4200 cm⁻ sup1 Spectral Width

Contact Now

ST90S Modular Raman Spectrometer Designed for 532nm Raman Applications with 4200 cm⁻ sup1 Spectral Width

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	540nm~686nm Corresponds To 260~4200cm-1	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Dimensions:	348.7mm×222.8mm ×126mm
Weight:	<6kg (including Camera)	Fiber Length:	Φ10mm Multi-core Optical Fiber
Integration Time:	1ms-60s	Power Supply:	12V DC
Highlight:	ST90S Modular Raman Spectrometer , 532nm Modular Raman Spectrometer

Product Description

ST90S Modular Raman Spectrometer Designed for 532nm Raman Applications with 4200 cm⁻¹ Spectral Width

Product Specifications

Attribute	Value
Wavelength Range	540nm~686nm corresponds to 260~4200cm⁻¹
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Dimensions	348.7mm×222.8mm ×126mm
Weight	<6kg (including camera)
Fiber Length	Φ10mm multi-core optical fiber
Integration Time	1ms-60s
Power Supply	12V DC

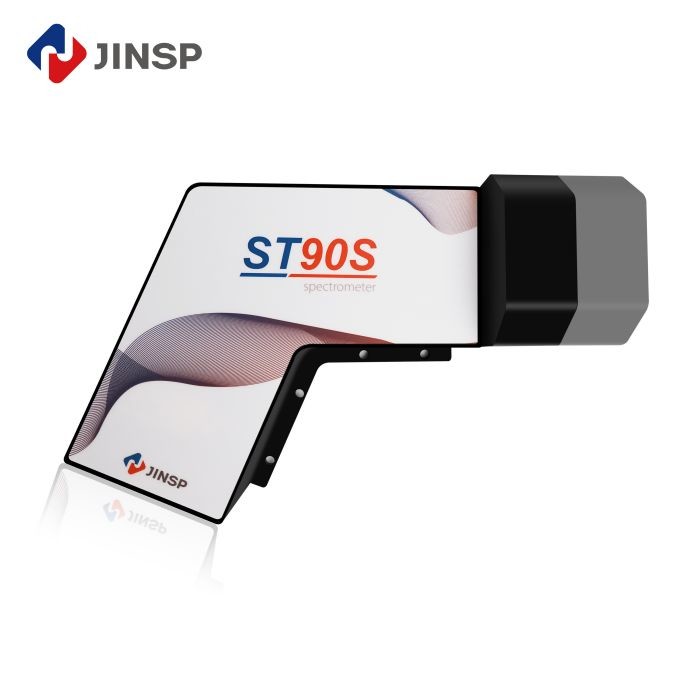

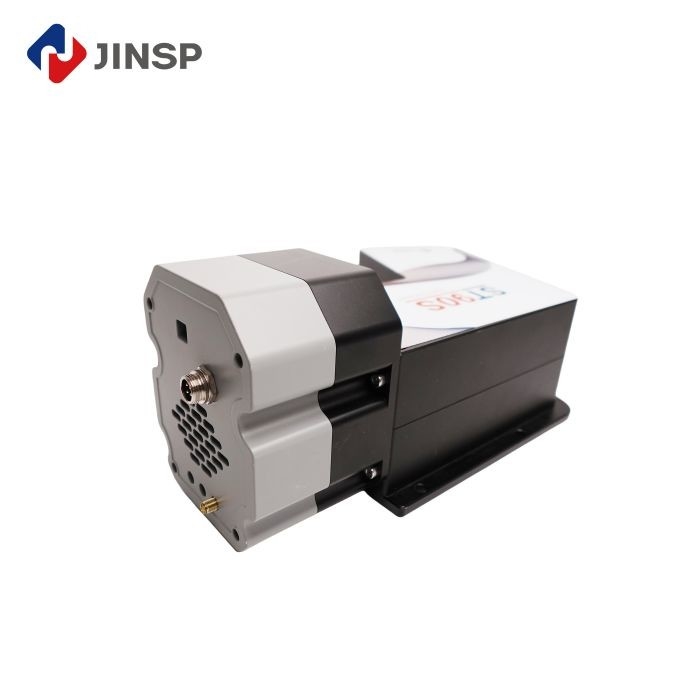

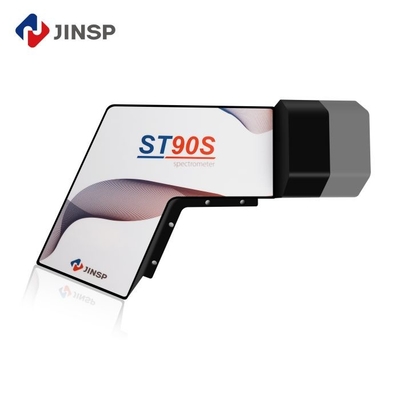

ST90S Raman Transmission Imaging Spectrometer

This high-throughput spectrometer uses a 90%-efficient VPH grating and superior optical imaging to achieve 5x sensitivity and 2x resolution improvement. The research-grade CCD provides deep cooling, high QE, and low noise. Its stable, compact form enables seamless equipment integration.

Tailored for laser Raman at 532nm, the ST90S is particularly effective for gaseous samples. Its high 4200 cm⁻¹ range and sharp 4 cm⁻¹ resolution make it a viable alternative to large reflection spectrometers.

Technical Parameters

Performance Indicators	Parameters
Detector	See model table for details
Optical Parameters
Wavelength Range	ST90S1: 540nm~686nm corresponds to 260~4200cm⁻¹ ST90S2: 532nm~670nm corresponds to 0~3850cm⁻¹
Optical Resolution (ST90S1)	0.25nm, corresponds to 8cm⁻¹ (50μm slit) 0.14nm, corresponds to 5cm⁻¹ (25μm slit)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Fiber Interface	SMA905 or Φ10mm multi-core optical fiber
Numerical Aperture	0.25
Electrical Parameters
Integration Time	1ms-3600s
Data Output Interface	USB2.0
ADC Bit Depth	16-bit
Power Supply	DC12V (ST90S1~ST90S4) DC5V (ST90S5)
Operating Current	3A (typical value 2A)
Operating Temperature	-20°C ~60°C
Storage Temperature	-30°C ~70°C
Operating Humidity	<90%RH (no condensation)
Physical Parameters
Dimensions	348.7mm × 222.8mm × 126mm
Weight	<6kg (including camera)

Technical Characteristics

Highly Stable: No adjustable components, applicable to labs and industries
High Flux: High flux, numerical aperture is 0.25
High Diffraction Efficiency: VPH grating, diffraction efficiency up to 90%
Support Multiple Channels: Compatible with SMA905 optical fiber and Φ10mm multi-core optical fiber input interface

Applications

Scientific research grade Raman spectroscopy detection system

532 nm confocal Raman microscope system

Industrial Raman System Integration

Online Raman detection - pharmaceutical, bio-fermentation, chemical reaction process detection
Gas online detection and process analysis
Chemical industry online, biomedical

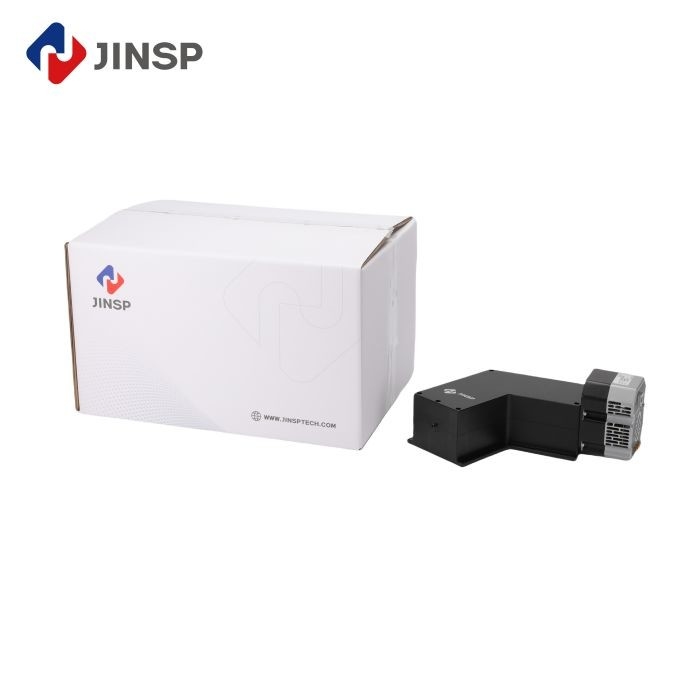

Packing and Shipping

The High-Throughput Transmission Fiber Spectrometer comes in a sturdy cardboard box to ensure safe delivery.

Company Introduction

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.

Frequently Asked Questions

1. What is the brand name of the product?

JINSP is our brand name.

2. What is the model number of the product?

ST90S Transmission Imaging Spectrometer.

3. What is the minimum order quantity for the product?

The minimum order quantity is 1 PC.

4. What are the payment terms for the product?

The payment terms are T/T and Western Union.

5. What is the delivery time for the product?

The delivery time is 60-70 working days.
