6 Channels Transmission Fiber Spectrometer Advanced Spectral Analysis Technology

Contact Now

6 Channels Transmission Fiber Spectrometer Advanced Spectral Analysis Technology

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST100S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	785nm~988nm Corresponds To 0~2600cm-1	Optical Resolution:	0.35nm, Corresponds To 5cm-1(50μm Slit)
Grating Type:	VPH Volume Holographic Transmission Grating	Diffraction Efficiency:	>85%
Number Of Channels:	6 Channels (for Multi-core Optical Fiber With Core Diameter Of 200μm)	Dimensions:	354.9198.7123.5mm
Weight:	<6Kg (including Camera)	Fiber Connector:	FC/PC
Detector Type:	CCD	Interface:	USB 2.0
Highlight:	6 channels Fiber Spectrometer , 6 channels Transmission Spectrometer , Fiber Spectrometer Advanced Technology

Product Description

6 Channels Transmission Fiber Spectrometer with Advanced Spectral Analysis Technology

Key Specifications

Attribute	Value
Wavelength Range	785nm~988nm corresponds to 0~2600cm-1
Optical Resolution	0.35nm, corresponds to 5cm-1 (50μm slit)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Number of Channels	6 channels (for multi-core optical fiber with core diameter of 200μm)
Dimensions	354.9198.7123.5mm
Weight	<6Kg (including camera)
Fiber Connector	FC/PC
Detector Type	CCD
Interface	USB 2.0

Product Overview

The JINSP ST100S transmission imaging spectrometer features a deep-cooling area array CCD camera of scientific research level and VPH volume phase holographic grating with diffraction efficiency close to 90%. This combination delivers excellent sensitivity and SNR, with sensitivity 5-10 times that of reflection spectrometer and resolution twice that of traditional spectrometer.

With resolution up to 3 cm, the ST100S can be coupled with a scientific research level 785nm laser Raman system to detect Raman spectra of materials and biological samples. Its compact design and superior stability make it ideal for industrial integration compared to large long-focus reflection spectrometers.

Technical Parameters

Parameter	Specification
Product Name	ST100S Transmission Imaging Spectrometer
Wavelength Range	785nm~988nm corresponds to 0~2600cm-1
Optical Resolution	0.35nm (5cm-1 with 50μm slit) 0.25nm (3cm-1 with 25μm slit)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Fiber Interface	SMA905 or Ф10mm multi-core optical fiber
Integration Time	1ms-3600s
Dimensions	354.9198.7123.5(mm)
Weight	<6kg (including camera)

Key Features

VPH grating with diffraction efficiency reaching 90%
Zero aberration design with diffraction-limited resolution
Compatible with various PI and Andor scientific research cryogenic cameras
Extremely low dark current noise
High-throughput design with numerical aperture 0.25
Supports SMA905 optical fiber and Φ10mm multi-core optical fiber interface
Multi-channel capability
High stability for both laboratory and industrial applications

Applications

The JINSP ST100S Transmission Fiber Spectrometer with FC/PC fiber connector is ideal for various scientific research scenarios. Its advanced spectral analysis technology and high stability make it perfect for multiple scientific research Raman spectrometer applications.

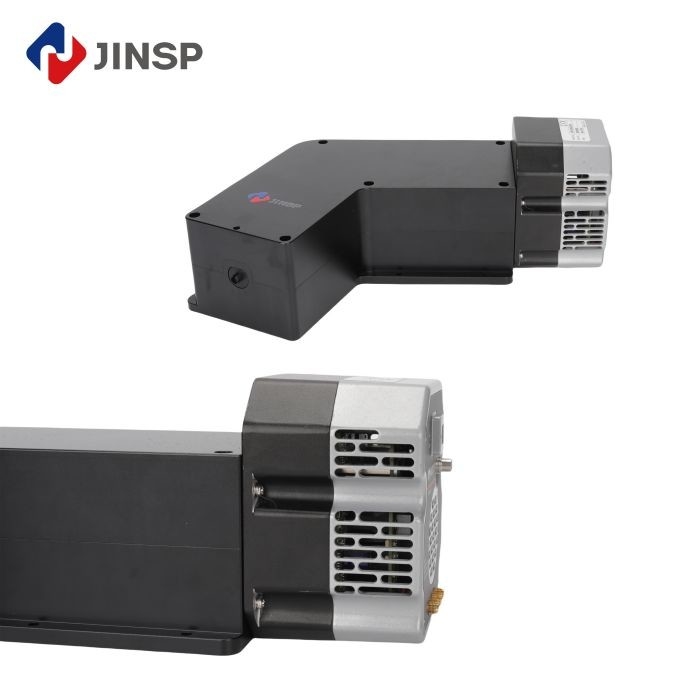

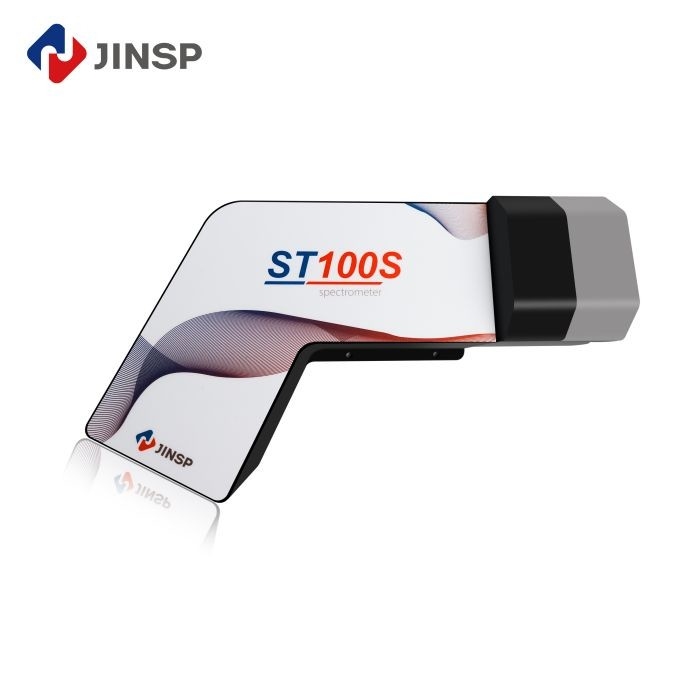

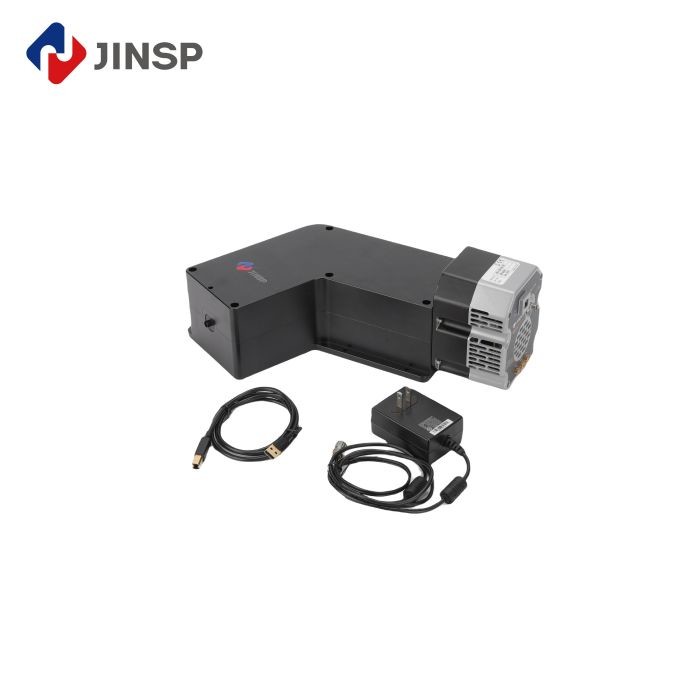

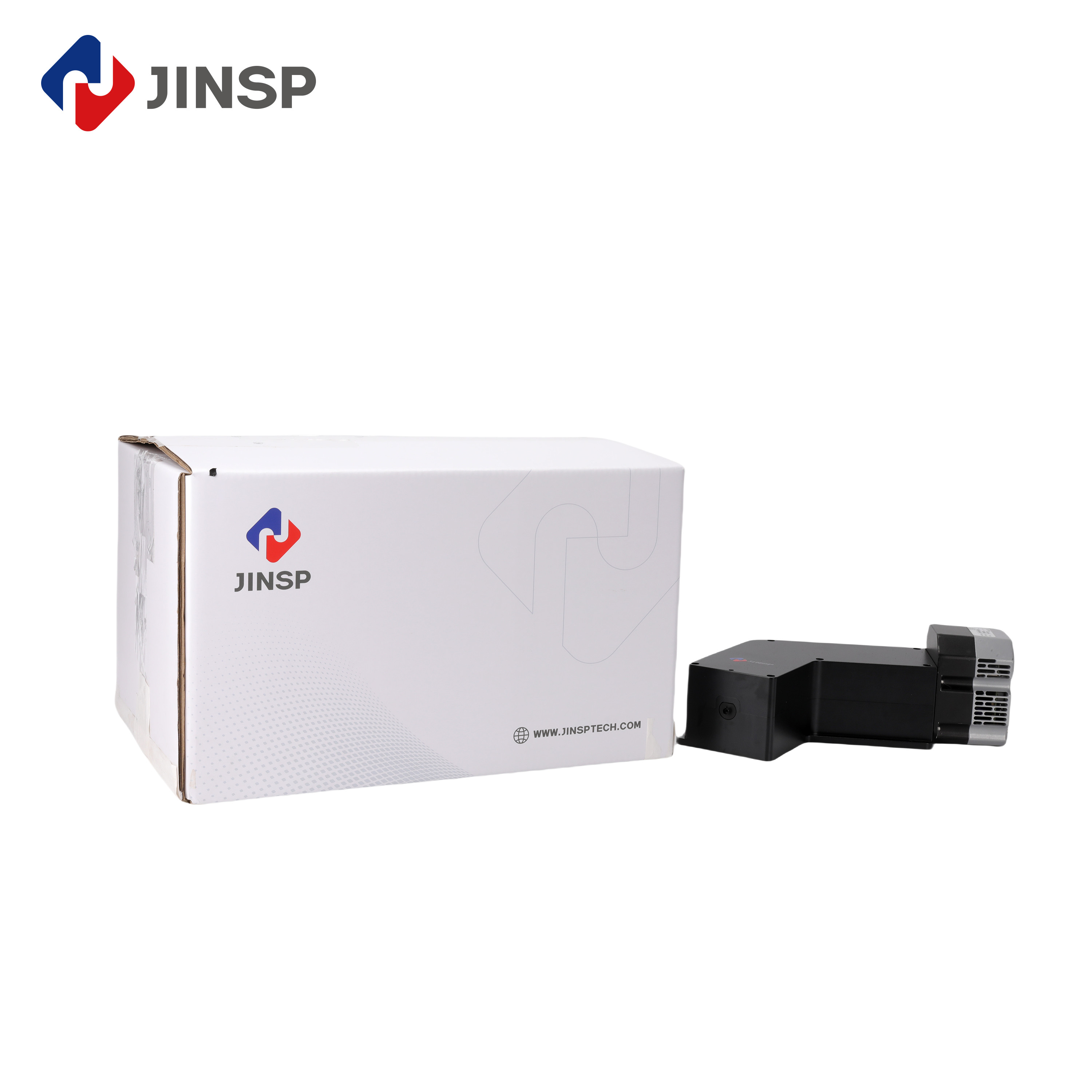

Product Images

About JINSP

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier, we offer over twenty spectroscopic products across various fields including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

What is the minimum order quantity for JINSP ST100S High-Throughput Transmission Fiber Spectrometer?

The minimum order quantity is 1 unit.

What are the payment terms?

Payment terms include T/T and Western Union.

What is the delivery time?

Delivery time is 30-40 working days.

What are the packaging details?

Customized packaging is available.
