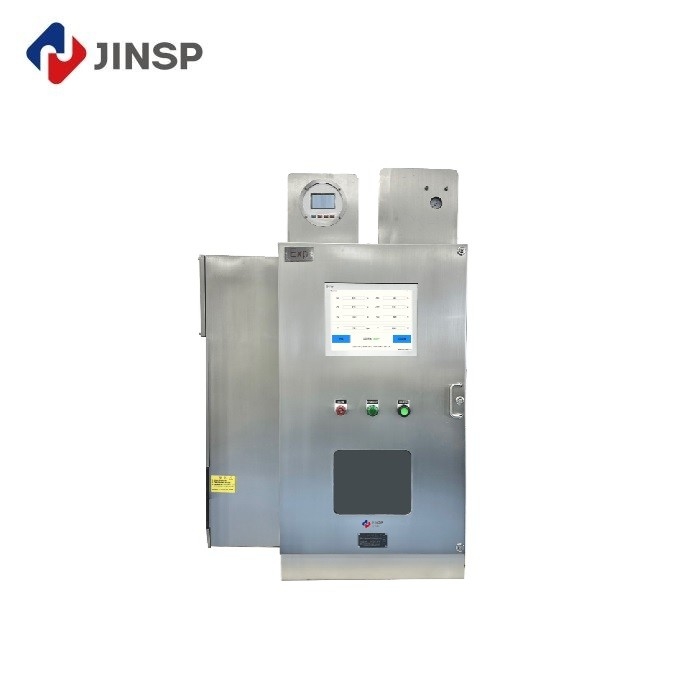

RS2600PAT Online Raman Spectroscopy Analyzer
Industrial explosion-proof design for analysis of multiple components in reaction gases with simultaneous online detection capability.
Key Specifications
| Attribute |
Value |
| Laser wavelength |
532nm |
| Spectral range |
200 ~ 4200 cm-1 |
| Resolution |
≤ 8 cm-1 at full spectral range |
| Power supply |
100 ~ 240 VAC，50 ~ 60 Hz |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
Product Overview
The JINSP® RS2600PAT multi-gas analyzer utilizes Raman spectroscopy technology to detect all gases except noble gases, enabling simultaneous online analysis of multiple components with detection ranges from ppm to 100%.
Detection Capabilities
Petrochemical industry: CH4, C2H6, C3H8, C2H4 and other hydrocarbons
Fluorine chemical industry: F2, BF3, PF5, Cl2, HCl, HF and other corrosive gases
Metallurgical industry: N2, H2, O2, CO2, CO and other industrial gases
Technical Highlights
Multi-component analysis: Simultaneous detection of multiple gases
Universal detection: >500 detectable gas types (excluding noble gases)
Pressure-independent: Quantification unaffected by sample gas pressure changes
Rapid response: Complete detection within seconds
Wide detection range: From ppm levels up to 100% concentration
Applications
Petrochemical: Natural gas component analysis
Fluorine chemical: Reaction gas monitoring
Metallurgical: Process gas analysis
Electronic special gases: Impurity detection
Functional Capabilities
Through valve control, the analyzer can:
Monitor raw gas components
Provide impurity gas alarms
Analyze synthesis reactor tail gas
Alert for hazardous gas emissions
Company Certifications
JINSP has participated in drafting international standards (IEC 63085) and national standards (GB/T 41086-2021, GB/T 40219-2021), with recognition including the Geneva International Invention Award and Beijing New Technology Certificate.
Frequently Asked Questions
Q1: Is the analyzer easy to operate for first-time users?
A1: We provide comprehensive English manuals and instructional videos, along with professional technical support sessions.
Q2: Do you offer operation training?
A2: Training is available at our facility or through on-site support from JINSP engineers for installation, training, and maintenance.
Q3: How can I get the best pricing?
A3: Provide detailed requirements (wavelength, detector specifications, etc.) with your inquiry for an accurate quotation.
Q4: What quality assurance do you provide?
A4: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
