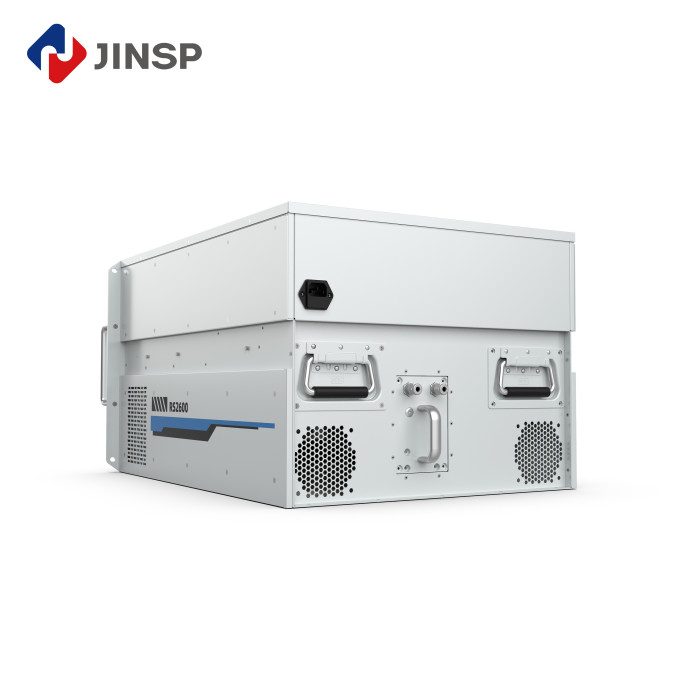

Raman Spectroscopy Multi-gas Analyzer - 2 Seconds Analysis Time and PPM Level Detection Limit
Key Specifications
| Model Name |
RS2600 Multi-gas Analyzer |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Detection Limit |
ppm level |
| Measurement Time |
Real-time |
Product Overview
The RS2600 Raman Based Multi-gas Analyzer meets stringent emissions standards with real-time multi-pollutant tracking. Capable of concurrent analysis of CO₂, CH₄, and fluorinated gases (PF5), this system simplifies stack testing with laboratory-grade accuracy in field conditions.
Its non-depletion sampling preserves evidence for audit trails. The wide dynamic range (ppm-100%) handles both fugitive emissions and process streams, while isotopic discrimination (H2 vs D2) aids in greenhouse gas source identification.
Technical Parameters
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Measurement uncertainty |
≤0.2% |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Input voltage |
100~240 VAC, 50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight |
40 kg |
Technical Highlights
- Non-destructive gas analysis: Analytes including homonuclear diatomic gases (F2, Cl2, etc.) and isotopic gases (H2, D2, T2, etc.)
- Short detection time: Data acquired in seconds
- Minimal maintenance: Resistance to high pressure, direct detection without consumables (chromatographic column or carrier gas)
- Wide detection range: LOD at ppm level, detection range up to 100%
Applications
1. Monitoring of F2, N2, HF and other components in the fluorination process
2. Quantitative analysis of different Elements in Petrochemical Natural Gas
Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.
3. Detection of components in reaction and emitted gases of fluorine materials
Detection of reactant gases, common gases, and fluorinated gases.
4. Detection of impurity gases and electronic special gases
Advanced Analysis Features
By constructing quantitative models of multiple standard curves and combining them with chemometric methods, the correlation between spectral signals and the content of various component substances can be effectively established. This comprehensive method improves analysis accuracy while enabling simultaneous processing of multiple chemical components.
Even with sample gas pressure changes or testing condition fluctuations, this quantitative analysis method maintains result accuracy due to its high stability and robustness, ensuring consistent analysis results in any environment.
About JINSP Company
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With over 200 patent applications, our core technologies have reached internationally leading levels.
We offer over twenty spectroscopic products across pharmaceutical, chemical, public security, and customs fields, with products exported to over 30 countries and cumulative sales exceeding 3,000 units. Our team includes 30+ R&D engineers, including 4 Ph.D. holders, specializing in personalized product customization.
Frequently Asked Questions
Q: This is the first time I use, is it easy to operate?
A: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.
Q: Can you offer operation training?
A: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.
Q: How to receive the best price in the shortest time?
A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) with your inquiry for a prompt quotation.
Q: Do you have MOQ requirement of each order?
A: No, we support orders for even 1 unit.
Q: What is the product warranty?
A: All products come with 1 year warranty, with options to extend the warranty period. Please contact our sales team for details.
