Raman Spectroscopy Gas Analyzer for Corrosion Monitoring Detection Limit ppm level Laser excitation wavelength 532 ± 0.5 nm

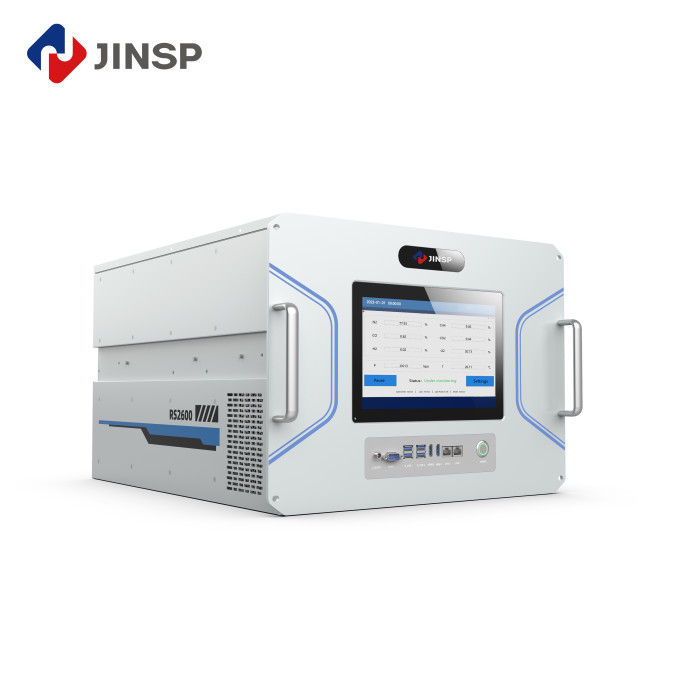

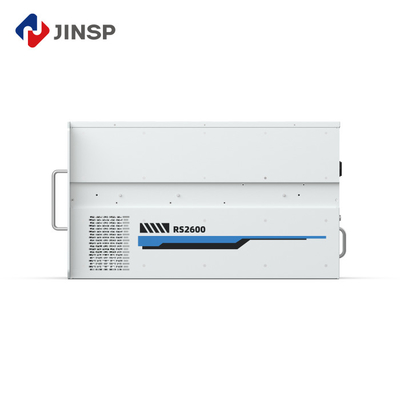

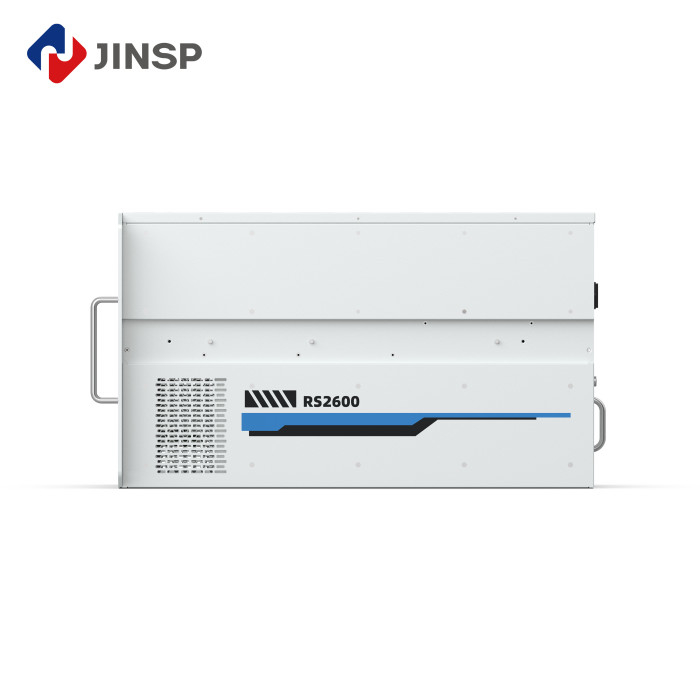

Model: RS2600 Multi-gas Analyzer
Key Attributes
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Detection Limit |
ppm level |
| Measurement Time |
Real-time |
Product Overview
The RS2600 Raman Based Multi-gas Analyzer provides proactive corrosion gas detection to combat equipment degradation. It simultaneously tracks HF, HCl, and H2S concentrations with ppm sensitivity, even in variable-pressure steam lines. The in-situ design eliminates sampling lag time critical for early leak detection.
Essential for refinery FCC units and geothermal plants, this analyzer's fluorine compound detection (BF₃, F₂) prevents catastrophic failures. Its unique ability to monitor both corrosive agents and protective atmosphere gases (N₂, CO₂) makes it indispensable for asset integrity management across industries.
Technical Specifications
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Input voltage |
100~240 VAC,50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight |
40 kg |
Technical Highlights
- Non-destructive gas analysis: Analytes including homonuclear diatomic gases(F2, Cl2, etc.) and isotopic gases (H2, D2, T2, etc.)
- Short detection time: Data acquired in seconds
- Minimal maintenance: Resistance to high pressure, direct detection without consumables (chromatographic column or carrier gas)
- Wide detection range: LOD at ppm level, detection range up to 100%
Applications
1. Monitoring of F2, N2, HF and other components in the fluorination process
2. Quantitative analysis of different Elements in Petrochemical Natural Gas
Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.
3. Detection of components in reaction and emitted gases of fluorine materials
4. Detection of impurity gases and electronic special gases
Key Features
By constructing quantitative models of multiple standard curves and combining them with chemometric methods, the correlation between spectral signals and the content of various component substances can be effectively established. This comprehensive method not only improves the accuracy of analysis, but also enables the simultaneous processing and analysis of multiple different chemical components.
Even in the case of changes in sample gas pressure or fluctuations in testing conditions, this quantitative analysis method can still maintain the accuracy of the results due to its high stability and robustness.
About JINSP
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies. After 17 years of technology accumulation, the company's core key technologies have reached international leading position, with cumulative patent applications exceeding 200.
JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
With 30+ R&D engineers including 4 Ph.D., JINSP specializes in personalized product customization, meeting diverse customer needs with professional technology and innovative design capabilities.
Frequently Asked Questions
Q: This is the first time I use it, is it easy to operate?
A: We provide an operating manual and guide video in English, along with professional technical operation meetings with our technicians.
Q: Can you offer operation training?
A: Your technicians can receive training at our factory or our engineers can provide local support for installation, training, debugging, and maintenance.
Q: How to receive the best price in the shortest time?
A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt quotation.
Q: Do you have MOQ requirement of each order?
A: No minimum order quantity - we support orders for even single units.
Q: What is the product warranty?
A: All products come with 1 year warranty, with options to extend warranty period. Contact our sales team for details.
