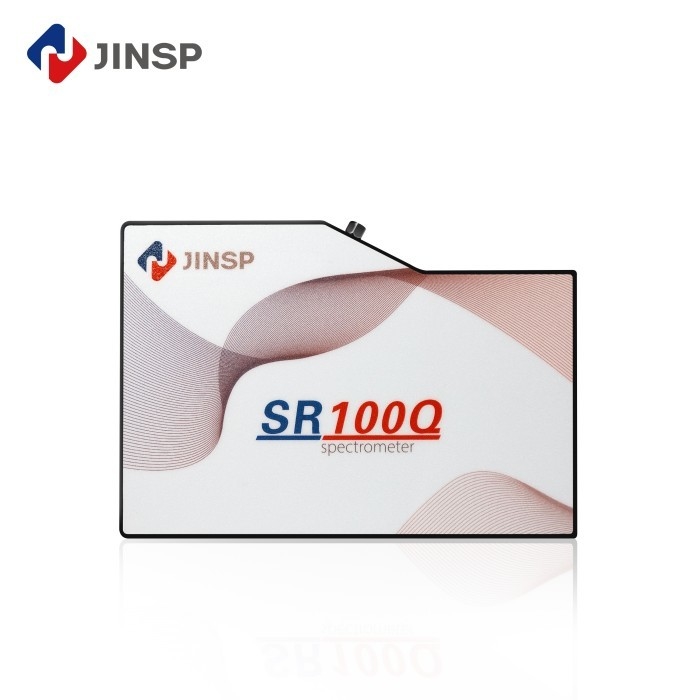

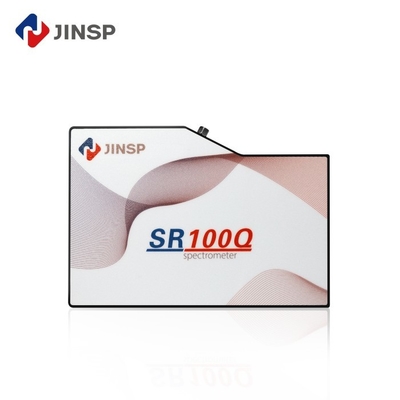

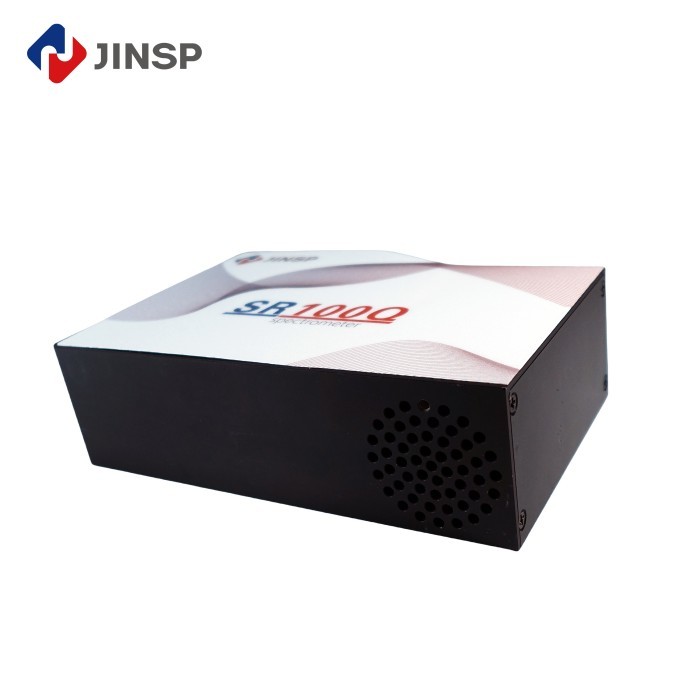

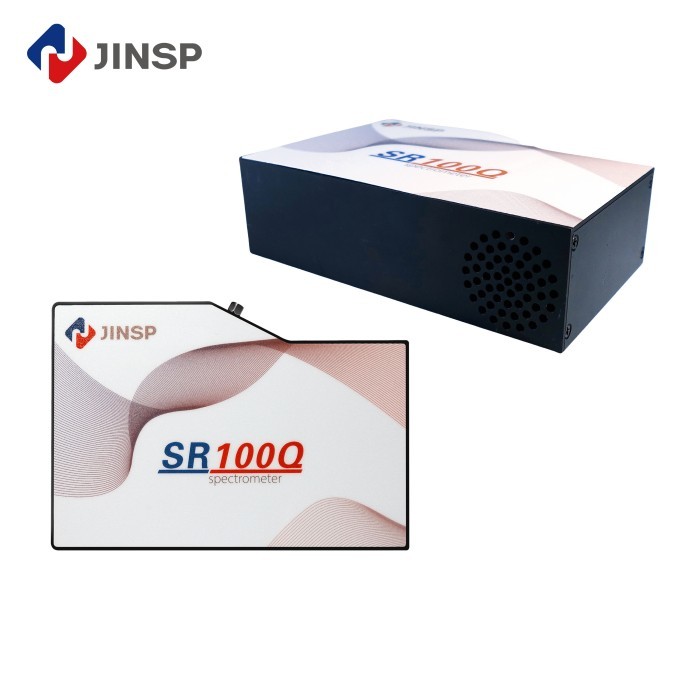

High Sensitivity Fiber Optic Spectrometer for Accurate Film Thickness Measurement with JINSP SR100Q

Contact Now

High Sensitivity Fiber Optic Spectrometer for Accurate Film Thickness Measurement with JINSP SR100Q

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1

Product Description

92% High Quantum Spectrometer for Film Thickness Measurement

Modern industries leveraging thin film technology require sophisticated measurement approaches. Photoelectric methods deliver unparalleled advantages: zero sample alteration coupled with instant readings. The synergy of optical sensors and computational analytics paves the way for smarter production techniques and enhanced material performance.

The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals. Furthermore, it can realize excellent spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip.

Product Parameters:

Detector	Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
	Effective Pixel	1024*122
	Pixel Size	24*24μm
	Sensing Area	24.576*2.928mm
Optical Parameters	Optical Design	F/4 cross-type
	Numerical Aperture	0.13
	Focal Length	100mm
	Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
	Fiber Interface	SMA905,free space
Electrical Parameters	Integration Time	8ms-3600s
	Data Output Interface	USB3.0,RS232,RS485,20pin connector
	ADC Bit Depth	16-bit
	Power Supply	5V
	Operating Current	<3.5A
Physical Parameters	Operating Temperature	10℃~40℃
	Storage Temperature	-20℃~60℃
	Operating Humidity	<90%RH (no condensation)
	Dimensions	180mm120mm50mm
	Weight	1.2kg

List of Product Models:

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100Q-G21 SR100Q-G22	200~950 350~1100	6.8	200
		2.2	50
		1.5	25
		1.0	10
SR100Q-G23 SR100Q-G24	200~775 350~925	1.6	50
		1.0	25
		0.7	10
SR100Q-G25	532~690(4400cm-1)	13cm-1	50
SR100Q-G26	638~800(3200cm-1)*	10cm-1	25
SR100Q-G27	785~1050(3200cm-1)*	11cm-1	50

**Note: The*are primarily designed for Raman applications, with the corresponding Raman.**

Technical Characteristics:

High quantum efficiency, 92%peak@650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

Noise-free clear processing of weak signal in long exposure, strong adaption to environment
Low-noise and high-speed circuit: USB3.0

Measurement Method:

A fiber-coupled light source illuminates the film, inducing reflections at both interfaces. The spectrometer detects the interference of these beams, allowing thickness (d) determination via the extremum method (θ, n, and spectral extrema). Fringe density scales with thickness but diminishes at longer wavelengths. Proper wavelength range and resolution ensure measurement validity.

High Sensitivity Fiber Optic Spectrometer for Accurate Film Thickness Measurement with JINSP SR100Q 0

Typical Applications:

Detect absorption, transmittance and reflection Spectrum
Light source and laser wavelength characterization
OEM product module: Fluorescence spectrum, Raman spectrum, etc.

High Sensitivity Fiber Optic Spectrometer for Accurate Film Thickness Measurement with JINSP SR100Q 1

High Sensitivity Fiber Optic Spectrometer for Accurate Film Thickness Measurement with JINSP SR100Q 2
