Customizable Back-illuminated CCD Fiber Optic Spectrometer with High Sensitivity and Resolution
Key Specifications
| Attribute | Value |
| Spectral Range | 200nm - 1100nm |
| Effective pixels | 2048*64 |
| Pixel Size | 28.672*0.896mm |
| Integration Time | 4ms~900s |
| Dimensions | 180mm*120mm*50mm |
| Weight | 1.2kg |
Product Overview

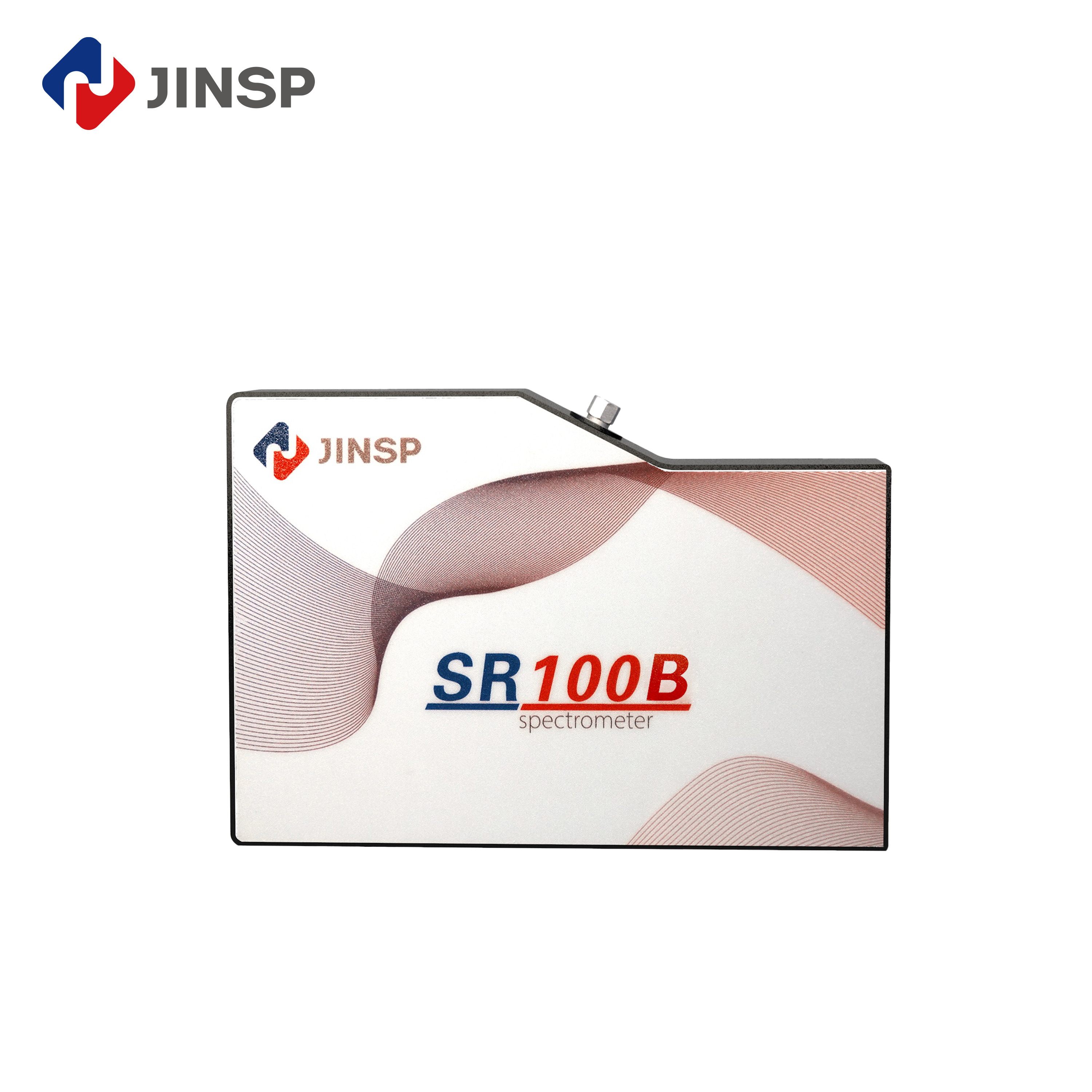

The SR100B spectrometer is a high-performance spectral analysis instrument featuring a back-illuminated CCD sensor with exceptional capabilities. Designed for industrial, laboratory, and research applications requiring precision and speed, it utilizes the Hamamatsu S10420 CCD chip for stable spectral measurements across the 200-1100nm spectrum.
Detailed Technical Parameters
| Detector Specifications |
| Detector | Back-illuminated cooling Hamamatsu S10420 |
| Effective Pixel | 2048*64 |
| Pixel Size | 14*14μm |
| Sensing Area | 28.672*0.896mm |
| Optical Parameters |
| Optical Design | F/4 cross type |
| Numerical Aperture | 0.13 |
| Focal Length | 100mm |
| Entrance Slit Width | 10μm,25μm,50μm,100μm,200μm (customizable) |
| Fiber Interface | SMA905, free space |
| Electrical Parameters |
| Integration Time | 4ms~900s |
| Data Output Interface | USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth | 16-bit |
| Power Supply | 5V |
| Operating Current | <3.5A |
| Physical Parameters |
| Operating Temperature | 10℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Operating Humidity | <90%RH (no condensation) |
Available Models
| Model | Spectral Range(nm) | Resolution(nm) | Slit(μm) |
| SR100B-G21 | 200~1100 | 2.2 (50μm)
1.5 (25μm)
1.0 (10μm) | 50
25
10 |
| SR100B-G23 | |
| SR100B-G24 | 200~875
350~1025 | 1.6 (50μm)
1.0 (25μm)
0.7 (10μm) | 50
25
10 |
| SR100B-G28 | 200~345 | 0.35 (50μm)
0.2 (25μm)
0.14 (10μm) | 50
25
10 |
| SR100B-G25 | 532~720(4900cm-1*) | 13cm-1 | 50 |
| SR100B-G26 | 638~830(3200cm-1) | 10cm-1 | 25 |
| SR100B-G27 | 785~1080(3200cm-1) | 11cm-1 | 50 |
*Models marked with asterisk are primarily designed for Raman applications.
Key Features
- High sensitivity with area array back-illuminated detector featuring high quantum efficiency and optimized ultraviolet band
- High resolution capability: <1.0nm@10μm (200~1100nm)
- Flexible operation across 180~1100nm spectrum with multiple interface options (USB3.0, RS232, RS485)
- Reliable performance with ultra-high SNR and excellent thermal stability
Applications
- Absorption, transmittance and reflection spectrum detection
- Light source and laser wavelength characterization
- OEM product modules for fluorescence spectrum, Raman spectrum analysis
