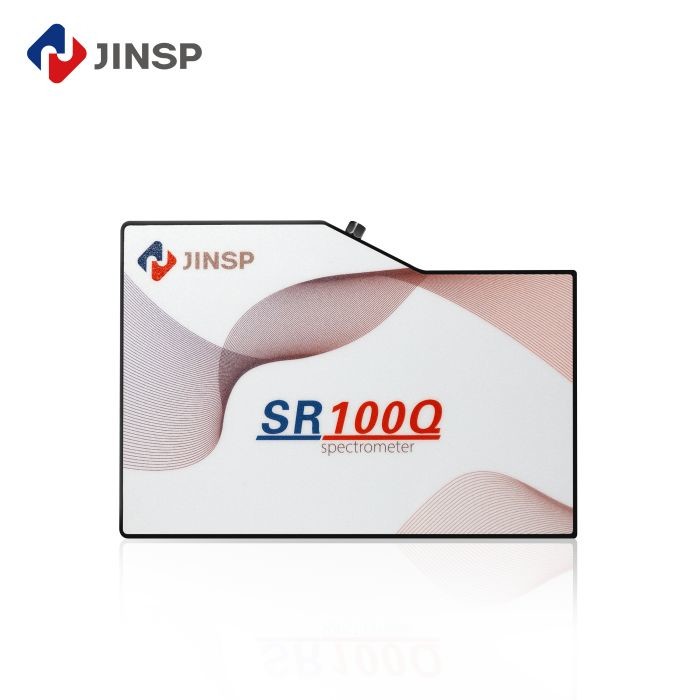

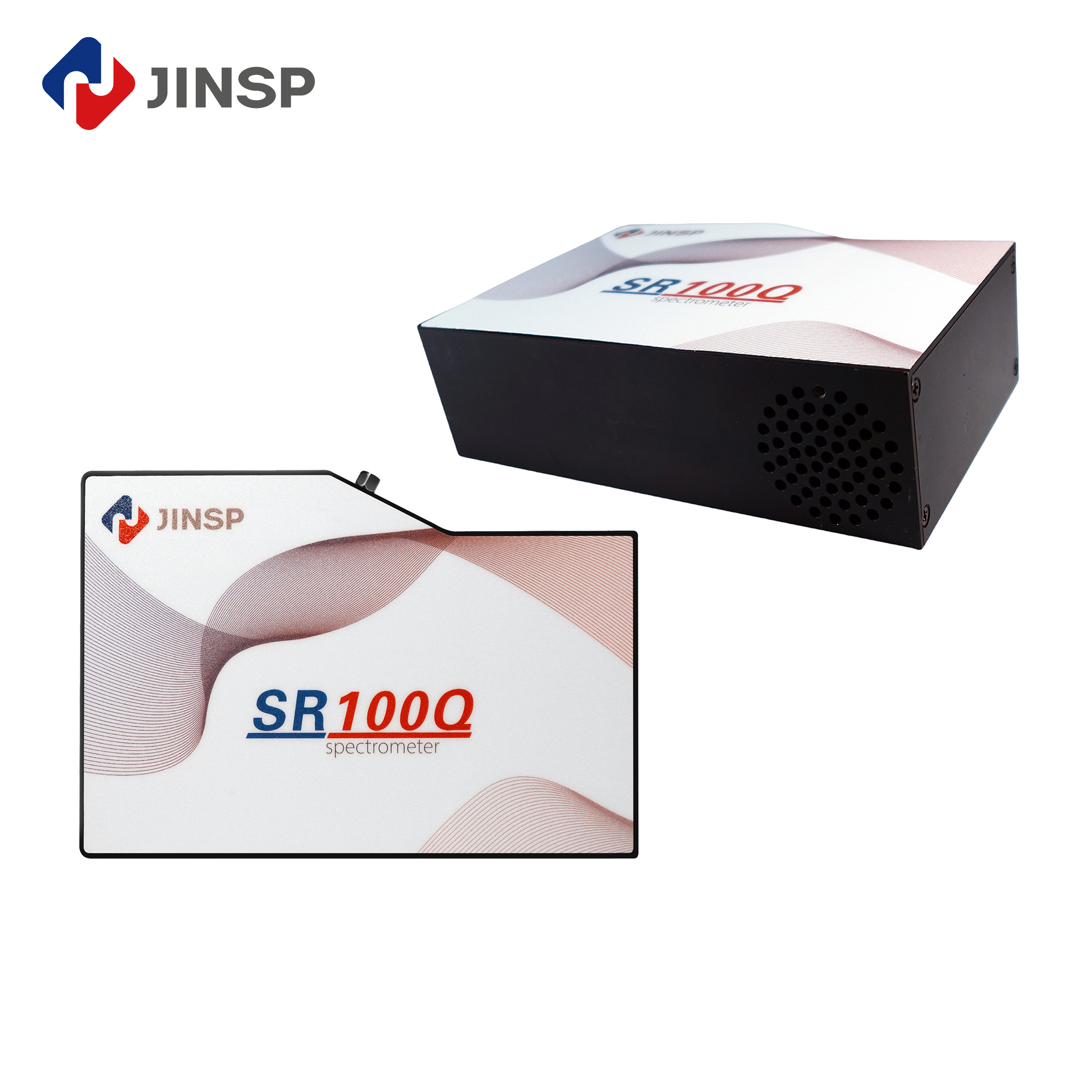

SR100Q 92% High Quantum Efficiency CCD Modular Fiber Optic Spectrometer High SNR Low-Noise
Product Specifications
| Attribute | Value |
| Spectral Range | 200nm - 1100nm |
| Effective pixels | 1024*122 |
| Quantum Efficiency | QE92%peak@650nm, 83%@232nm |
| SNR | 1000:1 |
Product Overview
The JINSP SR100Q spectrometer integrates the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of 24×24μm and exceptional quantum efficiency up to 92%, it delivers high response in the ultraviolet band while enhancing sensitivity and SNR for weak signals. The advanced high-resolution optical path and low-noise, high-speed FPGA signal processing chip ensure excellent spectral signals and stable, reliable performance. The TE cooling system significantly reduces dark noise, making it ideal for weak light detection in scientific research applications.
Detailed Parameters
| Detector Specifications |
| Detector | Chip Type | Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel | 1024*122 |
| Pixel Size | 24*24μm |
| Sensing Area | 24.576*2.928mm |
| Optical Parameters |
| Optical Design | F/4 cross-type |
| Numerical Aperture | 0.13 |
| Focal Length | 100mm |
| Entrance Slit Width | 10μm,25μm,50μm,100μm,200μm (customizable) |
| Fiber Interface | SMA905, free space |
| Electrical Parameters |
| Integration Time | 8ms-3600s |
| Data Output Interface | USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth | 16-bit |
| Power Supply | 5V |
| Operating Current | <3.5A |
| Physical Parameters |
| Operating Temperature | 10℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Operating Humidity | <90%RH (no condensation) |
| Dimensions | 180mm*120mm*50mm |
| Weight | 1.2kg |
Product Model Variations
| Model | Spectral Range(nm) | Resolution(nm) | Slit(μm) |
| SR100Q-G21 | 200~950 | 6.8 | 200 |
| SR100Q-G22 | 350~1100 | 2.2 | 50 |
| | 1.5 | 25 |
| | 1.0 | 10 |
| SR100Q-G23 | 200~775 | 1.6 | 50 |
| SR100Q-G24 | 350~925 | 1.0 | 25 |
| | 0.7 | 10 |
| SR100Q-G25 | 532~690(4400cm-1*) | 13cm-1 | 50 |
| SR100Q-G26 | 638~800(3200cm-1*) | 10cm-1 | 25 |
| SR100Q-G27 | 785~1050(3200cm-1*) | 11cm-1 | 50 |
* Models marked with asterisk are primarily designed for Raman applications, with corresponding Raman specifications.
Key Technical Features
- High quantum efficiency: 92% peak @650nm, 83% @232nm
- High SNR: Ultra-low dark noise under long integration time, SNR up to 1000:1
- Noise-free processing of weak signals during long exposure with strong environmental adaptation
- Low-noise, high-speed circuit with USB3.0 interface
Typical Applications
- Absorption, transmittance, and reflection spectrum detection
- Light source and laser wavelength characterization
- OEM product modules for fluorescence spectrum, Raman spectrum, and other applications
