Compact Size Industrial Near Infrared Fiber Spectrometer High Resolution

Contact Now

Compact Size Industrial Near Infrared Fiber Spectrometer High Resolution

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Wavelength Accuracy:	±0.3 Nm	Measurement Range:	900-1700 Nm
Spectral Resolution:	0.1 Nm	Integration Time:	1 Ms - 10 S
Highlight:	Compact Size Fiber Spectrometer , Compact Size near infrared spectrometer , Fiber Spectrometer High Resolution

Product Description

Compact Size Industrial Near Infrared Fiber Spectrometer High Resolution

Product Overview

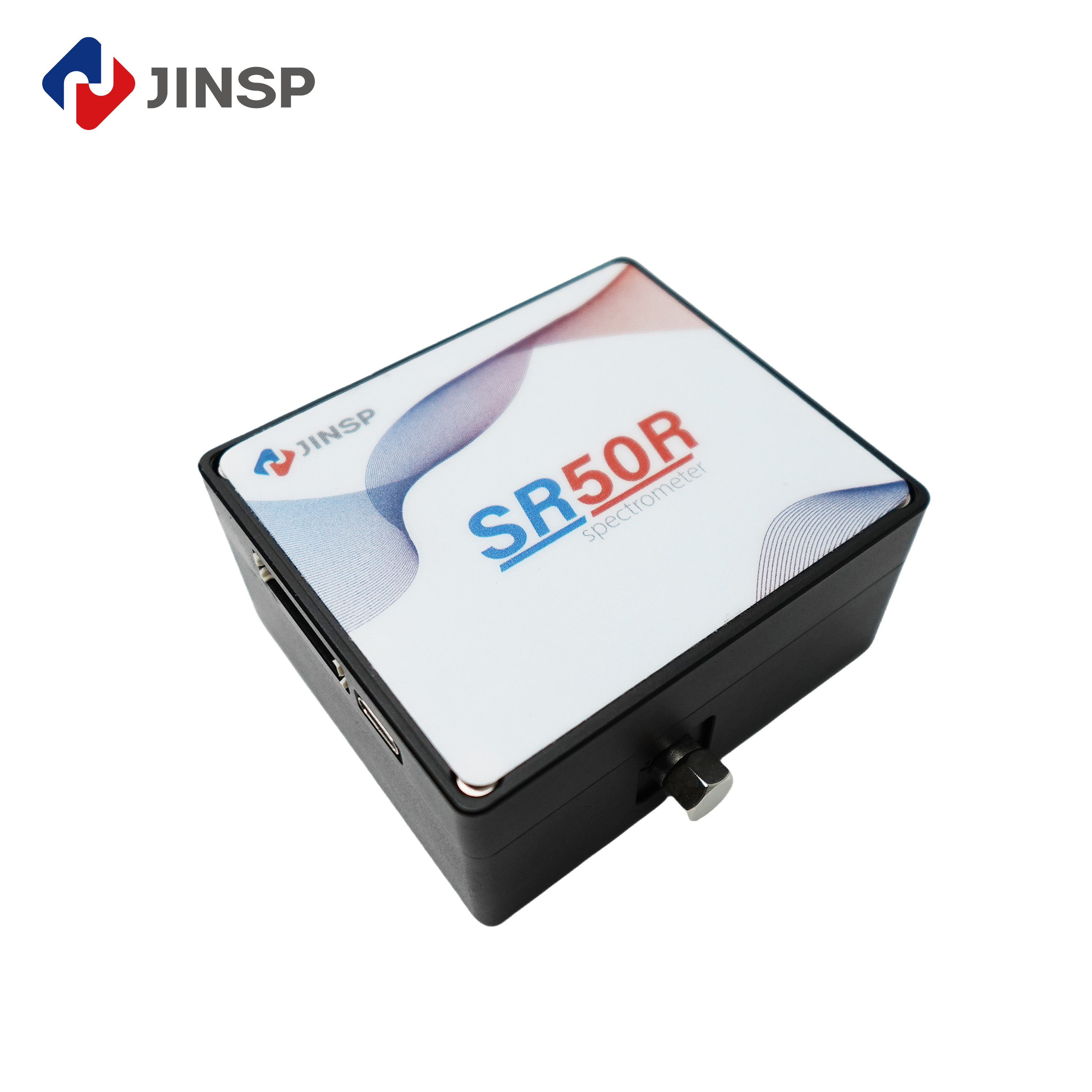

The JINSP SR50R17 is a compact, cost-effective 900nm~1700nm near-infrared spectrometer featuring a non-cooled InGaAs sensor with high sensitivity and resolution. Designed for industrial applications, this spectrometer delivers high-performance spectral measurements in a portable package.

Key Features

Compact design with low cost operation
High resolution spectral analysis
Compatible with USB or UART interface for data output
SMA905 fiber input for free space optical measurement

Technical Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Data Output Interface	USB2.0, UART
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Spectral Resolution	0.1 nm
Integration Time	1 ms - 10 s
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm67mm36mm
Weight	0.4KG

Applications

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades

About JINSP

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier, we offer over twenty spectroscopic products across various fields including pharmaceutical, chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q1: This is the first time I use, is it easy to operate?

A1: We provide an English manual and guide video to teach spectrometer operation. Our technicians also offer professional technical operation meetings.

Q2: Can you offer operation training?

A2: Your technicians can receive training at our factory. JINSP engineers can also provide on-site support including installation, training, debugging, and maintenance.

Q3: How to receive the best price quickly?

A3: Please provide details including wavelength, detector, effective pixels, and focal length in your inquiry. We will send a detailed quotation promptly.

Q4: What if the spectrometer has problems?

A4: The spectrometer has a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q5: Which payment methods do you accept?

A5: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
