Near IR Fiber Optic Spectrometer 900-1700nm Wavelength Range For Control

Contact Now

Near IR Fiber Optic Spectrometer 900-1700nm Wavelength Range For Control

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Support And Services:	Expert Technical Assistance And Troubleshooting, Comprehensive Product Documentation And User Manuals, Software Updates And Upgrades, Customization Options To Fit Specific Application Needs	Type:	Linear Array InGaAs
Data Output Interface:	USB2.0, UART	Sensitive Area:	6.4mm*0.25mm
Wavelength Range:	900-1700nm	Technical Parameters:	Product Name: Near Infrared Non-cooled Spectrometer, Wavelength Range: 900-1700nm, Chip Type: Linear Array InGaAs, Entrance Slit Width: 5μm, 10μm, 25μm, 50μm (customizable), Incident Light Interface: SMA905, Free Space, Integration Time: 1ms-5s, Operating
Product Category:	Fiber Optic Spectrometers	Integration Time:	1ms-5s
Highlight:	Near Ir Fiber Optic Spectrometer , Near Ir optical fiber spectrometer , 1700nm Fiber Optic Spectrometer

Product Description

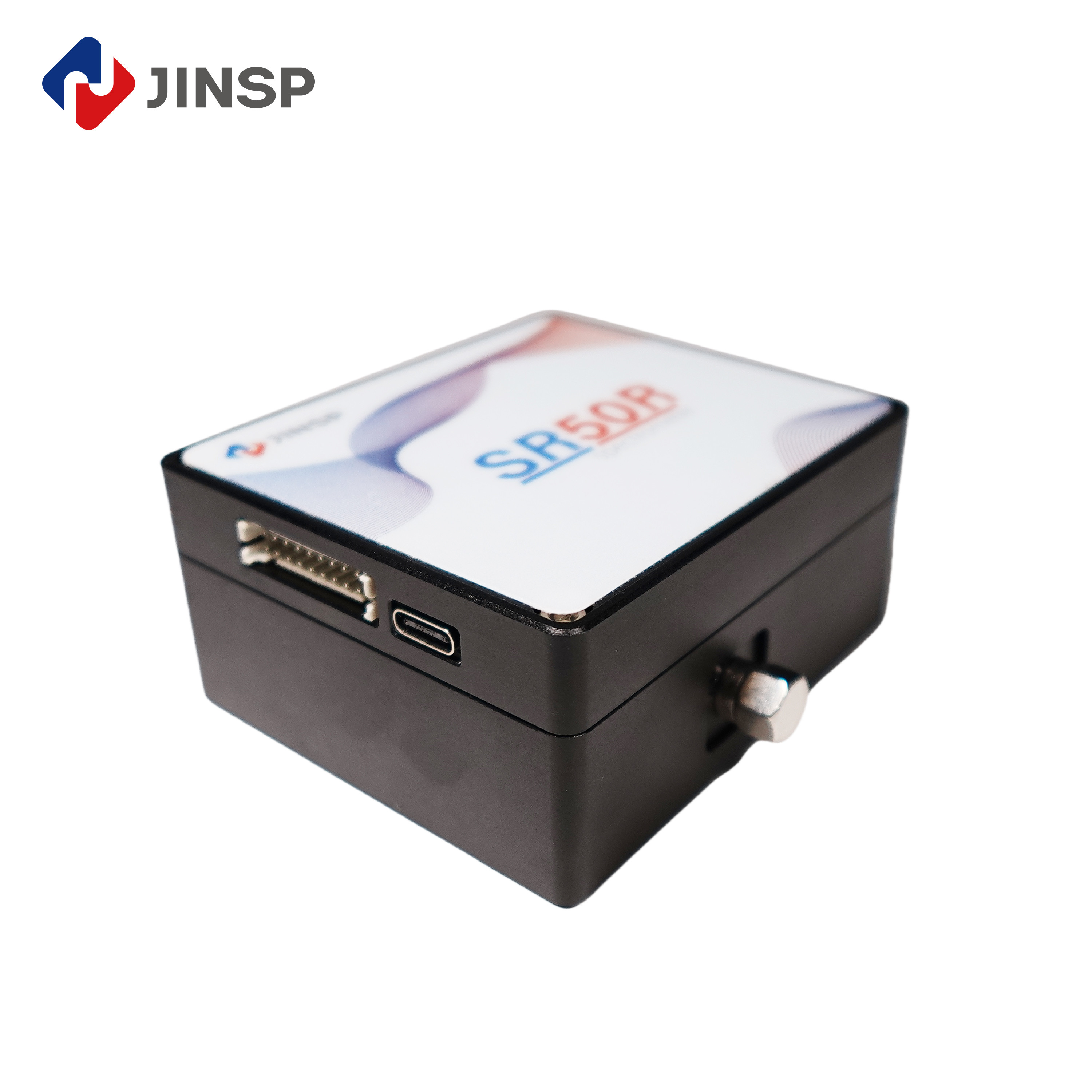

Near IR Fiber Optic Spectrometer 900-1700nm Wavelength Range For Control

Key Specifications

Attribute	Value
Type	Linear Array InGaAs
Data Output Interface	USB2.0, UART
Sensitive Area	6.4mm*0.25mm
Wavelength Range	900-1700nm
Integration Time	1ms-5s
Product Category	Fiber Optic Spectrometers

Product Overview

The Near Infrared Non-cooled Spectrometer features a linear array InGaAs sensor with high sensitivity and resolution. Compatible with USB or UART interfaces for spectrum data output, this spectrometer is designed for industrial applications requiring precise near-infrared measurements.

Technical Parameters

Product Name	High-Performance Near-infrared Fiber Spectrometer for Industrial Applications
Type	Linear Array InGaAs
Wavelength Range	900-1700nm
Integration Time	1ms-5s
Effective Pixels	128 (256 Optional)
Cell Size	50μm*250μm
Entrance Slit	10μm, 25μm And 50μm

Key Features

SMA905 fiber input for free space optical measurements
Gold-plated lens surface for high near-infrared reflection efficiency
Non-cooled InGaAs sensor with high sensitivity
Compact design with USB2.0 and UART interfaces
Customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)

Applications

The JINSP SR50R17 spectrometer is ideal for:

Moisture content measurement
Wastewater testing and analysis
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support and Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
Customization options for specific application needs
Installation and configuration support
Remote technical support and maintenance services

Company Profile

JINSP Company Limited originates from Tsinghua University with 17 years of experience in spectroscopic technology development. As a leading supplier, we offer over twenty spectroscopic products across various fields including pharmaceutical, chemical industries, public security, customs, and fiber optic spectrometers.

Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name is JINSP.

Q: What is the model number?

A: Model SR50R.

Q: Is this product certified?

A: Yes, CE certified.

Q: Where is it manufactured?

A: Made in China.

Q: What is the minimum order quantity?

A: Minimum order is 1 unit.

Q: Is the price negotiable?

A: Yes, prices are negotiable.

Q: What are the payment terms?

A: T/T and Western Union.

Q: What is the delivery time?

A: 30-50 working days.
