Highly Sensitive Mini Portable NIR Spectrometer For Measurements 900nm-1700nm

Contact Now

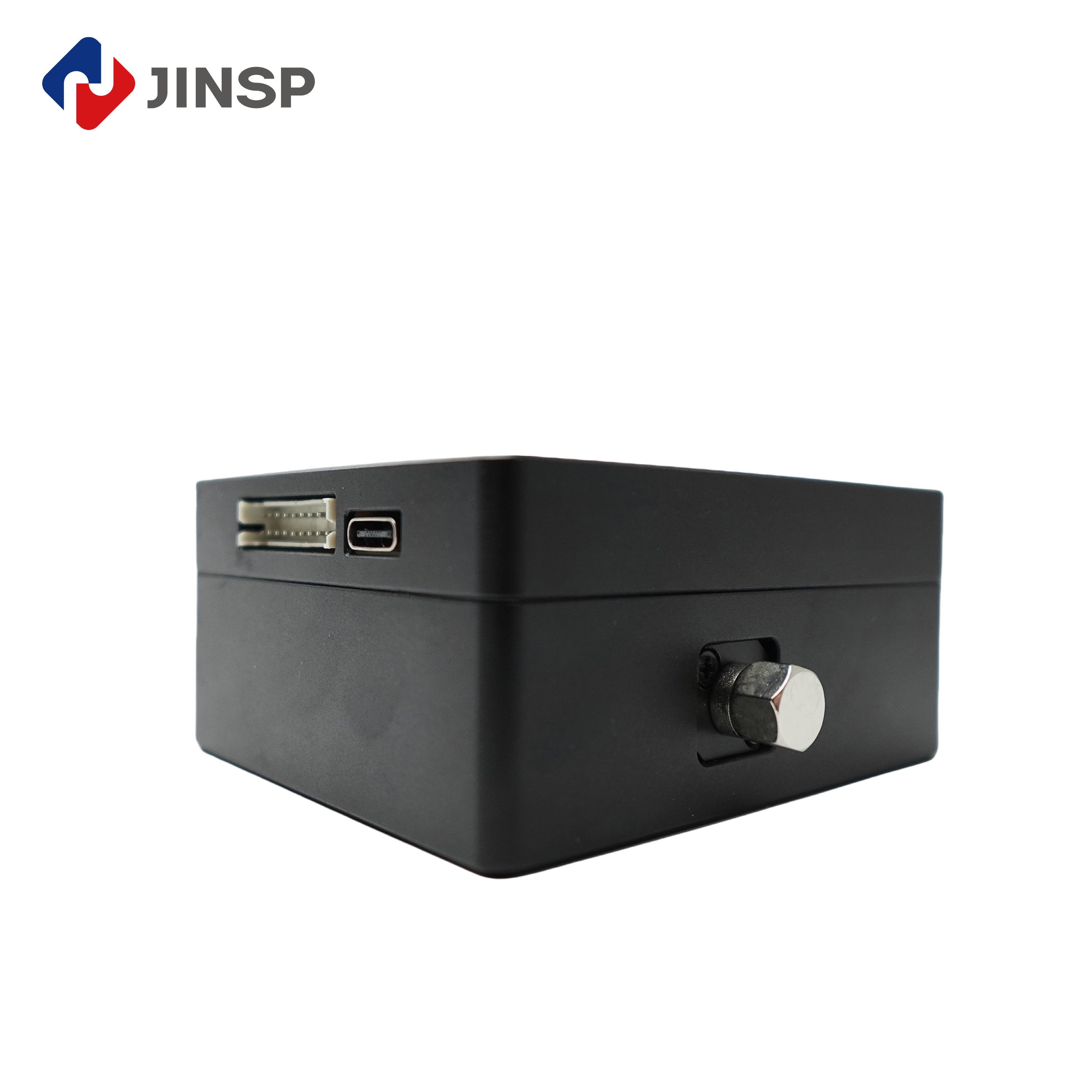

Highly Sensitive Mini Portable NIR Spectrometer For Measurements 900nm-1700nm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Features:	Compact And Low Cost, High Resolution, Compatible With USB Or UART Interface To Output Measured Spectrum Data, Receive SMA905 Fiber Input To Obtain Free Space Optical, Lens Surface Is Plated With Gold Film, High Efficiency Of Near-infrared Reflection	Cell Size:	50μm*250μm
Product Name:	High-Performance Near-infrared Fiber Spectrometer For Industrial Applications	Wavelength Range:	900-1700nm
Entrance Slit:	10μm, 25μm And 50μm	Integration Time:	1ms-5s
Technical Parameters:	Product Name: Near Infrared Non-cooled Spectrometer, Wavelength Range: 900-1700nm, Chip Type: Linear Array InGaAs, Entrance Slit Width: 5μm, 10μm, 25μm, 50μm (customizable), Incident Light Interface: SMA905, Free Space, Integration Time: 1ms-5s, Operating	Applications:	Moisture Content Measurement, Waste Water Testing, Detection Of Substances Such As Fat, Oil, Protein, Fiber Etc., Grain And Fodder Quality Testing, Measurement Of Pharmaceutical Mixture Components
Highlight:	Highly Sensitive Portable NIR Spectrometer , 1700nm near ir spectrometer , Portable NIR Spectrometer 900nm

Product Description

Highly Sensitive Mini Portable NIR Spectrometer For Measurements 900nm-1700nm

Product Overview

The High-Performance Near-infrared Fiber Spectrometer is a compact, cost-effective solution for industrial applications requiring precise spectral analysis in the 900-1700nm range. With 17 years of spectroscopic technology expertise, JINSP Company Limited delivers reliable instruments with comprehensive support.

Key Features

Compact design with high resolution capabilities
USB/UART interface compatibility for spectrum data output
SMA905 fiber input for free space optical acquisition
Gold film plated lens surface for enhanced near-infrared reflection
Customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)
Flexible integration time from 1ms to 5s
Linear array InGaAs chip technology

Technical Specifications

Parameter	Value
Wavelength Range	900-1700nm
Cell Size	50μm × 250μm
Entrance Slit Options	10μm, 25μm, 50μm (customizable)
Integration Time	1ms-5s
Interface	SMA905, free space
Certification	CE Certified

Industrial Applications

Moisture content measurement in various materials
Waste water quality testing and analysis
Detection of fat, oil, protein, and fiber content
Grain and fodder quality assessment
Pharmaceutical mixture component measurement

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
Customization options for specific applications
Professional technical operation training
Installation and setup assistance
Calibration and maintenance services

Company Profile

JINSP Company Limited brings 17 years of spectroscopic technology development experience, offering over twenty spectroscopic products across pharmaceutical, chemical, public security, and customs applications. With nationwide availability and exports to 30+ countries, JINSP has sold over 3,000 units globally.

Frequently Asked Questions

What is the brand and model of this product?

Brand: JINSP, Model: SR50R

Where is this product manufactured?

Manufactured in China with CE certification

What are the order and payment details?

Minimum order: 1 unit, negotiable pricing, payment via T/T or Western Union, delivery in 30-50 working days with customized packaging
