High Performance Near Infrared Fiber Spectrometer For Waste Water Testing

Contact Now

High Performance Near Infrared Fiber Spectrometer For Waste Water Testing

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	FAQ:	Q1:This Is The First Time I Use,is It Easy To Operate?, A1:We Will Send You Manual And Guide Vedio In English,it Can Teach You How To Operate The Spectrometer. Also Our Technicians Will Offer Professional Tecnical Opearation Meetings. Q2:Can You Offer A Op
Company Profile And Exhibition:	JINSP Company Limited Originates From Tsinghua University And Has 17 Years Of Experience In Developing Spectroscopic Technology.As A Leading Supplier Of Spectroscopic Technology, JINSP Technology Offers Over Twenty Spectroscopic Products Across Various Fie	Sensitive Area:	6.4mm*0.25mm
Data Output Interface:	USB2.0, UART	Type:	Linear Array InGaAs
Product Category:	Fiber Optic Spectrometers	Product Name:	High-Performance Near-infrared Fiber Spectrometer For Industrial Applications
Highlight:	High Performance Fiber Spectrometer , Waste Water Testing Fiber Spectrometer , Waste Water Testing nir spectrometer

Product Description

High Performance Near Infrared Fiber Spectrometer For Waste Water Testing

Product Overview

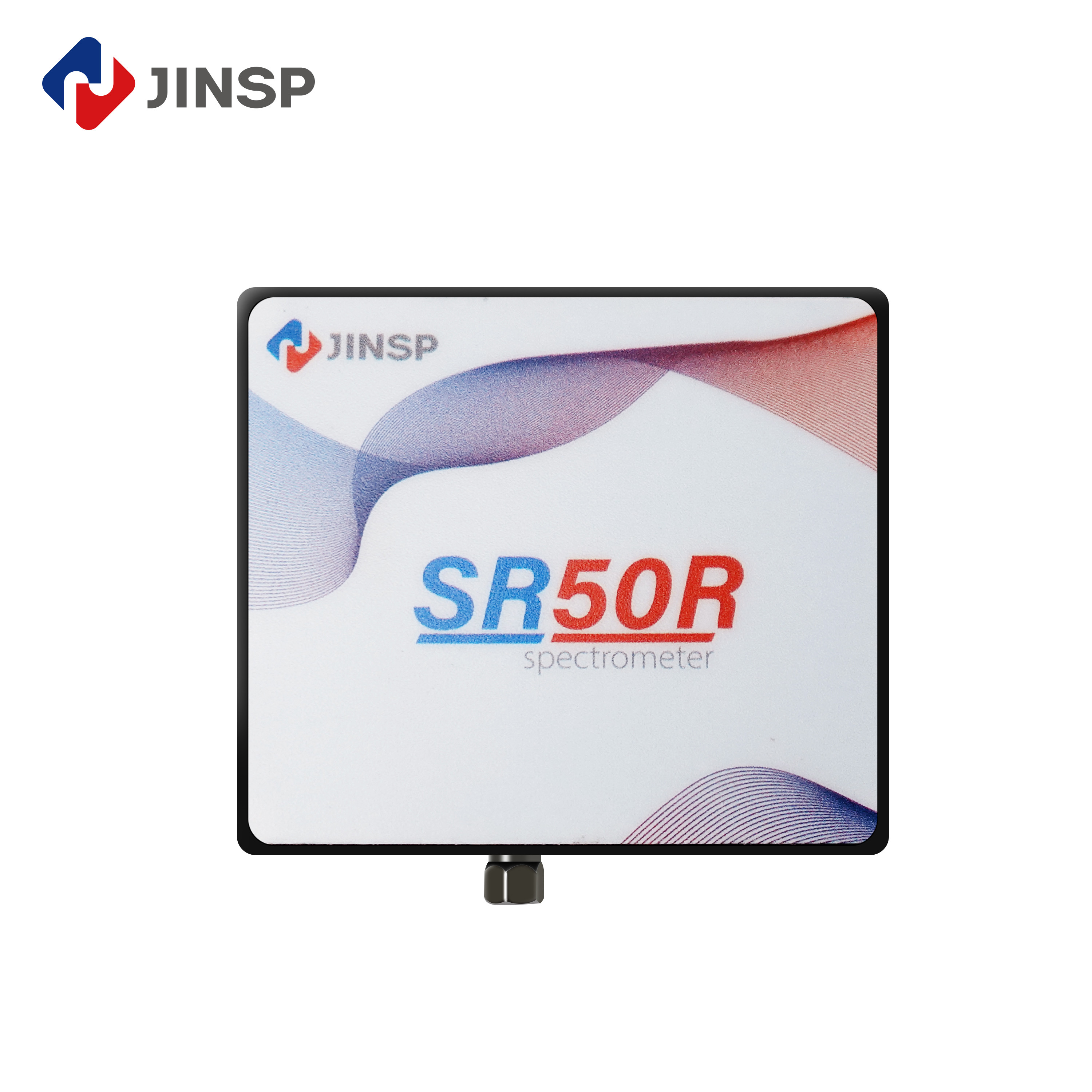

The JINSP SR50R Near Infrared Fiber Spectrometer is a high-performance, non-cooled spectrometer designed for industrial applications including wastewater testing, moisture content measurement, and pharmaceutical mixture analysis. With 128 effective pixels (upgradable to 256), this spectrometer delivers accurate and sensitive results across a wavelength range of 900-1700nm.

Key Features

Linear Array InGaAs chip type for precise measurements
Customizable entrance slit width (5μm, 10μm, 25μm, 50μm)
SMA905 incident light interface with free space integration
USB2.0 and UART data output interfaces
Compact dimensions (77mm×67mm×36mm) and lightweight (0.4KG)
Operates in environments with humidity <90% RH (no condensation)

Technical Specifications

Parameter	Specification
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
Integration Time	1ms-5s
Effective Pixels	128 (256 Optional)
Cell Size	50μm×250μm
Sensitive Area	6.4mm×0.25mm

Applications

Wastewater testing and analysis
Moisture content measurement
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Ordering Information

Brand:

JINSP

Model Number:

SR50R

Certification:

CE Certified

Minimum Order Quantity:

1 unit

Delivery Time:

30-50 working days

Payment Terms:

T/T, Western Union

Support & Services

Comprehensive technical support for installation and operation
Professional calibration services
Repair and replacement services
English operation manual and guide video included
Technical operation meetings available

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide an English operation manual and guide video, along with professional technical operation meetings to ensure easy setup and use.

What is included in the product packaging?

Each spectrometer comes with 1 USB cable and 1 user manual in customized packaging.
