Non Cooled Near Infrared Spectrometer For Environmental Monitoring

Contact Now

Non Cooled Near Infrared Spectrometer For Environmental Monitoring

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Features:	Compact And Low Cost, High Resolution, Compatible With USB Or UART Interface To Output Measured Spectrum Data, Receive SMA905 Fiber Input To Obtain Free Space Optical, Lens Surface Is Plated With Gold Film, High Efficiency Of Near-infrared Reflection	Company Profile And Exhibition:	JINSP Company Limited Originates From Tsinghua University And Has 17 Years Of Experience In Developing Spectroscopic Technology.As A Leading Supplier Of Spectroscopic Technology, JINSP Technology Offers Over Twenty Spectroscopic Products Across Various Fie
Cell Size:	50μm*250μm	Support And Services:	Expert Technical Assistance And Troubleshooting, Comprehensive Product Documentation And User Manuals, Software Updates And Upgrades, Customization Options To Fit Specific Application Needs
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Type:	Linear Array InGaAs	Applications:	Moisture Content Measurement, Waste Water Testing, Detection Of Substances Such As Fat, Oil, Protein, Fiber Etc., Grain And Fodder Quality Testing, Measurement Of Pharmaceutical Mixture Components
Highlight:	Non cooled Near Infrared Spectrometer , Environmental Monitoring Near Infrared Spectrometer , Environmental Monitoring nir spectrometer

Product Description

Non Cooled Near Infrared Spectrometer For Environmental Monitoring

Product Overview

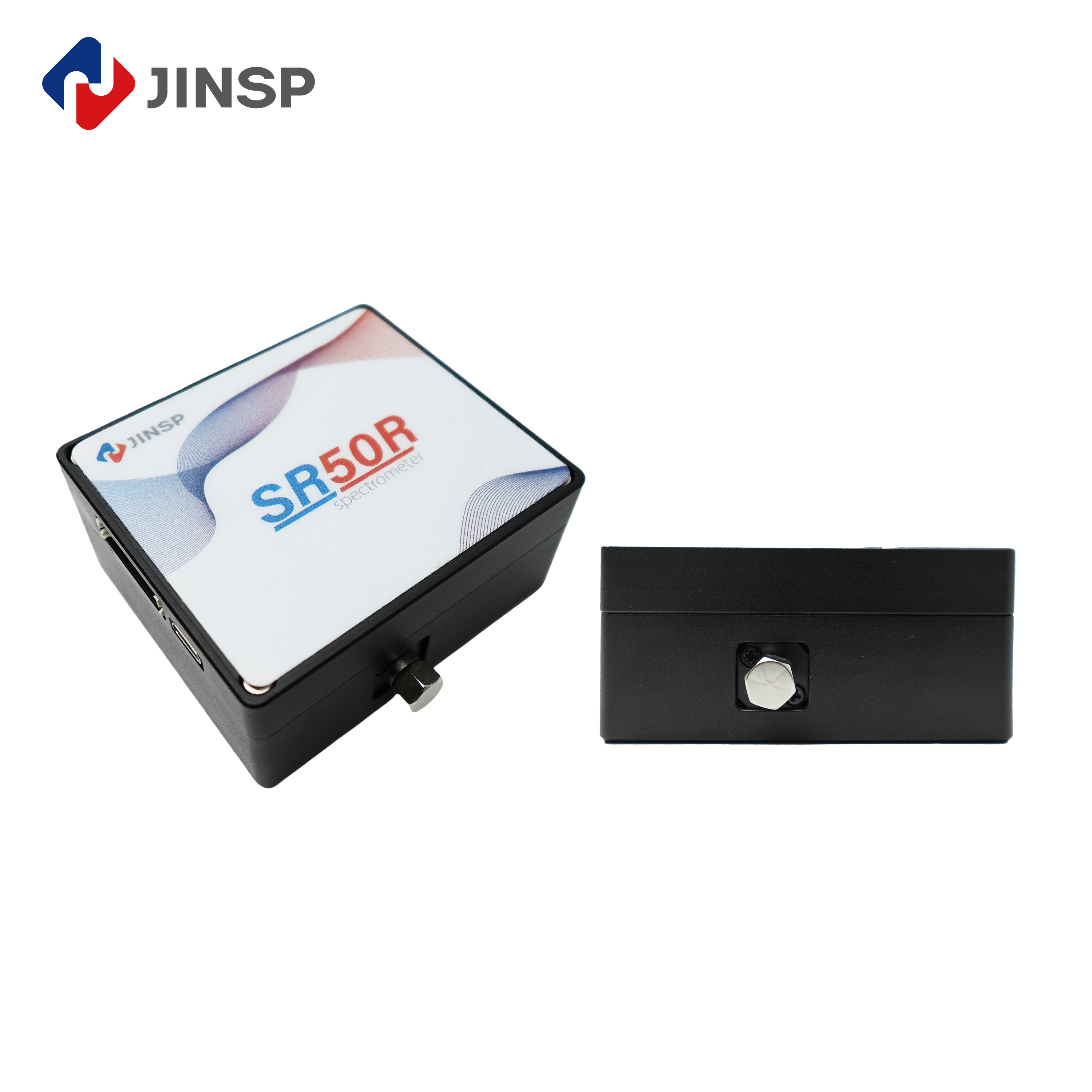

The JINSP SR50R17 is a compact, cost-effective 900nm~1700nm near-infrared spectrometer using a non-cooled InGaAs sensor with high sensitivity and resolution. Designed for industrial applications, it offers precise spectral analysis with flexible configuration options.

Key Features

Compact design with low operational cost
High resolution spectral analysis
Dual interface compatibility (USB 2.0 and UART)
SMA905 fiber input for free space optical measurements
Gold film plated lens surface for enhanced near-infrared reflection
Customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)

Technical Specifications

Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Cell Size	50μm × 250μm
Sensitive Area	6.4mm × 0.25mm
Integration Time	1ms-5s
Effective Pixels	128 (256 Optional)
Dimensions	77mm × 67mm × 36mm
Weight	0.4KG
Operating Humidity	<90%RH (no condensation)

Industrial Applications

Moisture content measurement in various materials
Wastewater quality testing and analysis
Detection and measurement of fat, oil, protein, and fiber content
Grain and fodder quality assessment
Pharmaceutical mixture component analysis
Potential use as Raman spectrometer

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Regular software updates and upgrades
Customization options for specific application needs
Installation and setup assistance
Calibration and validation services

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name is JINSP.

Q: What is the model number?

A: The model number is SR50R.

Q: Is this product certified?

A: Yes, it is CE certified.

Q: Where is this product manufactured?

A: Manufactured in China.

Q: What are the payment terms?

A: Payment terms include T/T and Western Union.
