High Resolution NIR Optical Fiber Spectrometer With UART Data Output Interface

Contact Now

High Resolution NIR Optical Fiber Spectrometer With UART Data Output Interface

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Technical Parameters:	Product Name: Near Infrared Non-cooled Spectrometer, Wavelength Range: 900-1700nm, Chip Type: Linear Array InGaAs, Entrance Slit Width: 5μm, 10μm, 25μm, 50μm (customizable), Incident Light Interface: SMA905, Free Space, Integration Time: 1ms-5s, Operating	Data Output Interface:	USB2.0, UART
FAQ:	Q1:This Is The First Time I Use,is It Easy To Operate?, A1:We Will Send You Manual And Guide Vedio In English,it Can Teach You How To Operate The Spectrometer. Also Our Technicians Will Offer Professional Tecnical Opearation Meetings. Q2:Can You Offer A Op	Effective Pixels:	128 (256 Optional)
Entrance Slit:	10μm, 25μm And 50μm	Integration Time:	1ms-5s
Company Profile And Exhibition:	JINSP Company Limited Originates From Tsinghua University And Has 17 Years Of Experience In Developing Spectroscopic Technology.As A Leading Supplier Of Spectroscopic Technology, JINSP Technology Offers Over Twenty Spectroscopic Products Across Various Fie	Sensitive Area:	6.4mm*0.25mm
Highlight:	NIR Optical Fiber Spectrometer , High resolution Optical Fiber Spectrometer , High resolution near ir spectrometer

Product Description

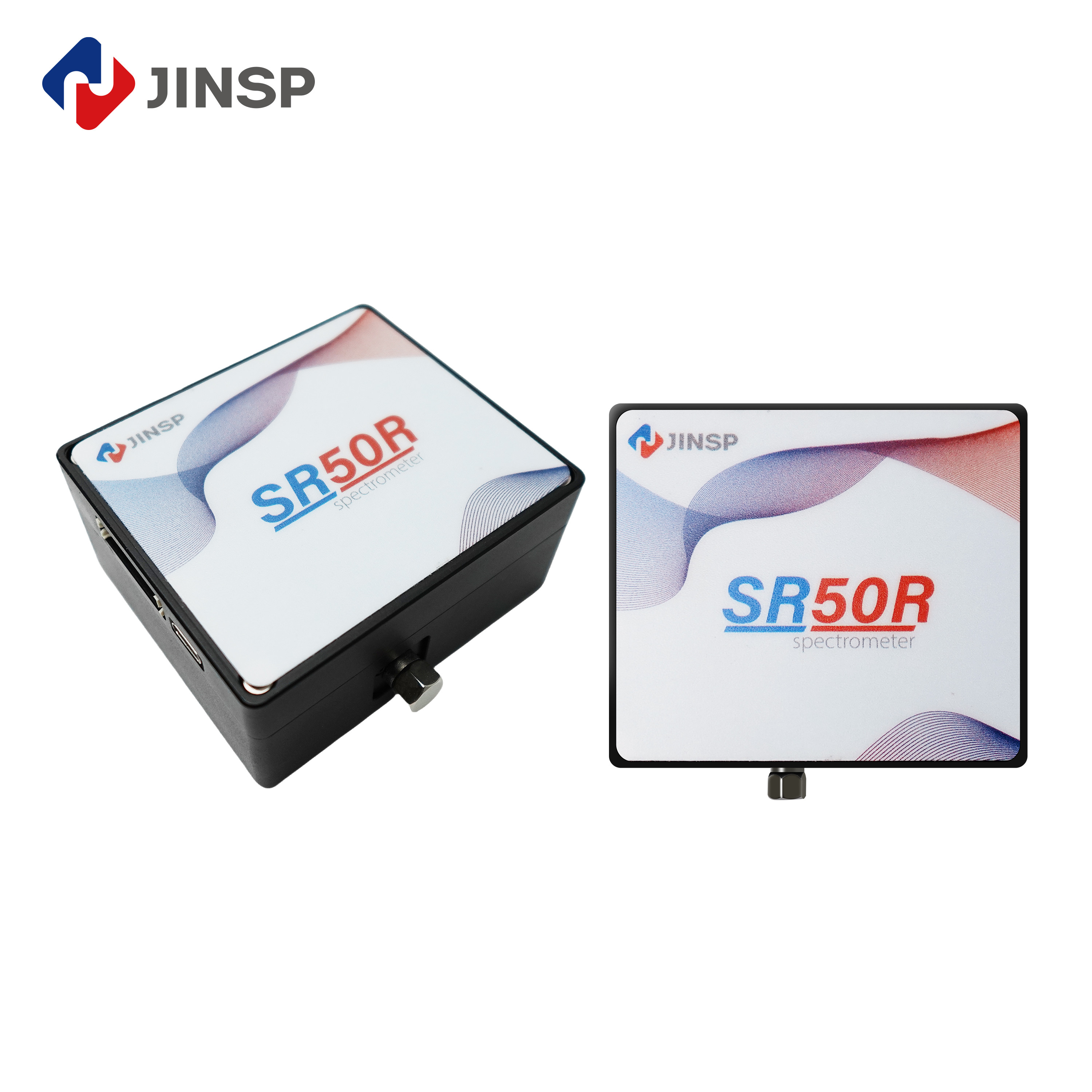

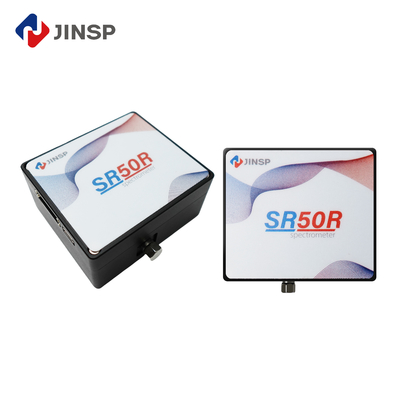

High Resolution NIR Optical Fiber Spectrometer With UART Data Output Interface

Product Overview

The JINSP SR50R17 is a high-performance near-infrared fiber spectrometer featuring a compact design, high resolution, and compatibility with USB or UART interfaces for spectrum data output. Ideal for various industrial and scientific applications requiring precise near-infrared spectral analysis.

Key Features

Wavelength Range: 900-1700nm
Linear array InGaAs detector chip
Customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)
SMA905 and free space incident light interfaces
Compact dimensions: 77mm × 67mm × 36mm
Lightweight: 0.4KG
Gold-plated lens surface for high near-infrared reflection efficiency
USB2.0 and UART data output interfaces

Technical Specifications

Parameter	Specification
Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Effective Pixels	128 (256 Optional)
Sensitive Area	6.4mm × 0.25mm
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)

Applications

The SR50R spectrometer is suitable for various industrial and scientific applications including:

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support & Services

Our comprehensive support package includes:

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
Customization options for specific application needs
Installation and setup guidance
Calibration support

Company Profile

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier of spectroscopic technology, JINSP offers over twenty spectroscopic products across various fields.

Frequently Asked Questions

Q: Is this product easy to operate for first-time users?

A: We provide an English manual and guide video, along with professional technical operation meetings. Additional training is available at our factory or your location.

Q: What is the minimum order quantity?

A: The minimum order quantity is 1 unit.

Q: What certifications does this product have?

A: The product is CE certified.
