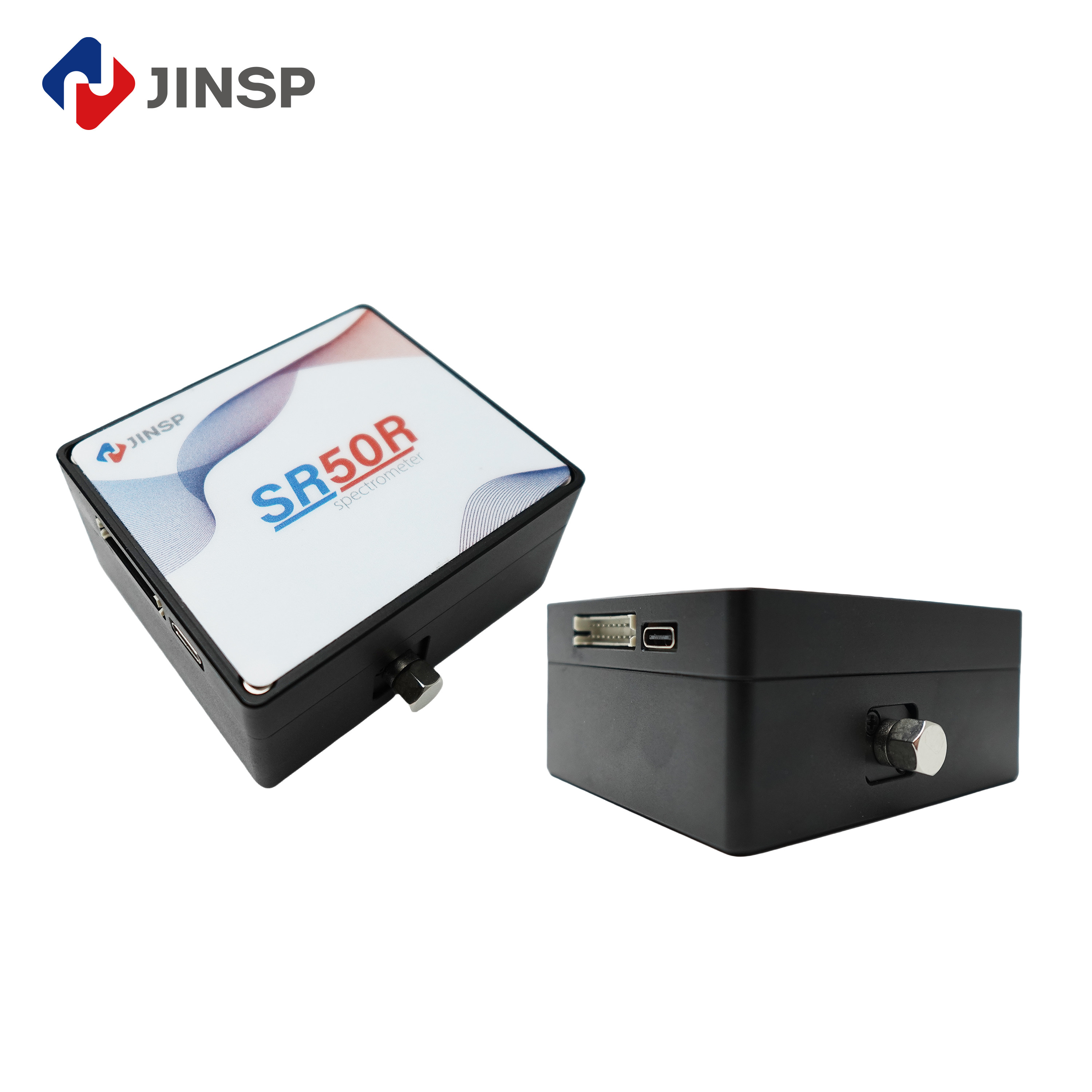

Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50R
Document: Product Brochure PDF

Detail Information
Cell Size: 50μm*250μm Data Output Interface: USB2.0, UART
Wavelength Range: 900-1700nm Effective Pixels: 128 (256 Optional)
Product Details: The JINSP SR50R17 Is A Compact, Cost-effective 900nm~1700nm Near-infrared Spectrometer, Using A Non-cooled InGaAs Sensor With High Sensitivity And Resolution.Typical Applications:Moisture Content Measurement, Wastewater Testing.Detection Of Substances Such Product Name: High-Performance Near-infrared Fiber Spectrometer For Industrial Applications
Entrance Slit: 10μm, 25μm And 50μm Integration Time: 1ms-5s
Highlight:

Non Cooled Fiber Optic Spectrometer

,

Fiber Optic Spectrometer Multipurpose

,

Non Cooled optical fiber spectrometer

Product Description

Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose
Product Overview

The JINSP SR50R17 is a compact, cost-effective 900nm~1700nm near-infrared spectrometer, using a non-cooled InGaAs sensor with high sensitivity and resolution.

Attribute Value
Cell Size 50μm*250μm
Data Output Interface USB2.0, UART
Wavelength Range 900-1700nm
Effective Pixels 128 (256 Optional)
Entrance Slit 10μm, 25μm And 50μm
Integration Time 1ms-5s
Product Description

The High-Performance Near-infrared Fiber Spectrometer for Industrial Applications is a versatile device that can be used for a variety of applications. It is an excellent choice for Raman spectrometer, and it also performs well in the measurement of pharmaceutical mixture components.

Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 0 Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 1 Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 2
Technical Specifications
Product Name Near Infrared Non-cooled Spectrometer
Type Linear Array InGaAs
Mini spectrometer Yes
Entrance Slit width 5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface SMA905, free space
Operating Humidity <90%RH (no condensation)
Dimensions 77mm*67mm*36mm
Weight 0.4KG
Applications

The JINSP SR50R17 non-cooled spectrometer is a perfect fit for a wide range of applications:

  • Moisture content measurement
  • Wastewater testing
  • Detection of substances such as fat, oil, protein, fiber etc.
  • Grain and fodder quality testing
  • Measurement of pharmaceutical mixture components

The JINSP SR50R17 is a CE-certified product that is made in China.

Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 3 Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 4 Non Cooled Fiber Optic Spectrometer With UART Data Output Interface Multipurpose 5
Support and Services

Our product technical support team is available to assist you with any issues you may encounter with the instrument, including troubleshooting, calibration, and software updates. We offer:

  • Training services (on-site and remote options)
  • Repair and maintenance services
  • Customization services for specific application needs
  • Special software features and custom calibration curves
Packaging Details
  • Near-infrared Fiber Spectrometer unit
  • USB cable
  • User manual
Frequently Asked Questions
Q: What is the brand name of the Near-infrared Fiber Spectrometer product?
A: The brand name of the product is JINSP.
Q: What is the model number of the Near-infrared Fiber Spectrometer product?
A: The model number of the product is SR50R.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
Q: What are the available payment terms?
A: Available payment terms are T/T and Western Union.
Q: What is the supply ability?
A: 100 PCS within 70-90 days.
Q: What is the delivery time?
A: 30-50 working days.
Q: What are the packaging details?
A: Customized packaging available.
Q: Is the price negotiable?
A: Yes, the price is negotiable.
