High Throughput Transmission Spectrometer Quick And Accurate Measurements

Contact Now

High Throughput Transmission Spectrometer Quick And Accurate Measurements

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST50S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	1080nm~1330nm	Detector:	Line Array CMOS
Effective Pixels:	512*1	Cell Size:	25μm*500μm
Optical Resolution:	0.2-2nm	The Width Of The Incident Slit:	6 Cm-1 (25 μm)8 Cm-1(50 μm)
Highlight:	High Throughput Transmission Spectrometer , Transmission Spectrometer Quick Measurements , Quick Measurements transmission spectrophotometer

Product Description

ST50S High Throughput Transmission Spectrometer

Quick and accurate measurements with exceptional optical performance for industrial and research applications.

Key Features

VPH transmission grating with ~90% diffraction efficiency
Hamamatsu 2-step refrigeration InGaAs sensor for high sensitivity
Twice the resolution of standard spectrometers
Compact design suitable for industrial integration
Ideal for 1064nm Raman spectroscopy detection systems

Technical Specifications

Parameter	Specification
Wavelength Range	1080nm~1330nm (140~1880cm⁻¹)
Detector	Line array CMOS
Effective pixels	512*1
Cell size	25μm*500μm
Optical resolution	0.2-2nm
Incident slit width	6 cm⁻¹ (25 μm) / 8 cm⁻¹ (50 μm)
Grating Type	VPH volume holographic transmission grating
Fiber Interface	SMA905 or Ф10mm multi-core optical fiber
Integration Time	1ms-3600s
Dimensions	350.6 × 150.3 × 109.7 (mm)
Weight	<4kg (including camera)

Applications

Research-grade Raman spectroscopy detection systems
1064nm Confocal Raman microscopy
Industrial Raman system integration
Chemical industry online monitoring
Biopharmaceutical analysis

Complete Spectrometer Solutions

JINSP offers a full product line including miniature spectrometers, near-infrared spectrometers, deep cooling spectrometers, transmission spectrometers, and OCT spectrometers to meet diverse industrial and research requirements.

About JINSP

Originating from Tsinghua University with 17 years of spectroscopic technology experience, JINSP is a leading supplier offering over twenty spectroscopic products across pharmaceutical, chemical, public security, and customs applications. Our products are available nationwide and exported to over 30 countries with cumulative sales exceeding 3,000 units.

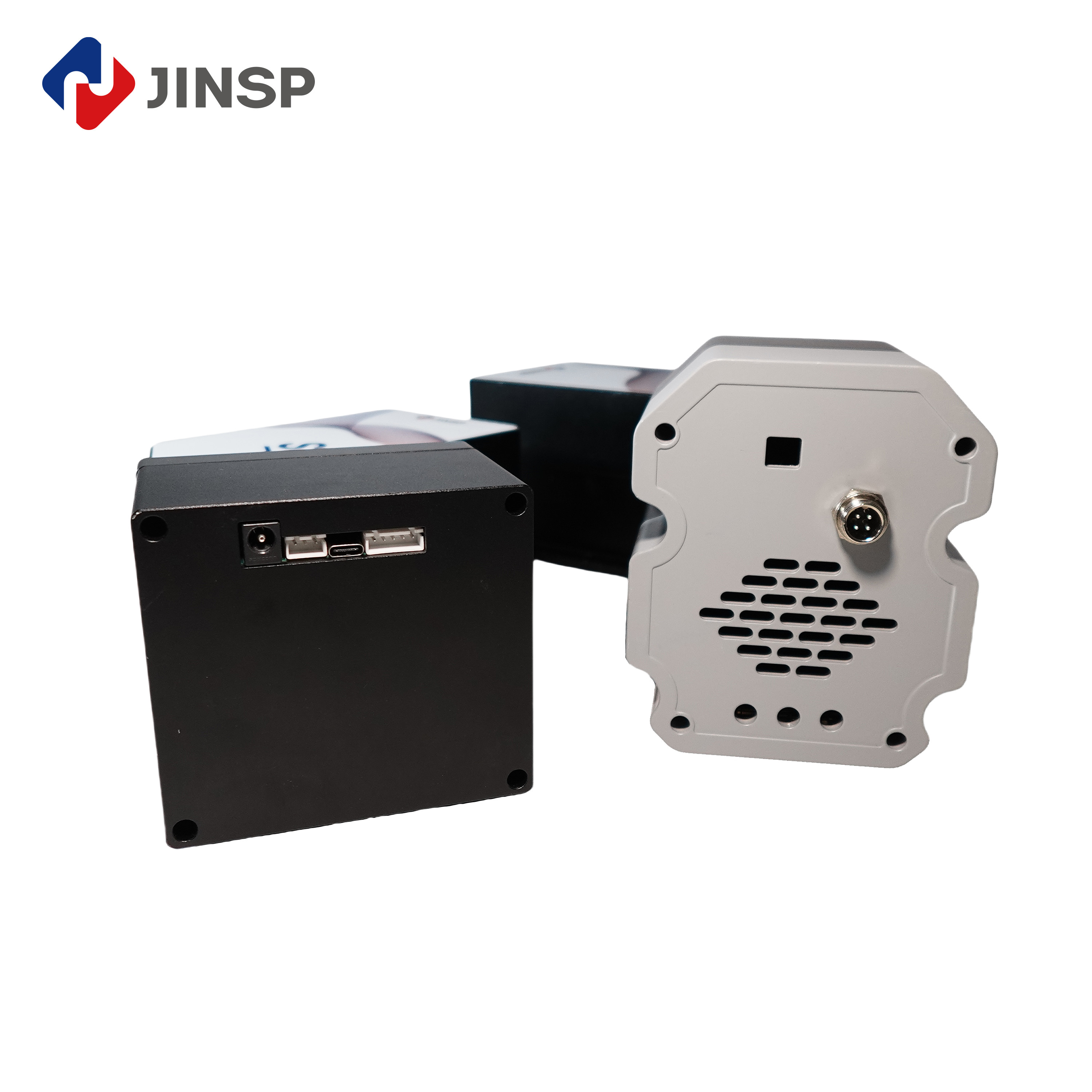

Product Images

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide an English manual and instructional video, along with professional technical operation meetings conducted by our technicians.

Do you offer operation training?

Your technicians can receive training at our factory, or our engineers can provide local support including installation, training, debugging, and maintenance at your location.

How can I receive the best price quickly?

Please provide detailed requirements including wavelength, detector type, effective pixels, and focal length when inquiring. We will promptly send a detailed quotation to your email.

What if I encounter problems with the spectrometer?

The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Which payment methods do you accept?

We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
