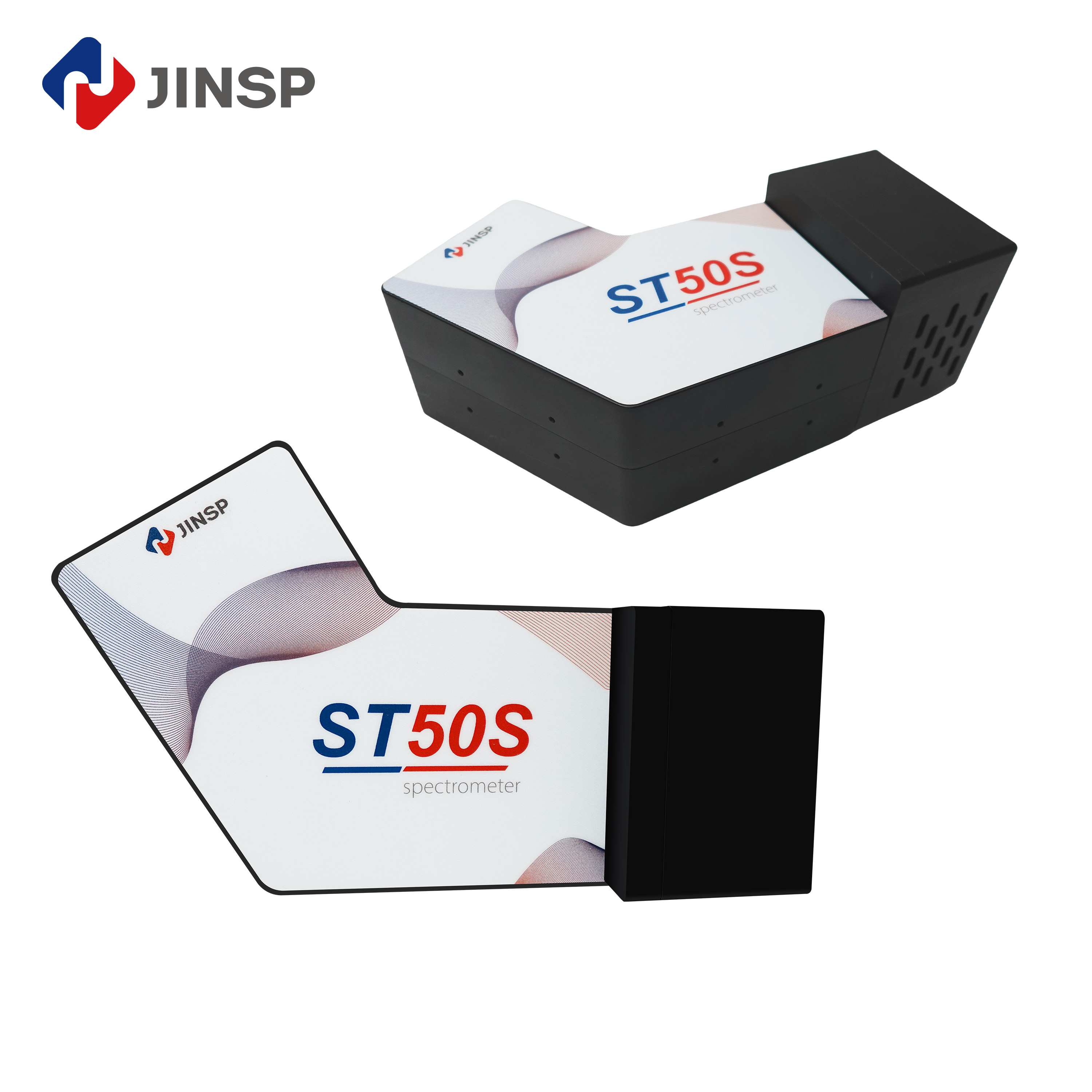

SMA905 High Throughput Transmission Fiber Spectrometer Effective Pixels 512*1

Contact Now

SMA905 High Throughput Transmission Fiber Spectrometer Effective Pixels 512*1

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO90001	Model Number:	ST50S
Document:	Product Brochure PDF

Detail Information
Diffraction Efficiency:	Approximately 90%	Grating Type:	VPH Volume Holographic Transmission Grating
Applications:	Research-grade Raman Spectroscopy Detection System, 1064nm Confocal Raman Microscopy, Integration Of Industrial Raman System, Chemical Industry Online, Biopharmaceuticals	Dimensions:	25315293(mm)
Fiber Interface:	SMA905 Or Ф10mm Multi-core Optical Fiber	Weight:	<4kg (including Camera)
Highlight:	High Throughput Transmission Fiber Spectrometer , SMA905 Fiber Spectrometer , SMA905 spectroscopy instrument

Product Description

SMA905 High Throughput Transmission Fiber Spectrometer with 512*1 Effective Pixels

Key Specifications

Diffraction Efficiency	Approximately 90%
Grating Type	VPH volume holographic transmission grating
Dimensions	253×152×93(mm)
Fiber Interface	SMA905 or Ф10mm multi-core optical fiber
Weight	<4kg (including camera)

Product Overview

The High-Throughput Transmission Fiber Spectrometer is a research-grade instrument designed for precise spectral analysis. With compact dimensions of 253×152×93(mm), it fits easily in laboratory settings while offering professional-grade performance.

Technical Parameters

Cell Size	25μm×500μm
Integration Time	1ms-3600s
Detector	Line Array CMOS
Effective Pixels	512×1

Performance Features

Wavelength Range: 1080nm~1330nm
Incident Slit Width: 6 Cm-1 (25 μm) or 8 Cm-1 (50 μm)
Optical Resolution: 0.2-2nm
High diffraction efficiency (~90%)

Applications

The ST50S spectrometer is ideal for demanding research and industrial applications:

Research-grade Raman spectroscopy detection systems
1064nm Confocal Raman microscopy
Industrial Raman system integration
Chemical industry online monitoring
Biopharmaceutical analysis

Product Attributes

Brand Name	JINSP
Model Number	ST50S
Place of Origin	China
Minimum Order Quantity	1 unit

Support & Services

Installation and setup guidance
Comprehensive user training
Technical assistance and troubleshooting
Calibration and maintenance services

Packaging & Shipping

The spectrometer is securely packaged in sturdy cardboard with protective materials. Shipping via reputable courier includes tracking information. Delivery times range from 40-70 working days.

Frequently Asked Questions

What is the price of this product?

Price is negotiable based on order quantity and configuration.

What are the payment terms?

We accept T/T and Western Union payments.

What is the supply capacity?

Production capacity is 100 units per 70-90 days.
