Multi Channels Lab Online Process Raman Spectroscopy Instruments High Accuracy

Contact Now

Multi Channels Lab Online Process Raman Spectroscopy Instruments High Accuracy

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-80 working days
Payment Terms :	T/T	Supply Ability :	100PCS Per Month

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2000-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional
Communication Protocols:	Modbus	Connectivity:	USB 2.0
Power Supply:	100 ~ 240 VAC, 50 ~ 60 Hz	Detection Accuracy:	0.5%
Highlight:	Multi Channels Raman Spectroscopy Instruments , Online Process Raman Spectroscopy Instruments , Multi Channels raman spectroscopy device

Product Description

Multi Channels Lab Online Process Raman Spectroscopy Instruments High Accuracy

Product Specifications

Attribute	Value
Laser Wavelength	785nm
Wavelength Accuracy	0.2nm
Wavelength Stability	0.01nm
Output Data Format	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional
Communication Protocols	Modbus
Connectivity	USB 2.0
Power supply	100 ~ 240 VAC, 50 ~ 60 Hz
Detection Accuracy	0.5%

785nm Laser Four Multi-channel Online Process Raman Analytical Instrument

JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production. It enables in-situ, real-time, continuous, and rapid online monitoring of the content of each component in reactions.

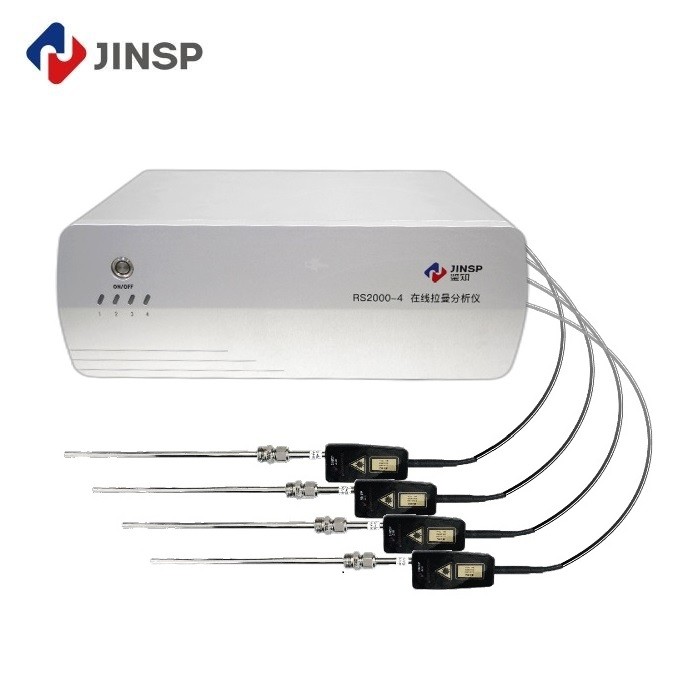

JINSP RS2000-4 is designed with a 4-channel optical probe for switching online analysis in multiple reaction systems, achieving simultaneous process control for multiple systems.

Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Laser wavelength	785nm
Wavelength accuracy	0.2 nm
Wavelength stability	0.01 nm
Sample Type	Liquid
Number of detection channels	four-channel switching detection
Standard Probe	1pc 1.3 m non-immersed fiber optic probe (PR100)
Software functions	Online Monitoring: Continuous real-time collection of single-channel signals Data Analysis: Capable of processing data through smoothing, peak finding, noise reduction Model Establishment: establishes a quantitative model using known content samples
Power supply	100 ~ 240 VAC ,50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Dimensions	496x312x185mm
N. Weight	≤10 kg

Applications

Li-ion battery industry: Research on the synthesis process of bis(fluorosulfonyl)amide
Biopharmaceutical industry: Drug crystal form research and consistency evaluation, Quality Control in Biofermentation Engineering
Fine chemical industry: Research on various chemical reaction processes
Analysis of Chemical Reactions/Biological Processes under extreme conditions: Suitable for strong acids, strong alkalis, high temperature, high pressure environments

Key Advantages

Accelerates process development and time-to-market for new products
Enhances production efficiency and capacity through continuous monitoring
Enables real-time intervention for precise reaction control
Reduces product defect rates and associated losses
Provides alarms for abnormal reactions to ensure process safety
Eliminates dangerous on-site sampling requirements

Usage Models

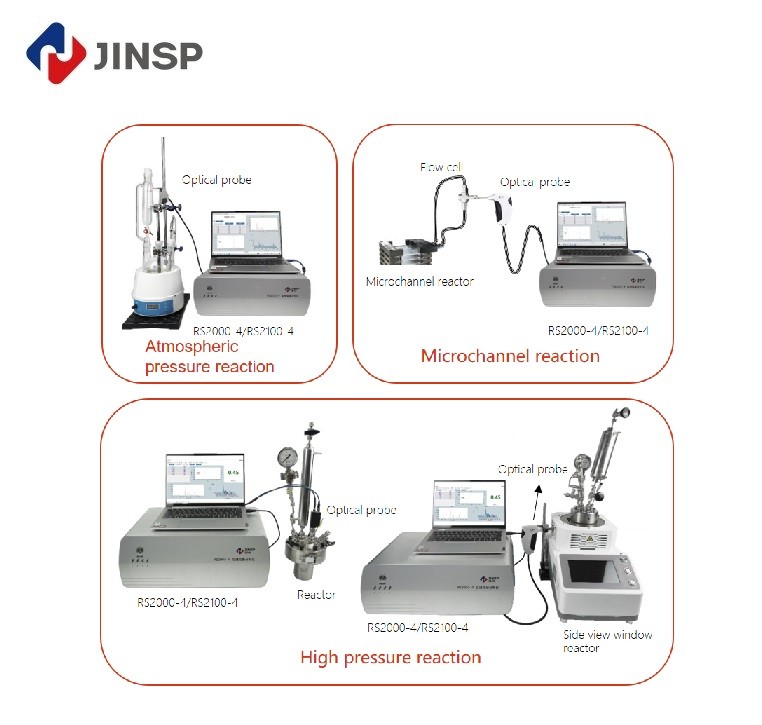

RS2000-4 has three usage modes in the laboratory, each requiring different accessories:

Immersed long probe for liquid level monitoring
Flow cell with bypass probe for microchannel reactors
Optical probe aligned with reaction vessel side window

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide an English manual and guide video, along with professional technical support from our technicians.

Q2: Can you offer an operation training?

A2: Training options include at our factory or on-site support from JINSP engineers for installation and training.

Q3: How to receive the best price in the shortest time?

A3: Provide detailed specifications with your inquiry for a prompt, accurate quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: The instrument includes a one-year warranty with free repairs for manufacturing defects.

Q5: What about quality assurance?

A5: All goods undergo rigorous quality inspection before shipment, with documentation available.
