0.2nm Wavelength Modbus Communication In-situ Raman Spectroscopy Analyzer
Key Specifications
| Attribute |
Value |
| Laser wavelength |
1064nm |
| Wavelength accuracy |
0.2nm |
| Wavelength stability |
0.01nm |
| Connectivity interface |
USB 2.0 |
| Output Data format |
spc standard spectrum, prn, txt and other formats |
| Communication protocols |
Modbus |
| Power supply |
100 ~ 240 VAC，50 ~ 60 Hz |
| Operating temperature |
0 ~ 40 ℃ |
| Power consumption |
50W |
| Detection Accuracy |
0.5% |
Product Overview

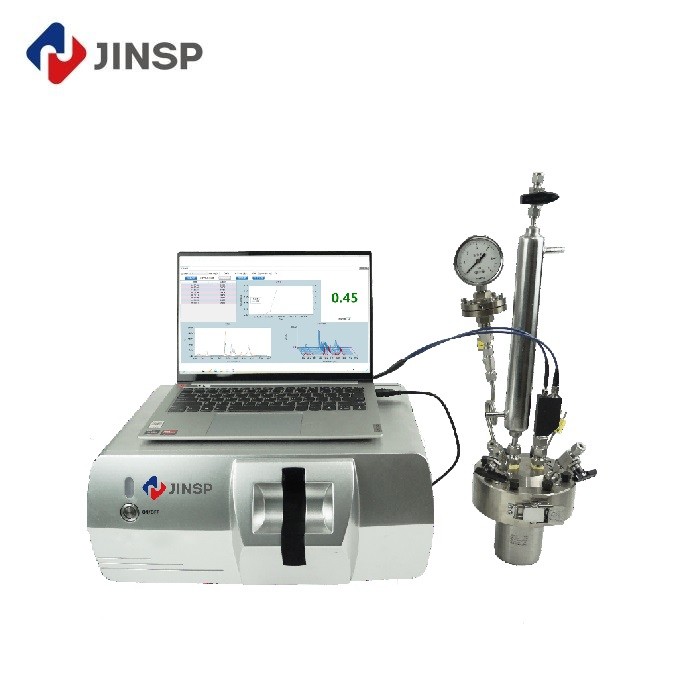

The RS2100 Raman Analyzer revolutionizes process analysis with its 1064nm laser-powered solution for in-situ chemical/biological monitoring. Engineered for harsh environments (extreme pH, corrosion, 500°C temperatures, 100bar pressure), this analytical instrument delivers second-scale responsiveness to accelerate reaction mechanism studies and optimize industrial processes.
Its non-invasive design eliminates sampling delays while maintaining system integrity, enabling continuous tracking of reaction endpoints and anomaly detection - transforming R&D efficiency and production quality assurance.
Technical Advantages
| Technical Parameter |
Value |
| Product |
Online Raman Analyzer |
| Measurement Type |
Raman Spectrometer |
| Sample Type |
Liquid |
| Number of detection channels |
1 single channel |
| Standard Probe |
1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL) |
| Dimensions |
300x356x185mm |
| Net Weight |
≤10 kg |
| Certifications |
CE ISO9001 |
Software Capabilities
- Online Monitoring: Continuous real-time collection of single-channel signals with intelligent analysis of unknown components
- Data Analysis: Processing through smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
- Model Establishment: Quantitative modeling using known content samples and automatic model building from real-time data
Industrial Applications
Li-ion battery industry - Research on synthesis process of bis(fluorosulfonyl)amide
Biopharmaceutical industry - Drug crystal form research and consistency evaluation
Quality Control in Biofermentation Engineering
Fine chemical industry - Process research and control
Ultra-low temperature nitrification reaction studies
o-Xylene nitration reaction process research

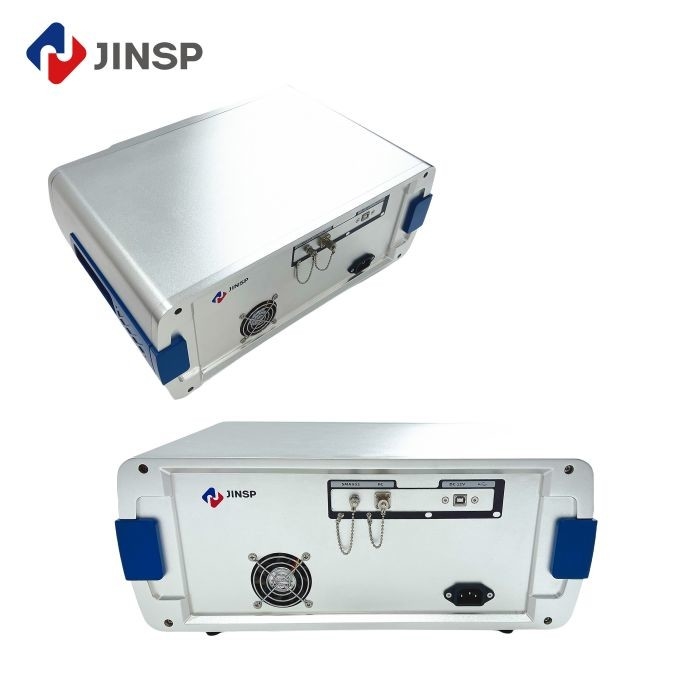

Product Images

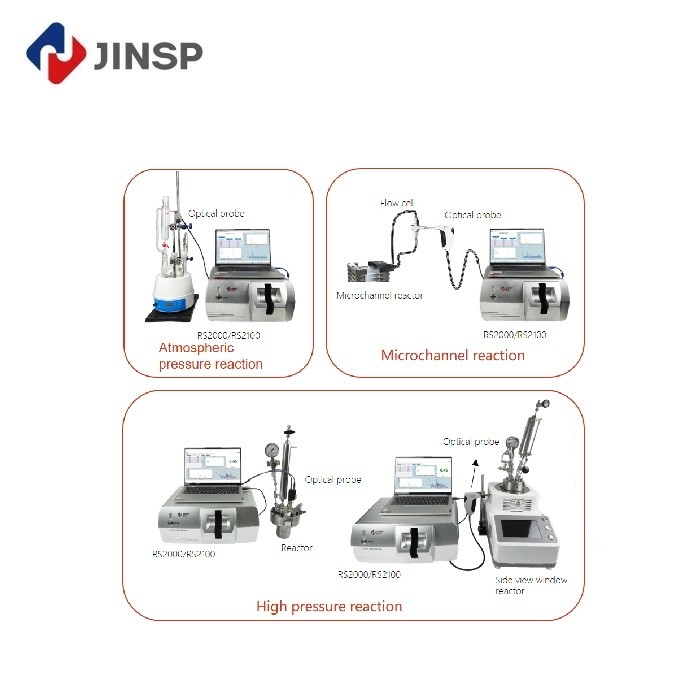

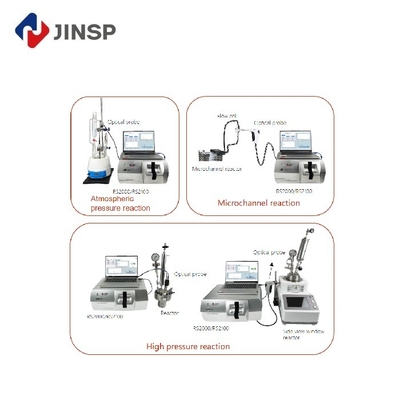

Usage Modes
- Immersed long probe mode for direct liquid level monitoring
- Flow cell with bypass probe for microchannel reactor applications
- Optical probe aligned with reaction vessel side window
About JINSP
JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology (Raman, FT-IR, LIBS). With 200+ patents and 30+ R&D engineers (including 4 Ph.D.), we offer customized solutions across pharmaceutical, chemical, public security, and customs sectors.
Our products are available nationwide and exported to 30+ countries, with cumulative sales exceeding 3,000 units.
Frequently Asked Questions
Q: Is this system easy to operate for first-time users?
A: We provide English manuals, guide videos, and professional technical support meetings.
Q: Do you offer operation training?
A: Training available at our factory or your location through JINSP engineers or local distributors.
Q: What is the minimum order quantity?
A: No MOQ - we accept orders for single units.
Q: What is the product warranty?
A: 1 year standard warranty, extendable with additional cost.
