785nm Laser Raman Spectrometer Laboratory Online Process Instruments 50W

Contact Now

785nm Laser Raman Spectrometer Laboratory Online Process Instruments 50W

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-80working days
Payment Terms :	TT	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2000
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50 W	Detection Accuracy:	0.5%
Highlight:	785nm Laser Raman Spectrometer , Laser Raman Spectrometer 50W , 785nm raman spectroscopy machine

Product Description

785nm Laser Raman Spectrometer Laboratory Online Process Instruments 50W

Product Specifications

Attribute	Value
Laser wavelength	785nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	spc standard spectrum, prn, txt and other formats are optional
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50 W
Detection Accuracy	0.5%

Product Overview

The JINSP RS2000A 785nm Laboratory Online Process Raman Spectrometer Analyzer provides advanced online monitoring solutions for chemical, pharmaceutical, and material process research and production. This cutting-edge instrument enables in-situ, real-time, continuous, and rapid online monitoring of component content during reactions.

The RS2000A has been extensively utilized in fine chemicals for elucidating reaction mechanisms, studying reaction kinetics, investigating crystal forms, and optimizing process development. Its real-time monitoring capability is particularly valuable for hazardous processes including nitration, chlorination, fluorination, hydrogenation, and diazotization.

Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Number of detection channels	1 single channel
Standard Probe	1pc 1.3 m non-immersed fiber optic probe (PR100) and 1pc 5 m immersed probe (PR200-HSGL)
Dimensions	375x360x185mm
Net Weight	≤10 kg
Certifications	CE ISO9001

Key Features

Fast: Results provided within seconds
In-situ: No sampling required
Universal: Multi-specification detection accessories compatible with different reactors
Intuitive: Real-time display of multi-component trend changes
Intelligent: Supports self-optimizing offline modeling and fully automatic online modeling

Applications

Li-ion battery industry: Research on the synthesis process of bis(fluorosulfonyl)amide

Biopharmaceutical industry: Drug crystal form research, consistency evaluation, quality control in biofermentation engineering

Fine chemical industry: Process research for furfuryl alcohol production, bioenzyme catalytic reactions, ultra-low temperature nitrification, o-xylene nitration reaction process

In processes like bio-fermentation and enzyme-catalyzed reactions, real-time monitoring of component levels enables timely intervention when needed. Online monitoring provides immediate component information, while offline detection with its delayed results may miss critical intervention windows.

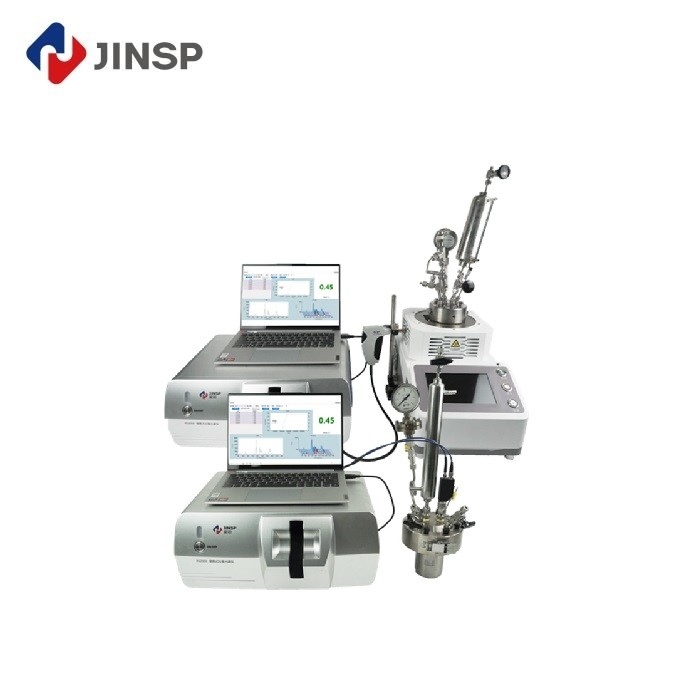

Usage Models

The RS2000A offers three operational configurations:

Immersed long probe for direct liquid level monitoring
Flow cell with bypass probe for microchannel reactors
Optical probe aligned with reaction vessel side window

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We provide an English manual and guide video, plus professional technical support from our engineers.

Q2: Can you offer an operation training?

A2: Training available at our factory or your location with Jinsp engineers.

Q3: How to receive the best price in the shortest time?

A3: Provide detailed specifications with your inquiry for a prompt quotation.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: One-year warranty includes free repairs with technician diagnosis.

Q5: What about quality assurance?

A5: All goods undergo quality inspection before shipment with documentation available.
