Transmission Raman Fiber Spectrometers Multi Core Optical Fiber Interface

Contact Now

Transmission Raman Fiber Spectrometers Multi Core Optical Fiber Interface

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	80 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Diffraction Efficiency:	>85%	Numerical Aperture:	0.25
Grating Type:	VPH Volume Holographic Transmission Grating	Weight:	<6kg (including Camera)
Company Profile And Exhibition:	JINSP Company Limited	Dimensions:	348.7mm×222.8mm ×126mm
Product Category:	Fiber Optic Spectrometers	Research-grade Ramanspectroscopy Detection System:	532 Confocal Raman Microscopy
Highlight:	Fiber Spectrometers Multi Core , Transmission Raman Fiber Spectrometers , Multi Core Fiber Raman Spectrometer

Product Description

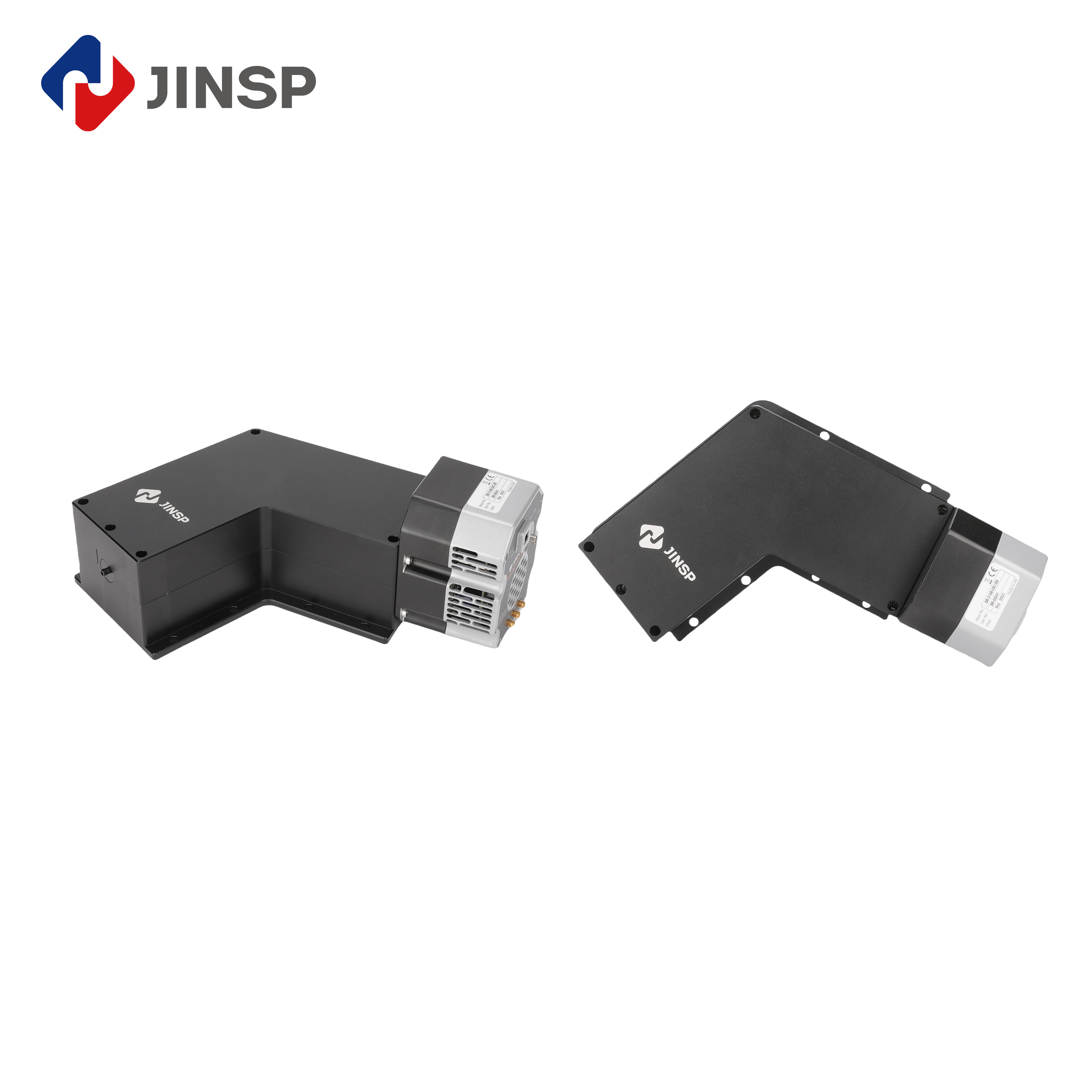

Transmission Raman Fiber Spectrometers Multi Core Optical Fiber Interface

Product Overview

The ST90S Transmission Raman Spectrometer is designed for 532nm laser Raman spectrum detection systems, particularly suited for gas Raman signal detection. With exceptional optical properties, a spectrum range up to 4200 cm^-1, and resolution up to 4 cm^-1, it can replace large imported reflection spectrometers used for scientific research.

Key Features

High-throughput transmission fiber spectrometer with SMA905 or Φ10mm multi-core optical fiber interface
Compact dimensions: 348.7mm × 222.8mm × 126mm
Optical resolution: 0.25nm (corresponds to 8cm^-1 with 50μm slit)
VPH Volume Holographic Transmission Grating with >85% diffraction efficiency
Integration time range: 1ms-3600s
Weight: <6kg (including camera)

Technical Specifications

Attribute	Value
Product Name	High-Throughput Transmission Raman Spectrometer
Product Category	Fiber Optic Spectrometers
Optical Resolution	0.25nm (8cm^-1 with 50μm slit)
Grating Type	VPH Volume Holographic Transmission Grating
Numerical Aperture	0.25
Diffraction Efficiency	>85%

Applications

Ideal for Raman transmission spectroscopy, transmission imaging spectroscopy, and other applications requiring high-resolution transmission imaging. Capable of online gas detection and process analysis in industrial Raman systems.

About JINSP Company Limited

Originating from Tsinghua University with 17 years of experience in spectroscopic technology development, JINSP is a leading supplier offering over twenty spectroscopic products across various fields including pharmaceutical, chemical industries, public security, and customs. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Packaging Information

Sturdy cardboard box packaging
Secure foam inserts for protection during transit
Includes power cord and user manual

Frequently Asked Questions

Q: What is the brand name of the high-throughput transmission fiber spectrometer?

A: The brand name is JINSP.

Q: What is the model number?

A: The model number is ST90S.

Q: Where is it manufactured?

A: Manufactured in China.

Q: What is the minimum order quantity?

A: Minimum order quantity is 1 unit.

Q: What is the price?

A: Price is negotiable.

Q: What are the payment terms?

A: T/T and Western Union.

Q: What is the delivery time?

A: 40-70 working days.
