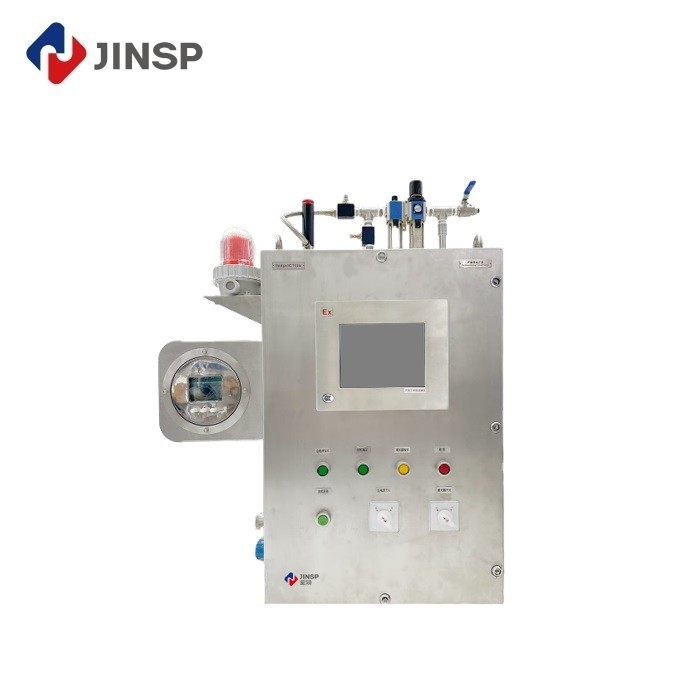

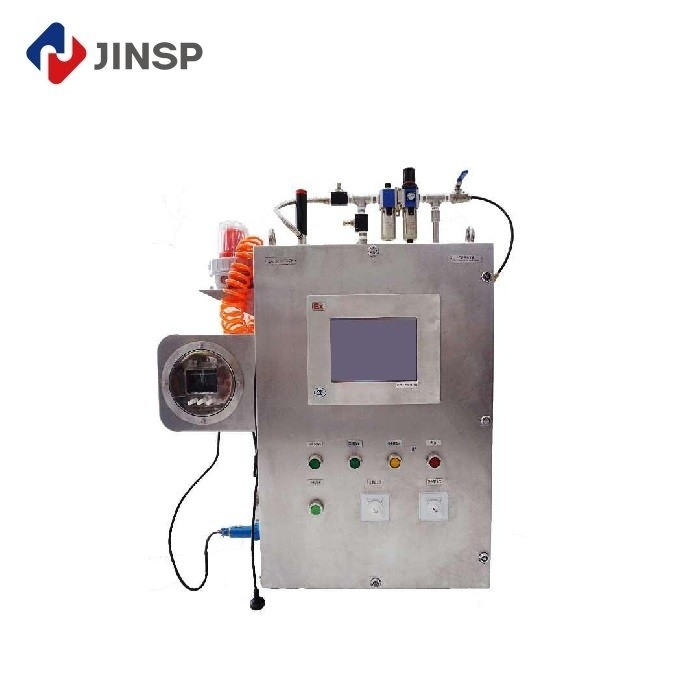

785nm Deep Cooling Single Channel Industrial Process Online Raman Spectroscopic Analyzer
Product Description:
The production processes in chemical, pharmaceutical, and materials engineering require continuous analysis and monitoring of components. JINSP provides on-site, online monitoring solutions for production, enabling in-situ, real-time, continuous, and rapid online monitoring of the content of various components in reactions. This helps to determine the reaction endpoint and to indicate abnormalities in the reaction.
JINSP® RS2000PAT online Raman analyzers provide in situ, real-time, and continuous composition analysis of chemical processes in the production environment.
RS2000PAT analyzers are highly suitable for dangerous chemical processes including nitration, chlorination, fluorination, hydrogenation, diazotization, etc. Available with both continuous flow processes and batch processes. RS2000PAT analyzers help increase process understanding and boost product quality.
Technical Highlights:
• In situ: no sampling required, avoiding contact with hazardous samples
• Real-time results: results provided within seconds
• Continuous monitoring: continuous monitoring throughout the entire process
• Intelligent: automatically provide analytical results
• Internet connectivity: timely feedback of results to the central control system
Technical Parameters:
| Technical Parameter |
Value |
| Product |
Online Raman Analyzer |
| Measurement Type |
Raman Spectrometer |
| Laser wavelength |
785nm |
| Sample Type |
Liquid |
| Number of detection channels |
1 single channel |
| Chamber dimension |
600 mm(width)× 400 mm(depth)× 900 mm(height) |
| Device dimension |
900 mm(width)× 400 mm(depth)× 1300 mm(height) |
Explosion Protection Rating
(Main Unit) |
Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc |
| Operating temperature |
-20 ℃ ~ +50 ℃ |
| Thermostat |
Three-level temperature control system design can operate stably for a long time in an environment of -20 ~ 50 ℃, and is suitable for online monitoring environments in different factories |
| Connectivity |
RS485 and RJ45 network ports provide Mod Bus protocol, can be adapted to many types of industrial control systems, and can feedback results to the control system. |
| Probe |
One standard 5 m non-immersed fiber optic probe (PR100) |
| % Relative humidity |
0~90%RH |
| Power supply |
900 W (Max)；500 W (Typical running) |
| Pre-heating time |
＜60 min |
Applications:
Li-ion battery industry
Research on the synthesis process of bis(fluoro sulfonyl)amide
Biopharmaceutical industry
Quality Control in Biofermentation Engineering
Fine chemical industry
Research on the process of producing furfuryl alcohol by hydrogenation reaction of furfural
For example: Monitoring of Extreme Conditions in Chemical Reactions/Biological Processes
Under extreme conditions such as strong acids or bases, high temperatures and pressures, strong corrosiveness, and highly toxic reactions, conventional analytical methods face challenges in sampling, and analytical instruments may be unable to withstand the reactivity of samples. In such scenarios, online monitoring optical probes, designed specifically for compatibility with extreme reaction environments, stand as the unique solution.
Typical Users: Production personnel involved in extreme conditions chemical reactions from new materials enterprises, chemical companies, and research institutions.
Usage models:
The RS2000PAT can be used in two ways in large-scale production.
The first way is to use an industrial immersion long probe to go deep below the liquid surface of the reaction system to monitor the reaction components, which is more suitable for kettle-type batch reactors;
The second way is to use the flow cell to bypass to connected probe for online monitoring, which is more suitable for continuous flow reactors and other types of reaction vessels.
FAQ:
Q1: This is the first time I use it, is it easy to operate?
A1:We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.
Q2: Can you offer an operation training?
A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support ( installation, training, debugging, maintenance ).
Q3: How to receive the best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.
Q4:If the spectrometer has a problem in my place, what could I do?
A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem maybe, according to the client's feedback. We can repair for free within one year warranty.
Q5: What about quality assurance?
A5:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
