Industrial Process Online Raman Analyzer 785nm Laser Four Channel

Contact Now

Industrial Process Online Raman Analyzer 785nm Laser Four Channel

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2000TPAT-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (Max)；500 W (Typical Running)
Number Of Detection Channels:	Four-channel Switching Detection	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.01%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	Online Raman Analyzer 785nm , Online Raman Analyzer Four Channel , Online Raman Analyser 785nm

Product Description

Industrial Process Online Raman Analyzer 785nm Laser Four Channel

Key Specifications

Laser wavelength	785nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (Max)；500 W (Typical running)
Number of detection channels	Four-channel switching detection
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.01%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

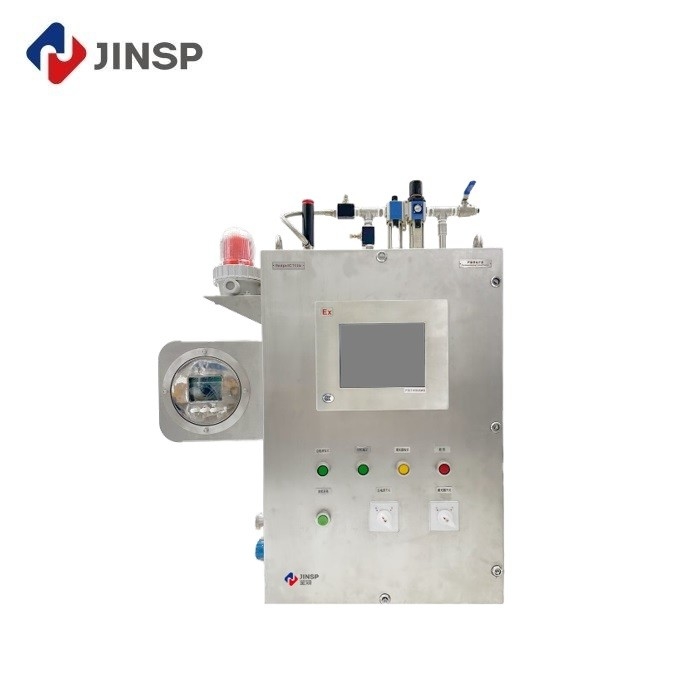

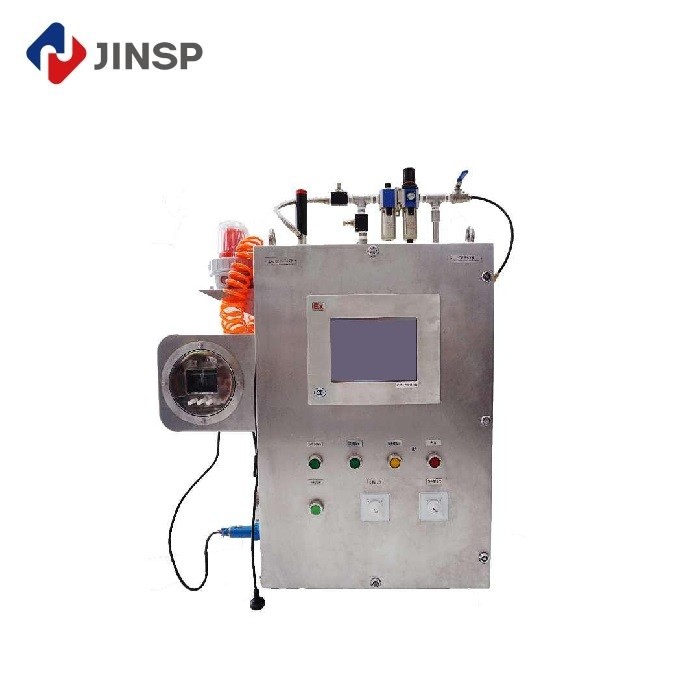

The JINSP® RS2000TPAT-4 is a 785nm Laser Four Channel Ultra High Sensitivity Industrial Process Online Raman Analyzer with explosion-proof design, suitable for continuous flow reactors and batch reactors. This analyzer provides in situ, real-time, and continuous composition analysis of chemical processes in production environments.

Key Features

In situ analysis: Eliminates sampling needs, preventing exposure to hazardous materials and ensuring safer processes without contamination risks.
Real-time results: Delivers data within seconds for prompt decision-making and enhanced operational efficiency.
Continuous monitoring: Provides constant surveillance to detect process changes or anomalies immediately.
Intelligent system: Advanced analytical capabilities automatically process and interpret data with minimal human intervention.
Internet connectivity: Enables remote monitoring and real-time feedback to central control systems.

Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Thermostat	Three-level temperature control system for stable operation in -20 ~ 50 ℃ environments
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Relative humidity	0~90%RH
Pre-heating time	＜60 min

Industrial Applications

Li-ion battery industry research
Synthesis process of bis(fluoro sulfonyl)amide
Biopharmaceutical industry quality control
Biofermentation engineering
Fine chemical industry processes
Furfuryl alcohol production research

Particularly valuable for processes requiring timely intervention in case of anomalies or reaction endpoints, such as biological fermentation and enzyme-catalyzed reactions where component monitoring is crucial.

Usage Models

The RS2000TPAT-4 offers two primary usage configurations:

Industrial immersion long probe for kettle-type batch reactors
Flow cell bypass connected probe for continuous flow reactors

Frequently Asked Questions

Q: Is this equipment easy to operate for first-time users?

A: We provide comprehensive English manuals and guide videos, along with professional technical support meetings with our technicians.

Q: Do you offer operation training?

A: Yes, we offer both factory training and on-site support including installation, training, debugging, and maintenance by JINSP engineers.

Q: How can I receive the best price quickly?

A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for an accurate quotation.

Q: What if the spectrometer has problems?

A: The product includes a one-year warranty with free repairs for manufacturing defects.

Q: What quality assurance measures do you have?

A: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
