785nm Laser Single Channel Online Raman Analytical Instruments For Liquids

Contact Now

785nm Laser Single Channel Online Raman Analytical Instruments For Liquids

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Standard	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	50 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2000PAT
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (max)；500 W (typical Running)
Number Of Detection Channels:	1 Single Channel	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.5%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	raman analytical instruments for Liquids , Single Channel Raman Analytical Instruments , 785nm Laser Liquid Analyzer

Product Description

785nm Laser Single Channel Online Raman Analytical Instruments For Liquids

Key Specifications

Attribute	Value
Laser wavelength	785nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (max); 500 W (typical running)
Number of detection channels	1 Single channel
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.5%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

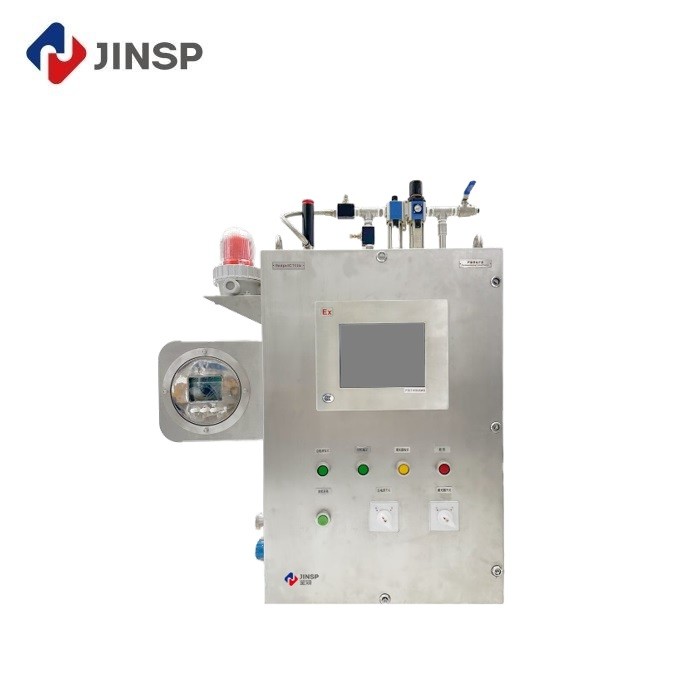

The JINSP® RS2000PAT online Raman analyzer features an industrial explosion-proof design for safe online analysis of chemical production processes. This single-channel instrument is suitable for both continuous flow reactors and batch reactors, providing real-time composition analysis in hazardous environments.

This advanced monitoring solution enables in-situ, real-time, continuous analysis of reaction components, helping determine optimal reaction endpoints and detect process abnormalities early for improved safety and product quality.

Technical Parameters

Parameter	Value
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber Dimensions	600 mm (W) × 400 mm (D) × 900 mm (H)
Device Dimensions	900 mm (W) × 400 mm (D) × 1300 mm (H)
Thermostat	Three-level temperature control system (-20℃ to 50℃)
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	5 m non-immersed fiber optic probe (PR100)
Relative Humidity	0-90%RH
Pre-heating Time	<60 min

Key Advantages

In situ analysis - no sampling required, avoiding contact with hazardous materials

Real-time results within seconds for immediate process control

Continuous monitoring throughout the entire production process

Intelligent system automatically provides analytical results

Network connectivity for real-time feedback to central control systems

Industrial Applications

Li-ion battery manufacturing processes

Biopharmaceutical production and quality control

Fine chemical synthesis (e.g., furfuryl alcohol production)

Hazardous chemical processes (nitration, chlorination, hydrogenation)

Large-scale production quality consistency control

Product Images

Integration Methods

The RS2000PAT offers two integration approaches for industrial production environments:

Immersion Probe: Deep liquid penetration for batch reactor monitoring

Flow Cell: Bypass connection for continuous flow reactor analysis

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide comprehensive English manuals and instructional videos, along with professional technical support meetings.

Q: Do you offer operation training?

A: Yes, we offer factory training or can send engineers to your location for installation, training, and maintenance support.

Q: How can I get the best price quickly?

A: Please provide detailed specifications (wavelength, detector type, pixels, etc.) in your inquiry for an accurate quotation.

Q: What if the spectrometer has problems?

A: The instrument comes with a one-year warranty. Our technicians will diagnose and repair any issues during this period.

Q: What quality assurance do you provide?

A: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
