1064nm Laser Industrial Process Online Raman Analyzer Single Channel

Contact Now

1064nm Laser Industrial Process Online Raman Analyzer Single Channel

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	50 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2100PAT
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (max)；500 W (typical Running)
Number Of Detection Channels:	1 Single Channel	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.5%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	1064nm Laser Online Raman Analyzer , Online Raman Analyzer Single Channel , Raman Analyser Single Channel

Product Description

1064nm Laser Industrial Process Online Raman Analyzer Single Channel

Product Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (max)；500 W (typical running)
Number of detection channels	1 Single channel
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.5%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

The JINSP® RS2100PAT online Raman analyzer features an industrial explosion-proof design for continuous analysis of chemical production processes, suitable for both continuous flow and batch reactors. This system provides in situ, real-time composition analysis in production environments.

Technical Parameters

Parameter	Value
Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Laser wavelength	1064nm
Sample Type	Liquid
Number of detection channels	1 single channel
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Operating temperature	-20 ℃ ~ +50 ℃
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Pre-heating time	＜60 min

Key Applications

Li-ion battery industry: Research on bis(fluoro sulfonyl)amide synthesis
Biopharmaceutical industry: Quality control in biofermentation
Fine chemical industry: Furfuryl alcohol production process research
Large-scale production: Real-time quality control for chemical/biochemical processes

System Highlights

In situ: Eliminates sampling needs for hazardous materials
Real-time results: Delivers data within seconds for immediate decision-making
Continuous monitoring: Uninterrupted process observation
Intelligent: Advanced analytical capabilities with automated results
Internet connectivity: Remote monitoring and system integration

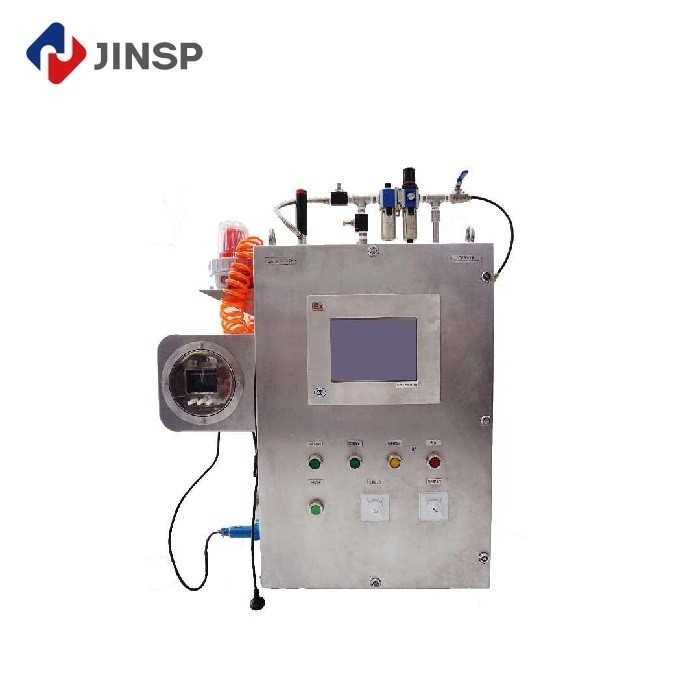

Product Images

Usage Models

The RS2100PAT offers two primary monitoring configurations:

Industrial immersion probe for batch reactor monitoring
Flow cell bypass configuration for continuous flow reactors

Frequently Asked Questions

Q1: Is the system easy to operate for first-time users?

A1: Comprehensive English manuals and video guides are provided, along with technical support meetings.

Q2: Is operator training available?

A2: Training is available at our facility or through on-site support from JINSP engineers.

Q3: How can I receive the best pricing?

A3: Provide detailed specifications with your inquiry for an accurate quotation.

Q4: What is the warranty and support policy?

A4: The system includes a one-year warranty with free repairs for manufacturing defects.

Q5: What quality assurance measures are in place?

A5: All products undergo rigorous quality inspection before shipment, with documentation available.
