High Sensitivity Raman Spectroscopy Equipment Spectroscopic Analyzer 1 Channel

Contact Now

High Sensitivity Raman Spectroscopy Equipment Spectroscopic Analyzer 1 Channel

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2100HPAT
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (max)；500 W (typical Running)
Number Of Detection Channels:	1 Single Channel	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.01%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	High Sensitivity Raman Spectroscopy Equipment , High Sensitivity Spectroscopic Analyzer , Spectroscopic Analyzer 1 Channel

Product Description

High Sensitivity Raman Spectroscopy Equipment Spectroscopic Analyzer 1 Channel

Key Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (max)；500 W (typical running)
Number of detection channels	1 Single channel
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.01%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

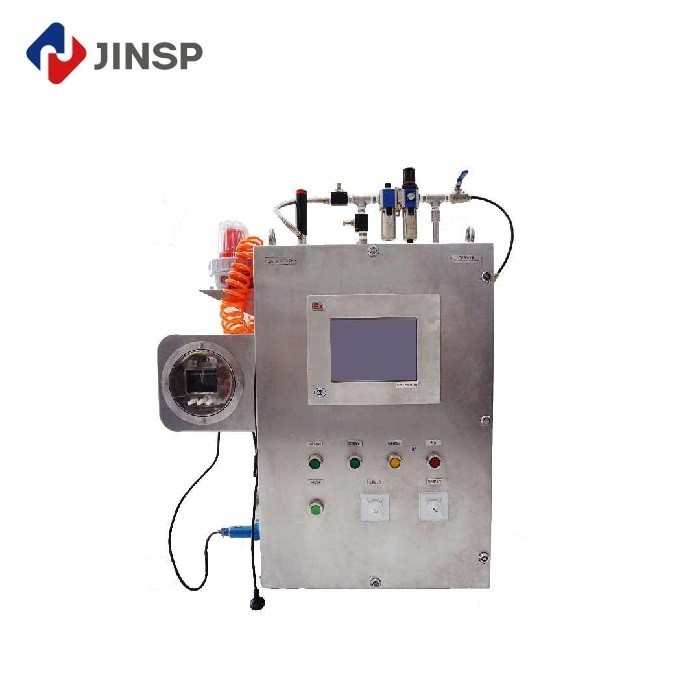

The JINSP® RS2100HPAT online Raman analyzer provides in situ, real-time, and continuous composition analysis of chemical processes in industrial production environments. This high-sensitivity 1064nm laser single-channel analyzer is specifically designed for dangerous chemical processes including nitration, chlorination, fluorination, hydrogenation, and diazotization.

Core Features

In situ analysis: Eliminates sampling needs, avoiding contact with hazardous materials
Real-time results: Delivers data within seconds for immediate process decisions
Continuous monitoring: Uninterrupted process observation for immediate anomaly detection
Intelligent analysis: Advanced algorithms provide automatic detailed results
Internet connectivity: Remote monitoring and data sharing capabilities

Technical Parameters

Parameter	Value
Product Type	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber dimensions	600 × 400 × 900 mm (W×D×H)
Device dimensions	900 × 400 × 1300 mm (W×D×H)
Thermostat	Three-level temperature control system (-20℃ to 50℃)
Connectivity	RS485 and RJ45 with Mod Bus protocol
Probe	Standard 5m non-immersed fiber optic probe (PR100)
Relative humidity	0-90% RH
Pre-heating time	<60 minutes

Industrial Applications

Li-ion battery industry research
Bis(fluoro sulfonyl)amide synthesis process
Biopharmaceutical quality control
Biofermentation engineering
Furfuryl alcohol production research

Monitoring Extreme Conditions

Under extreme conditions (strong acids/bases, high temperature/pressure, corrosive or toxic environments), conventional analytical methods face sampling challenges. The RS2100HPAT's specialized optical probes provide unique solutions for these demanding applications.

Implementation Options

Immersion probe: For kettle-type batch reactors (probe extends below liquid surface)
Flow cell bypass: For continuous flow reactors and other vessel types

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide English manuals, instructional videos, and professional technical support meetings.

Q: Do you offer operation training?

A: Training is available at our factory or through on-site support from JINSP engineers.

Q: What if the spectrometer has problems?

A: The product includes a one-year warranty with free repairs for covered issues.

Q: How is quality assured?

A: All units undergo rigorous quality inspection before shipment, with documentation provided.
