4 Channel High Applicability Raman Spectroscopy Machine For Chemical Industry

Contact Now

4 Channel High Applicability Raman Spectroscopy Machine For Chemical Industry

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2100HPAT-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900W (Max)；500W (Typical Running)
Number Of Detection Channels:	Four-channel Switching Detection	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.01%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	High Applicability Raman Spectroscopy Machine , 4 Channel Raman Spectroscopy Machine , 4 Channel raman spectroscopy equipment

Product Description

4 Channel High Applicability Raman Spectroscopy Machine For Chemical Industry

Key Specifications

Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900W (Max)；500W (Typical running)
Number of detection channels	Four-channel switching detection
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.01%
Operating temperature	-20℃ ~ 50 ℃

Product Overview

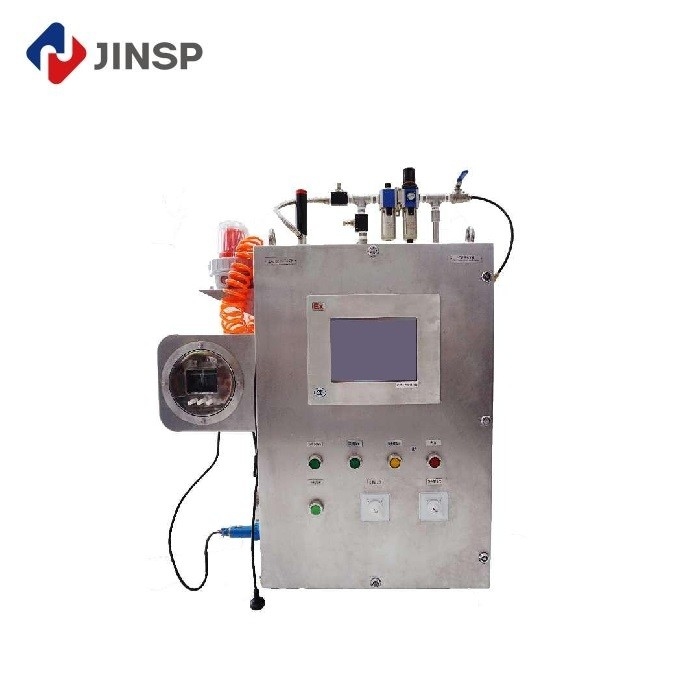

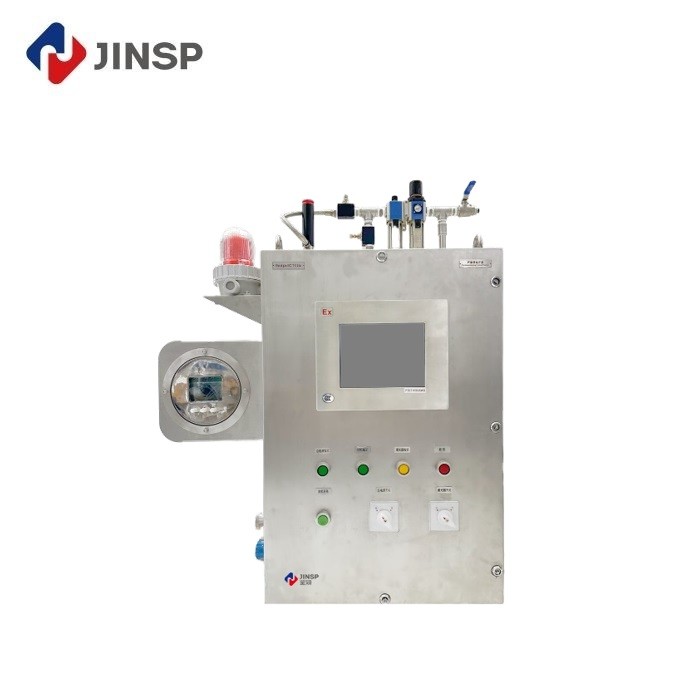

The JINSP® RS2100HPAT-4 online Raman analyzer is a cutting-edge solution for in situ, real-time monitoring of chemical compositions in industrial processes. Designed specifically for hazardous chemical environments, this four-channel analyzer provides continuous, accurate data for critical reactions including nitration, chlorination, fluorination, hydrogenation, and diazotization.

Technical Advantages

In situ analysis: Eliminates sampling requirements, reducing exposure to hazardous materials
Real-time monitoring: Delivers results within seconds for immediate process adjustments
Continuous operation: 24/7 monitoring capability for complete process visibility
Intelligent analysis: Automated data interpretation with machine learning algorithms
Remote connectivity: Internet-enabled for centralized monitoring and control

Detailed Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Laser wavelength	1064nm
Sample Type	Liquid
Number of detection channels	Four-channel switching detection
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Thermostat	Three-level temperature control system (-20 ~ 50 ℃ operation)
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Relative humidity	0~90%RH
Pre-heating time	＜60 min

Industrial Applications

Primary Industries Served:

Li-ion battery manufacturing
Biopharmaceutical production
Fine chemical processing
New materials research

Quality Control Benefits:

The RS2100HPAT-4 enables 100% batch quality control in large-scale production, eliminating the risks associated with sampling-based offline techniques. This ensures consistent product quality while reducing testing time and costs.

Integration Methods

The RS2100HPAT-4 offers two flexible integration options for industrial environments:

1. Industrial Immersion Probe

Deep liquid penetration for kettle-type batch reactors, providing real-time monitoring of reaction components.

2. Flow Cell Connection

Bypass probe setup for continuous flow reactors, enabling constant monitoring of material streams.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide comprehensive English manuals, instructional videos, and technical support to ensure smooth operation.

Q: Do you offer operation training?

A: Training is available at our facility or your location, including installation, debugging, and maintenance support.

Q: What is your warranty policy?

A: The spectrometer comes with a one-year warranty covering repairs for manufacturing defects.

Q: How do you ensure product quality?

A: All units undergo rigorous quality inspection before shipment, with documentation available upon request.
