High Applicability Industrial Process Online Analyzer Raman Spectroscopy Device

Contact Now

High Applicability Industrial Process Online Analyzer Raman Spectroscopy Device

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2100PAT-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900W (Max)；500W (Typical Running)
Number Of Detection Channels:	Four-channel Switching Detection	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.5%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	Online Analyzer Raman Spectroscopy Device , Industrial Process Online Analyzer , High Applicability Raman Spectroscopy Device

Product Description

High Applicability Industrial Process Online Analyzer Raman Spectroscopy Device

Key Specifications

Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900W (Max)；500W (Typical running)
Number of detection channels	Four-channel switching detection
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.5%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

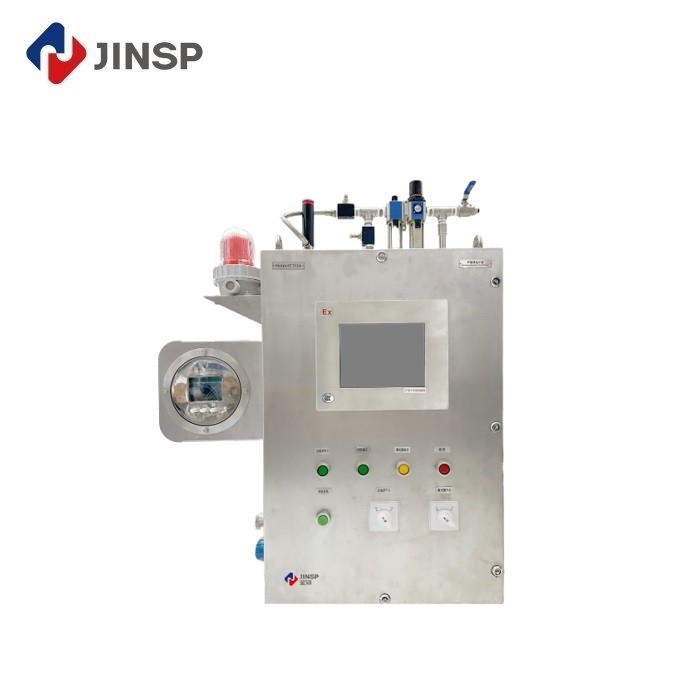

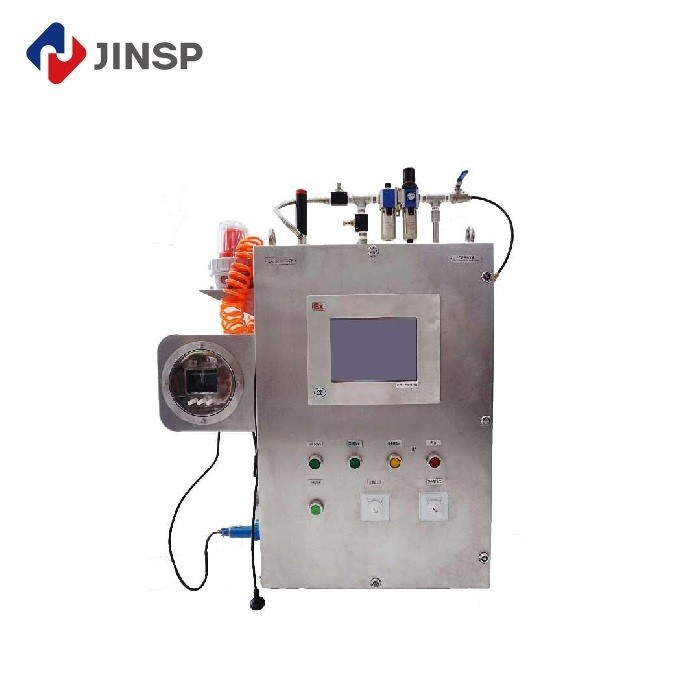

The JINSP® RS2100PAT-4 online Raman analyzer provides in situ, real-time, and continuous composition analysis of chemical processes in production environments. This 1064nm laser four-channel analyzer is highly suitable for dangerous chemical processes including nitration, chlorination, fluorination, hydrogenation, and diazotization.

Technical Highlights

In situ analysis: No sampling required, avoiding contact with hazardous samples
Real-time results: Data provided within seconds
Continuous monitoring: 24/7 monitoring throughout the entire process
Intelligent operation: Automatically provides analytical results
Network connectivity: Timely feedback of results to central control systems

Detailed Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Thermostat	Three-level temperature control system for stable operation in -20 ~ 50 ℃ environments
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Relative humidity	0~90%RH
Pre-heating time	＜60 min

Industrial Applications

Li-ion battery industry
Research on bis(fluoro sulfonyl)amide synthesis
Biopharmaceutical industry
Biofermentation engineering quality control
Fine chemical industry processes
Furfuryl alcohol production research

In biological fermentation and enzyme-catalyzed reactions, real-time monitoring of component concentrations is crucial for maintaining efficient reactions. The RS2100PAT-4 provides immediate feedback about system components, enabling timely intervention when anomalies occur.

Usage Models

Batch Reactor Configuration: Industrial immersion probe monitors below liquid surface in kettle-type reactors.

Continuous Flow Configuration: Flow cell with bypass-connected probe for online monitoring in continuous flow reactors.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide an English manual and guide video, along with professional technical support from our engineers.

Q: Do you offer operation training?

A: Yes, we offer factory training or can send engineers to your location for installation, training, and maintenance.

Q: What is your warranty policy?

A: The spectrometer comes with a one-year warranty, including free repairs for manufacturing defects.

Q: How do you ensure product quality?

A: All units undergo rigorous quality inspection before shipment, with documentation provided to customers.
