Intelligent Industrial Process Online Raman Spectroscopy Instrument

Contact Now

Intelligent Industrial Process Online Raman Spectroscopy Instrument

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2000TAPAT-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (Max)；500 W (Typical Running)
Number Of Detection Channels:	Four-channel Switching Detection	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.5%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	Online raman spectroscopy instrument , Intelligent Raman Spectroscopy Instrument , Intelligent online analyzer

Product Description

Intelligent Industrial Process Online Raman Spectroscopy Instrument

Key Specifications

Laser wavelength	785nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (Max)；500 W (Typical running)
Number of detection channels	Four-channel switching detection
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.5%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

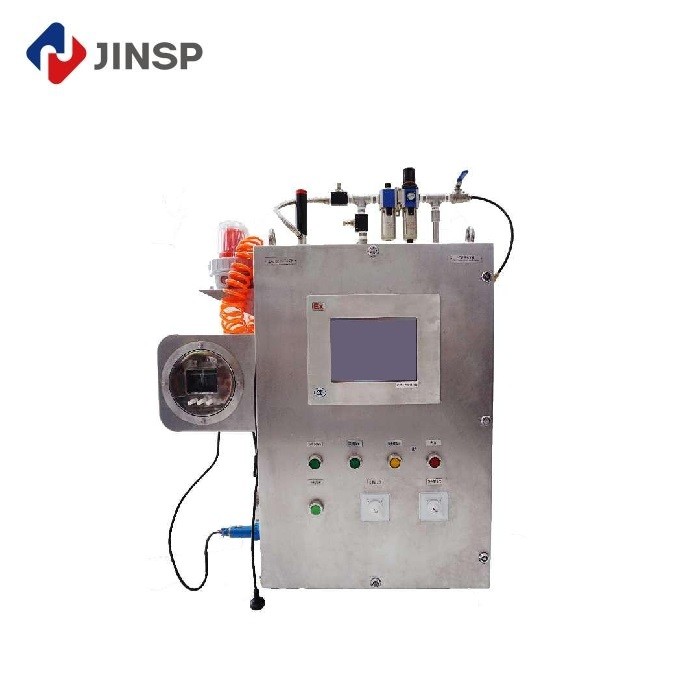

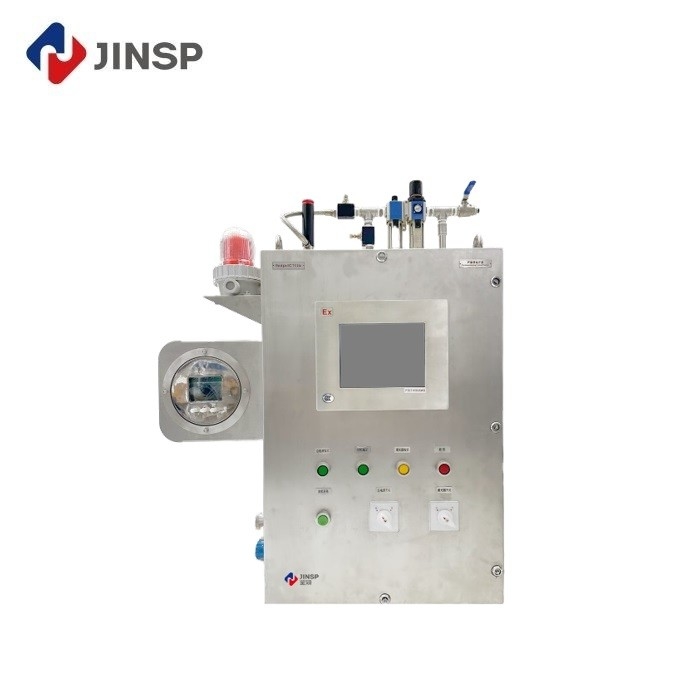

The JINSP® RS2000TAPAT-4 is a high cost-effective 785nm laser four-channel industrial process online Raman instrument with explosion-proof design, ideal for continuous flow reactors and batch reactors.

These advanced analyzers provide cutting-edge in situ, real-time, and continuous monitoring of chemical compositions in production environments, delivering precise data for immediate operational insights.

Key Advantages

In situ analysis: Eliminates sampling needs, avoiding contact with hazardous materials while ensuring accurate data collection.
Real-time results: Delivers data within seconds for prompt decision-making and operational efficiency.
Continuous monitoring: Provides uninterrupted process oversight with immediate anomaly detection.
Intelligent analysis: Features advanced algorithms for automatic result interpretation and presentation.
Internet connectivity: Enables remote monitoring and centralized data management.

Technical Parameters

Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Thermostat	Three-level temperature control system for stable operation in -20~50℃ environments
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Relative humidity	0~90%RH
Pre-heating time	＜60 min

Industrial Applications

Li-ion battery industry

Bis(fluoro sulfonyl)amide synthesis research

Biopharmaceutical industry

Biofermentation quality control

Fine chemical industry

Furfuryl alcohol production research

Monitoring Extreme Conditions

Ideal for hazardous processes involving strong acids/bases, high temperatures/pressures, corrosive or toxic reactions where conventional methods fail. Specially designed probes withstand extreme reaction environments.

Usage Models

Batch reactors: Industrial immersion probe monitors below liquid surface.

Continuous flow reactors: Flow cell with bypass-connected probe for online monitoring.

Frequently Asked Questions

Q: Is the spectrometer easy to operate for first-time users?

A: We provide English manuals, guide videos, and professional technical support meetings.

Q: Do you offer operation training?

A: Training is available at our factory or through on-site support from Jinsp engineers.

Q: How can I receive the best price quickly?

A: Provide detailed specifications in your inquiry for a prompt, accurate quotation.

Q: What if the spectrometer has problems?

A: The 1-year warranty covers free repairs with technician support for troubleshooting.

Q: What quality assurance is provided?

A: All goods undergo rigorous inspection before shipment, with documentation available.
