Four Channels 785nm Laser Raman Spectrometer Wide Spectral Range

Contact Now

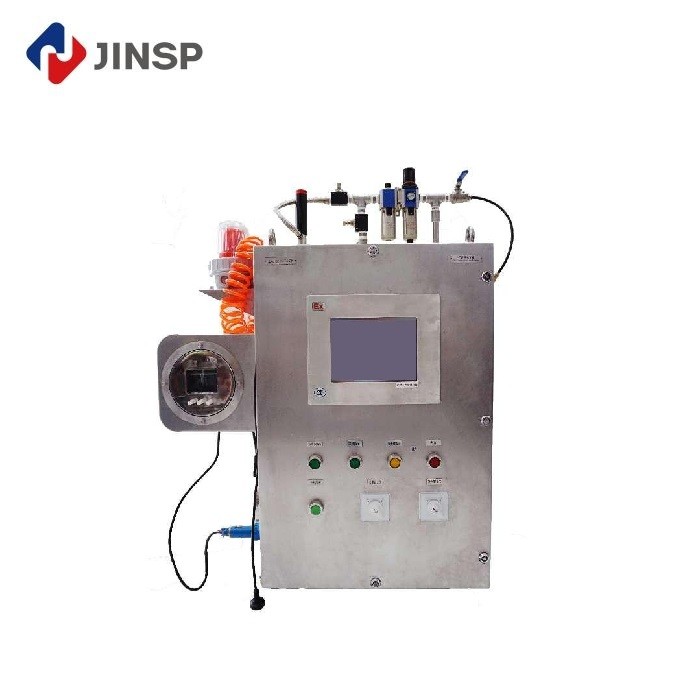

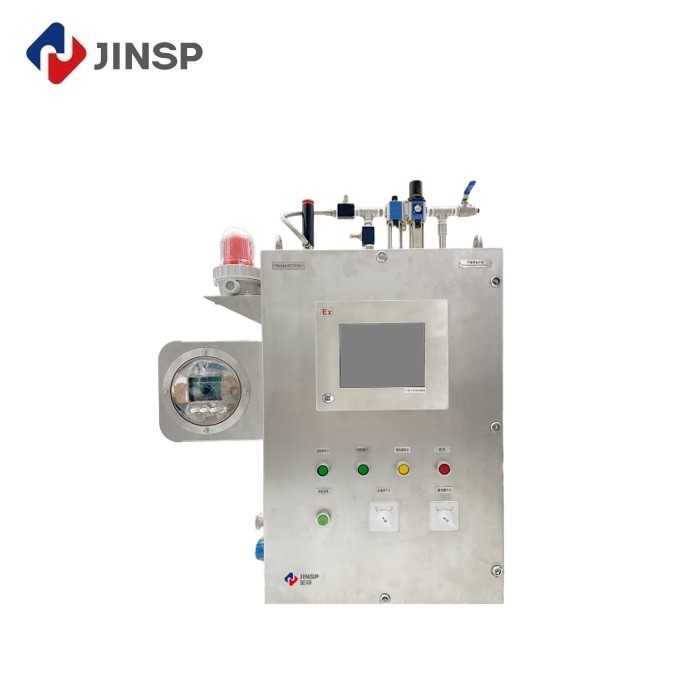

Four Channels 785nm Laser Raman Spectrometer Wide Spectral Range

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2000APAT-4
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	785nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Power Supply:	900 W (Max)；500 W (Typical Running)
Number Of Detection Channels:	Four-channel Switching Detection	Explosion Protection Rating (Main Unit):	Ex Db Eb Ib Pzc ⅡC T4 Gc / Ex Ib Pzc Tb ⅢC T130°C Dc
Detection Accuracy:	0.5%	Operating Temperature:	-20℃ ~ 50 ℃
Highlight:	Four Channels 785nm laser raman spectrometer , laser raman spectrometer Wide Spectral Range , Four Channels raman spectroscopy detector

Product Description

Four Channels 785nm Laser Raman Spectrometer Wide Spectral Range

Key Specifications

Attribute	Value
Laser wavelength	785nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Power supply	900 W (Max)；500 W (Typical running)
Number of detection channels	Four-channel switching detection
Explosion Protection Rating (Main Unit)	Ex db eb ib pzc ⅡC T4 Gc / Ex ib pzc tb ⅢC T130°C Dc
Detection Accuracy	0.5%
Operating Temperature	-20℃ ~ 50 ℃

Product Overview

The 785nm Laser Four Channel Wide Spectral Range Industrial Process Online Raman Spectrometer provides real-time monitoring solutions for chemical, pharmaceutical, and materials engineering production environments. This advanced system enables in-situ, continuous analysis of reaction components to optimize process endpoints and detect abnormalities early.

JINSP® RS2000APAT-4 Analyzer Features

In situ: no sampling required, avoiding contact with hazardous samples

Real-time results: provided within seconds

Continuous monitoring throughout the entire process

Intelligent: automatically provides analytical results

Internet connectivity: timely feedback to central control system

Operational Benefits

Enhance production efficiency and capacity

Enable timely intervention to control reaction processes

Reduce product defect rates and minimize losses

Provide alarms for abnormal reactions

Eliminate dangerous on-site sampling requirements

Technical Specifications

Parameter	Value
Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Chamber dimension	600 mm(width)× 400 mm(depth)× 900 mm(height)
Device dimension	900 mm(width)× 400 mm(depth)× 1300 mm(height)
Thermostat	Three-level temperature control system for stable operation in -20~50℃ environments
Connectivity	RS485 and RJ45 network ports with Mod Bus protocol
Probe	One standard 5 m non-immersed fiber optic probe (PR100)
Relative humidity	0~90%RH
Pre-heating time	＜60 min

Industrial Applications

The RS2000APAT-4 analyzer is ideal for monitoring dangerous chemical processes including:

Nitration, chlorination, fluorination processes

Hydrogenation and diazotization reactions

Li-ion battery industry research

Biopharmaceutical quality control

Fine chemical production processes

Monitoring Extreme Conditions

Under strong acids/bases, high temperatures/pressures, corrosive or toxic conditions, conventional analytical methods face challenges. Our specialized optical probes provide unique solutions for these extreme environments.

Implementation Options

The RS2000APAT-4 offers two deployment methods:

Industrial immersion probe for kettle-type batch reactors

Flow cell with bypass probe for continuous flow reactors

Frequently Asked Questions

Q1: Is this spectrometer easy to operate for first-time users?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support meetings.

Q2: Do you offer operation training?

A2: Training is available at our facility, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q3: How can I receive the best price quickly?

A3: Please provide detailed specifications (wavelength, detector type, pixels, focal length) with your inquiry for an accurate quotation.

Q4: What if the spectrometer has problems?

A4: The product includes a one-year warranty with free repairs for manufacturing defects.

Q5: What quality assurance measures are in place?

A5: All units undergo rigorous quality inspection before shipment, with documentation available upon request.
