Advanced Nanosecond Long Pulse Laser for Precise Material Cleaning Applications

Contact Now

Advanced Nanosecond Long Pulse Laser for Precise Material Cleaning Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	70-90 Working days
Payment Terms :	T/T	Supply Ability :	20PCS / 70-90Working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LS1000 LS1010 LS1020
Document:	Product Brochure PDF

Detail Information
Wave Length:	1064nm	Repetition Rate:	1kHz ~ 5kHz
Pulse Width:	60 ± 20nm	Power Stability:	<1.5%
Beam Quality:	M2<1.3	Beam Divergence:	0.4±0.05(mrad)
Cooling Method:	Water	Average Power(:	2.4W ~ 240W
Highlight:	q switched nanosecond laser 60ns Width , 5kHz q switched nanosecond laser , 1kHz long pulsed laser

Product Description

Product Specifications

Wave length	1064nm
Repetition Rate	1kHz ~ 5kHz
Pulse Width	60 ± 20nm
Power Stability	<1.5%
Beam quality	M2<1.3
Beam Divergence	0.4±0.05(mrad)
Cooling Method	Water
Average Power	2.4W ~ 240W

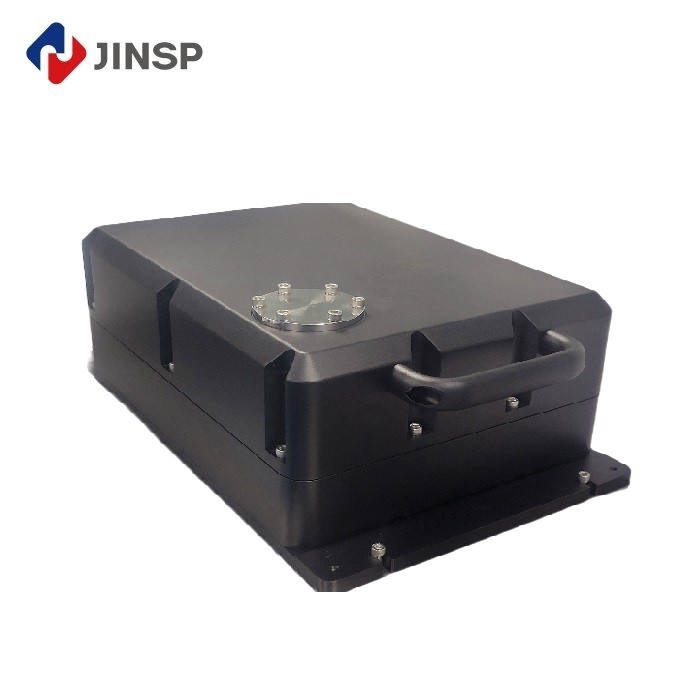

Nano-Second Long Pulse Width Solid-State Laser

The JINSP LS1000 Series represents a collection of diode-pumped solid-state lasers that fall within the mid-to-high power range, characterized by their continuous pulsed operation and water-cooling mechanism. These lasers utilize a slab design and are specifically doped with Neodymium: Yttrium Aluminum Garnet (Nd: YAG) as the active medium.

The JINSP LS1000 Series is versatile, offering the capability to function either as an independent, self-contained laser unit or as a foundational laser seed source that can be further amplified. This dual functionality makes the JINSP LS1000 Series suitable for a wide array of applications requiring reliable and powerful laser outputs.

Product Selection Table & Parameters

Product code	LS1000	LS1010	LS1020
Wavelength(nm)	1064
Repetition Rate(kHz)	1 \| 3 \| 5	1 \| 3 \| 5	1 \| 3 \| 5
Average Power (W)	2.4 \| 6.5 \| 8	20 \| 60 \| 75	80 \| 240 \| 300
Peak Power (MW)	0.04 \| 0.03 \| 0.02	0.33 \| 0.29 \| 0.2	1.33 \| 1.14 \| 0.79
Single Pulse Energy(mJ)	2.4 \| 2.2 \| 1.6	20 \| 20 \| 15	80 \| 80 \| 60
Pulse Width (ns)	60 ± 20
Size of Nearfield Beam	~5 (nm)
Beam Divergence	0.4±0.05(mrad)
Beam Quality M2＜	1.3	1.5	1.8
Linewidth	40 (GHz)
Polarization	Linear
Warm-up Time	~5 (min)

Applications

Scientific Research Field (Scientific Research Institutes and Universities)
Other Core Components for Instruments (Laser Instrument Manufacturers)
Industrial Manufacturing Field (Machining, Marking Factories)
Medical Field (Hospitals, Medical Device Companies)

Advantages of Laser Processing

Non-contact: No physical contact is required, avoiding scratches or wear on the material.
High Precision: The concentrated energy is accurately directed to the target area, enabling precise cleaning.
High Efficiency: Removes contaminants quickly and efficiently, eliminating the need to disassemble machinery, thereby reducing cleaning time and costs.
Controllability: Laser parameters and energy output can be adjusted, adapting to the cleaning needs of different materials and contaminants.
Environmentally Friendly: Eliminates the need for chemical solvents or cleaners, reducing pollution.

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.

Q2: Can you offer an operation training?

A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).

Q3: How to receive the best price in the shortest time?

A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem may be, according to the client's feedback. We can repair for free within one year warranty.

Q5: What about quality assurance?

A5: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
