Water-Cooled Nanosecond Long Pulse Laser for Continuous and Pulsed Output in Industrial Laser Applications

Get Best Price

Chat Now

Water-Cooled Nanosecond Long Pulse Laser for Continuous and Pulsed Output in Industrial Laser Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	80-90 Working days
Payment Terms :	T/T	Supply Ability :	20PCS / 80-90Working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LS1210 LS1220
Document:	Product Brochure PDF

Detail Information
Wave Length:	532nm	Repetition Rate:	1kHz ~ 5kHz
Pulse Width:	50 ± 20nm	Power Stability:	<1.5%
Beam Quality:	M2<1.5	Beam Divergence:	0.2±0.05(mrad)
Cooling Method:	Water	Average Power(:	10W , 30W, 70W
Highlight:	Industrial Nanosecond Pulsed Laser , Continuous Nanosecond Pulsed Laser , Long Pulse Nanosecond Pulsed Laser

Product Description

Product Specifications

Attribute	Value
Wave length	532nm
Repetition Rate	1kHz ~ 5kHz
Pulse Width	50 ± 20nm
Power Stability	<1.5%
Beam quality	M2<1.5
Beam Divergence	0.2±0.05(mrad)
Cooling Method	Water
Average Power	10W, 30W, 70W

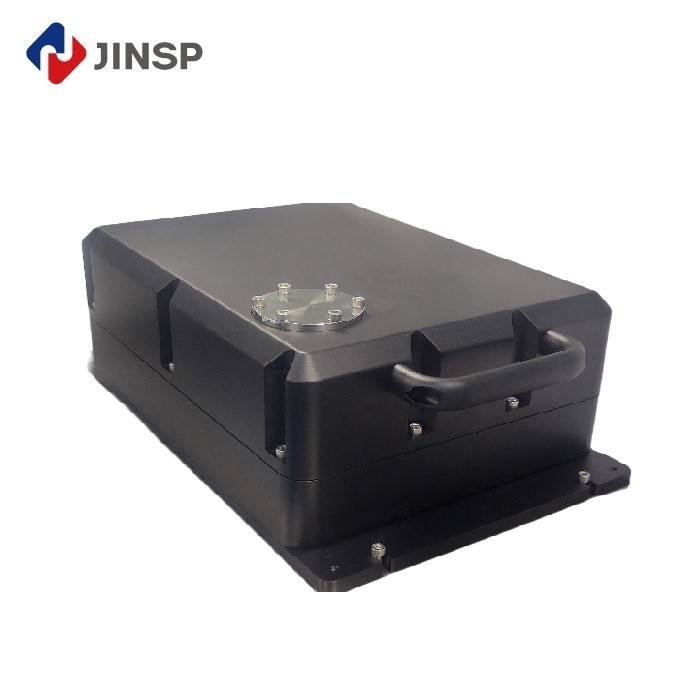

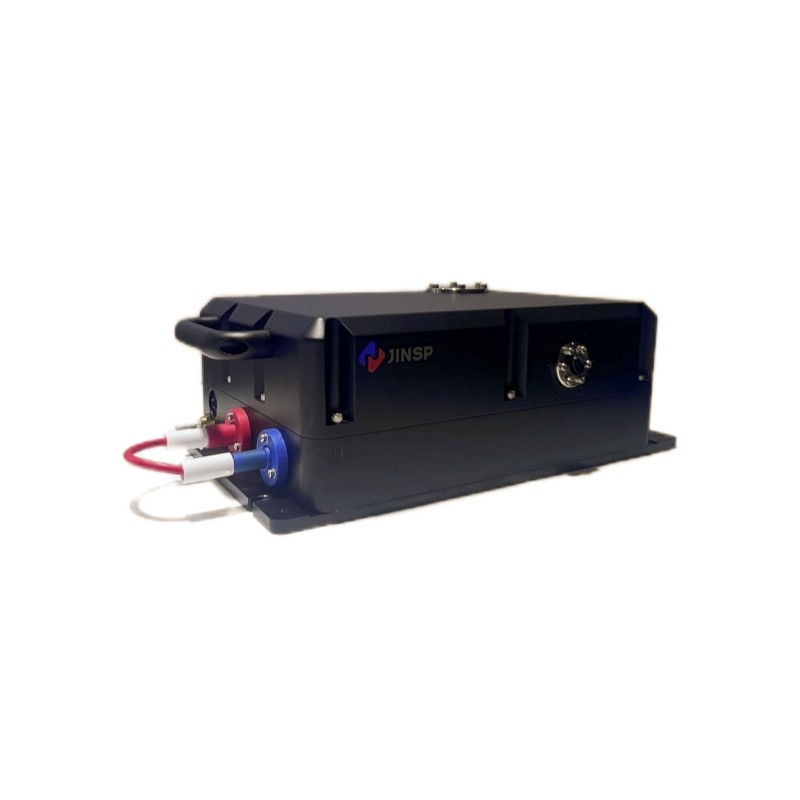

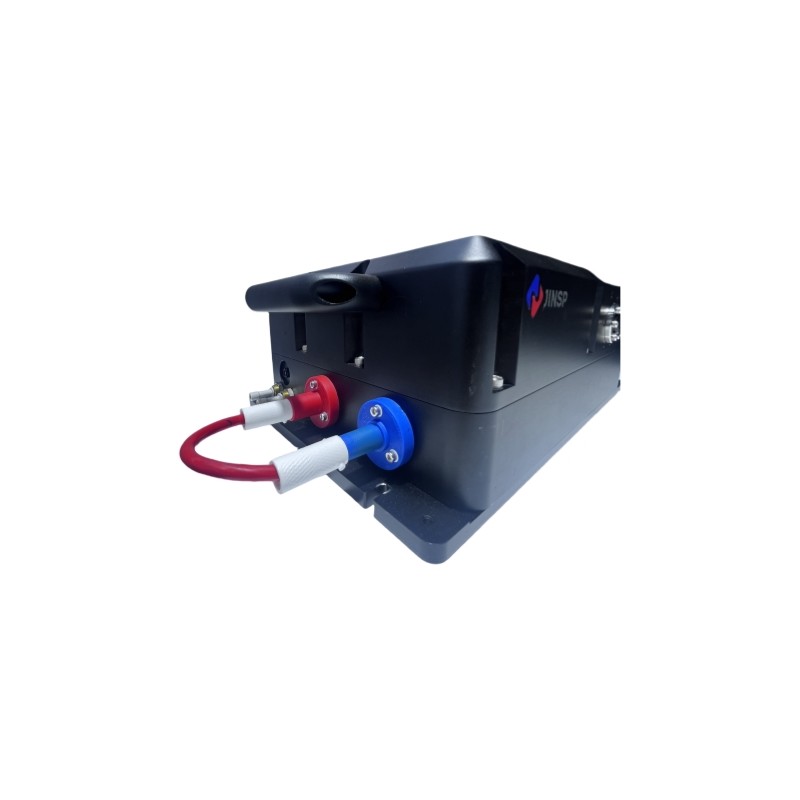

Nano-Second Long Pulse Width Solid-State Laser

The JINSP LS1200 Series embodies a comprehensive range of diode-pumped solid-state lasers, which are categorized within the medium to high power spectrum, specializing in the production of both continuous wave and pulsed laser outputs. These advanced lasers come fully equipped with a sophisticated water cooling system, which ensures optimal performance and longevity by maintaining stable operating temperatures. They utilize a slab architecture, which is a cutting-edge design that enhances efficiency and beam quality. The active medium in these lasers is Neodymium-doped Yttrium Aluminum Garnet, commonly abbreviated as Nd: YAG, which is renowned for its excellent lasing properties.

Thoughtfully designed with versatility in mind, the JINSP LS1200 Series can operate either as a standalone, fully integrated laser system or as a foundational laser seed source that can be subsequently amplified to meet higher power requirements. This dual functionality is a testament to the series' adaptability, making it an exceptionally suitable choice for a vast array of applications that demand dependable and powerful laser performance.

Product Selection Table & Parameters

Product code	LS1210			LS1320
Product code	1	3	5	1	3	5
Wavelength(nm)	532
Repetition Rate(kHz)	1	3	5	1	3	5
Average Power (W)	10	30	37	40	120	150
Peak Power (MW)	0.17	0.14	0.1	0.67	0.57	0.39
Single Pulse Energy(mJ)	10	10	7.4	40	40	30
Pulse Width (ns)	50 ± 20
Size of Nearfield Beam	~5 (nm)
Beam Divergence	0.2±0.05(mrad)
Beam Quality M2＜	1.5			1.8
Linewidth	40 (GHz)
Polarization	Linear
Warm-up Time	~10 (min)

Main Applications

Scientific Research Field (Scientific Research Institutes and Universities)
Other Core Components for Instruments (Laser Instrument Manufacturers)
Industrial Manufacturing Field (Machining, Marking Factories)
Medical Field (Hospitals, Medical Device Companies)

Advantages of Laser Processing

Non-contact: No physical contact is required, avoiding scratches or wear on the material.
High Precision: The concentrated energy is accurately directed to the target area, enabling precise cleaning.
High Efficiency: Removes contaminants quickly and efficiently, eliminating the need to disassemble machinery, thereby reducing cleaning time and costs.
Controllability: Laser parameters and energy output can be adjusted, adapting to the cleaning needs of different materials and contaminants.
Environmentally Friendly: Eliminates the need for chemical solvents or cleaners, reducing pollution.

Frequently Asked Questions

Q1: This is the first time I use it, is it easy to operate?

A1: We will send you a manual and guide video in English, it can teach you how to operate the spectrometer. Also, our technicians will offer professional technical operation meetings.

Q2: Can you offer an operation training?

A2: Your technicians can come to our factory for training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).

Q3: How to receive the best price in the shortest time?

A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length, and so on. We will send you a quotation with details soon to your email.

Q4: If the spectrometer has a problem in my place, what could I do?

A4: The spectrometer has a one-year warranty. If it breaks down, our technician will figure out what the problem may be, according to the client's feedback. We can repair for free within one year warranty.

Q5: What about quality assurance?

A5: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
