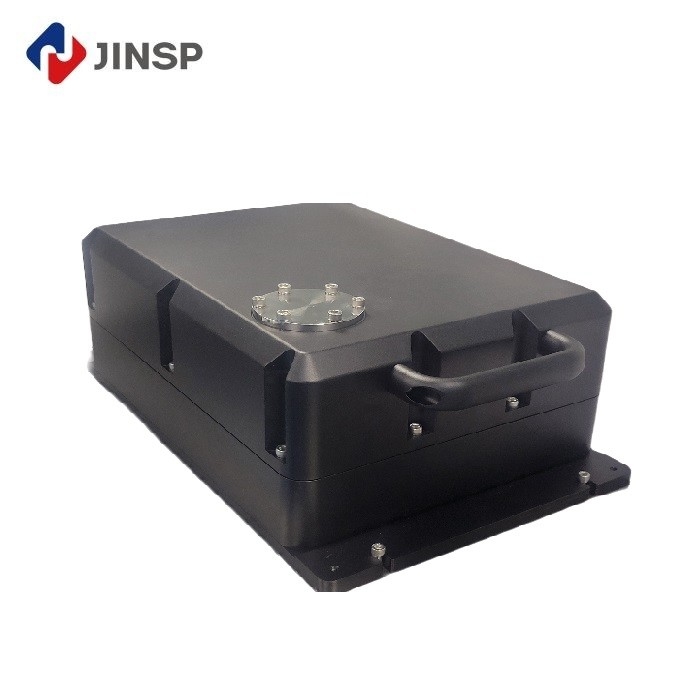

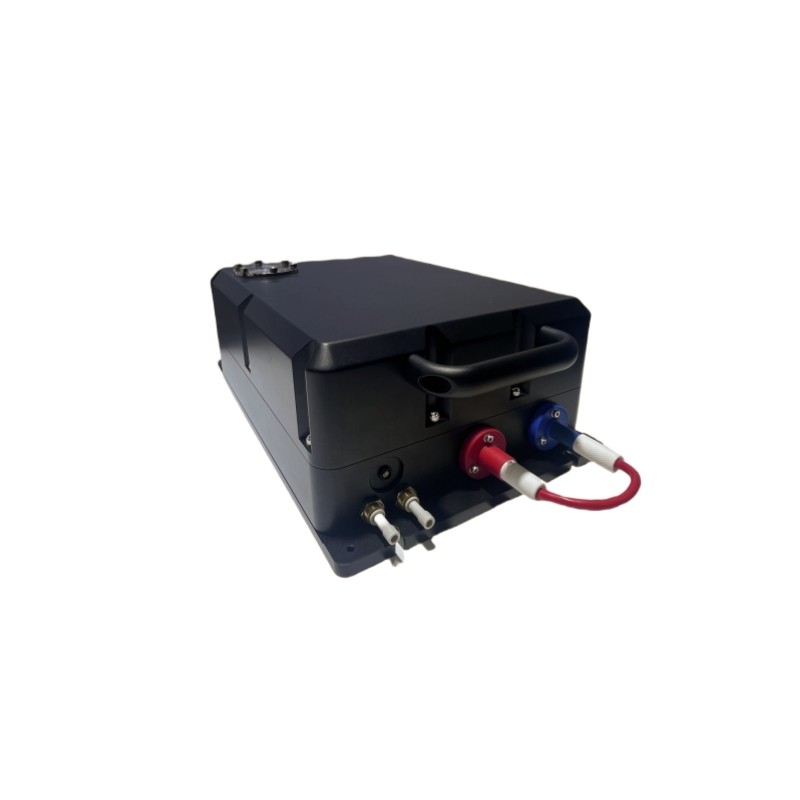

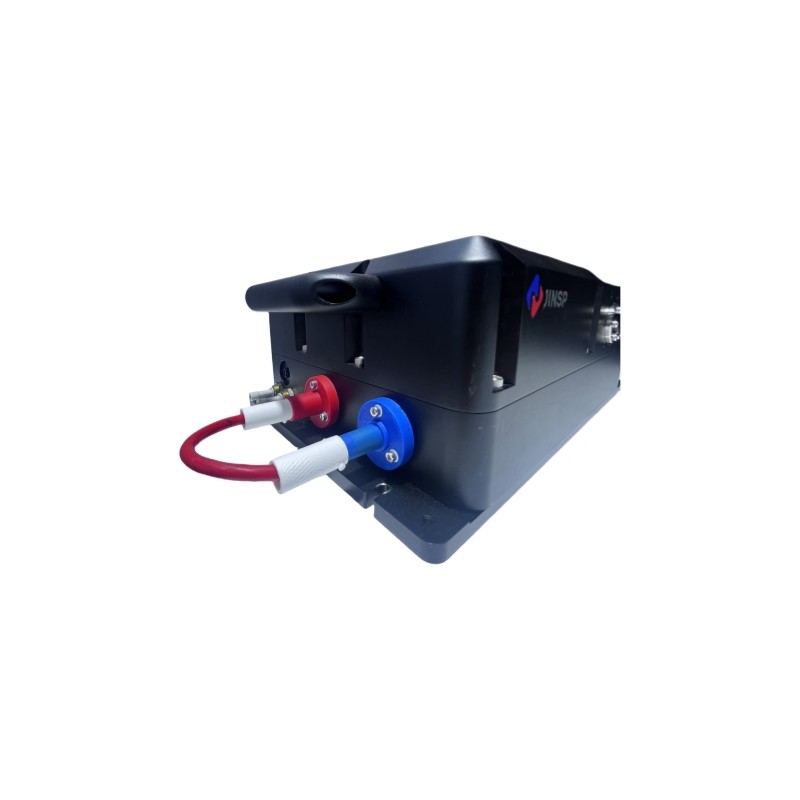

Powerful Versatile 1064nm Nanosecond Pulsed Laser For Industrial Applications

Contact Now

Powerful Versatile 1064nm Nanosecond Pulsed Laser For Industrial Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	1PC/BOX	Delivery Time :	70-90 Working days
Payment Terms :	T/T	Supply Ability :	20PCS / 70-90Working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LS1000 LS1010 LS1020
Document:	Product Brochure PDF

Detail Information
Wave Length:	1064nm	Repetition Rate:	1kHz ~ 5kHz
Pulse Width:	60 ± 20nm	Power Stability:	<1.5%
Beam Quality:	M2<1.3	Beam Divergence:	0.4±0.05(mrad)
Highlight:	1064nm nanosecond pulsed laser , Powerful nanosecond pulsed laser , nanosecond laser Industrial Applications

Product Description

Technical Specifications

Attribute	Value
Wave Length	1064nm
Repetition Rate	1kHz ~ 5kHz
Pulse Width	60 ± 20nm
Power Stability	<1.5%
Beam Quality	M2<1.3
Beam Divergence	0.4±0.05(mrad)

Product Overview

The Nano-second Long Pulse Width Solid-State Laser delivers high power pulse output with nanosecond pulse widths through advanced laser technology, enabling precise control for applications requiring high accuracy.

This versatile laser system is compatible with various materials including metals, plastics, and ceramics, making it suitable for cutting, welding, drilling, and medical applications like tattoo removal and skin resurfacing.

Safety features include laser power monitoring, interlocks, and emergency stops to ensure operator protection.

Model Specifications

Parameter	LS1010	LS1020
Wavelength (nm)	1064
Repetition Rate (kHz)	1 \| 3 \| 5	1 \| 3 \| 5
Average Power (W)	10 \| 30 \| 37	40 \| 120 \| 150
Peak Power (MW)	0.17 \| 0.14 \| 0.1	0.67 \| 0.57 \| 0.39
Single Pulse Energy (mJ)	10 \| 10 \| 7.4	40 \| 40 \| 30
Pulse Width (ns)	50 ± 20
Beam Quality M²<	1.5	1.8

Key Features

Long-pulse Q-switched laser technology
1064nm wavelength with nano-second pulse duration
High energy and power output
Excellent beam quality with linear polarization
Adjustable repetition rate

Applications

Medical: Dermatological treatments (tattoo removal, skin rejuvenation), dental procedures (cavity preparation, teeth whitening).

Industrial: Precision cutting and drilling of metals, ceramics, and glass.

Scientific Research: Spectroscopy, microscopy, and laser-induced breakdown spectroscopy (LIBS).

Support & Services

Our team provides comprehensive technical support including installation assistance, troubleshooting, maintenance, and operator training to ensure optimal system performance.

Frequently Asked Questions

Q: What is the brand name of the product?

A: The brand name of the product is JINSP.

Q: What are the model numbers available?

A: Available models are LS1000, LS1010, and LS1020.

Q: Is the product certified?

A: Yes, certified with CE and ISO9001.

Q: What is the minimum order quantity?

A: Minimum order quantity is 1 unit.

Q: What are the payment and delivery terms?

A: Negotiable T/T payment, 60-90 working days delivery for up to 20 units, packaged 1PC/BOX.
