Light Weight Transmission Grating Spectrometer Wavelength Range 785nm-988nm

Contact Now

Light Weight Transmission Grating Spectrometer Wavelength Range 785nm-988nm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	80 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST100S
Document:	Product Brochure PDF

Detail Information
Grating Type:	VPH Volume Holographic Transmission Grating	Weight:	<6Kg (including Camera)
Wavelength Range:	785nm~988nm Corresponds To 0~2600cm-1	Number Of Channels:	6 Channels (for Multi-core Optical Fiber With Core Diameter Of 200μm)
Dimensions:	354.9198.7123.5mm	Product Category:	ST100S Raman Spectrometers
Product Name:	Transmission Fiber Spectrometer Advanced Spectral Analysis Technology
Highlight:	transmission grating spectrometer 785nm , Transmission Grating Spectrometer 988nm , 988nm transmission grating spectrograph

Product Description

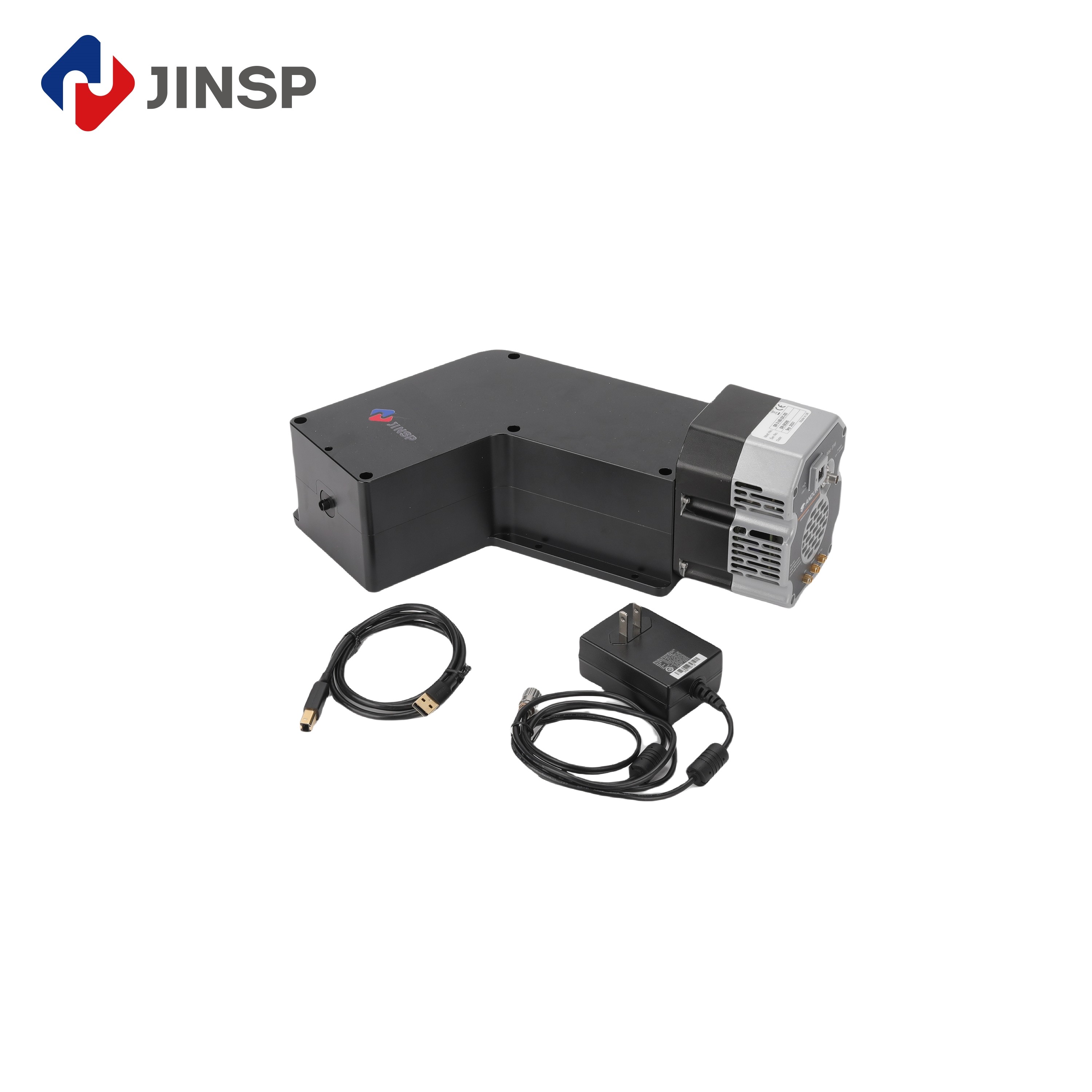

Light Weight Transmission Grating Spectrometer

Wavelength Range: 785nm-988nm

The JINSP ST100S transmission imaging spectrometer features a deep-cooling scientific CCD camera and VPH volume holographic grating with 90% diffraction efficiency, delivering 5-10x greater sensitivity and twice the resolution of traditional spectrometers.

Key Specifications

Grating Type	VPH Volume Holographic Transmission Grating
Weight	<6Kg (including Camera)
Wavelength Range	785nm~988nm (0~2600cm-1)
Number of Channels	6 Channels (for Multi-core Optical Fiber with 200μm Core Diameter)
Dimensions	354.9 × 198.7 × 123.5mm
Diffraction Efficiency	>85%
Fiber Connector	FC/PC

Product Features

High-throughput transmission design for superior sensitivity
Zero-aberration optical system
High diffraction efficiency (>85%)
Supports multiple channels for versatile applications
Highly stable performance for research-grade measurements
Deep-cooling CCD camera for improved SNR

Primary Applications

785nm Confocal Raman microscopy
Online Raman detection systems
Pharmaceutical analysis and quality control
Biological fermentation monitoring
Chemical reaction process analysis

Technical Support & Services

Our comprehensive support includes:

Instrument setup and calibration assistance
On-site or factory training programs
Maintenance and repair services
Software upgrades and customization
One-year warranty with free repairs

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide an English manual and instructional video, along with professional technical support meetings.

Do you offer operation training?

Training is available at our factory or we can arrange on-site support including installation, training, and debugging.

What is your warranty policy?

The spectrometer comes with a one-year warranty covering free repairs for any manufacturing defects.

Packaging & Shipping

The spectrometer ships in a protective foam-lined cardboard box including:

Power cable
USB 2.0 connection cable
Complete user manual

Company Profile

JINSP Company Limited, originating from Tsinghua University, brings 17 years of spectroscopic technology expertise. Our products serve pharmaceutical, chemical, public security, and customs applications worldwide, with over 3,000 units sold across 30 countries.
