Deep cooling 532nm Raman Spectrometer Module for Chemical Industry Online Biopharmaceuticals

Contact Now

Deep cooling 532nm Raman Spectrometer Module for Chemical Industry Online Biopharmaceuticals

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	80 PCS/40-70 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	ST90S1
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	532nm~680nm (260~4200cm-1)	Optical Resolution:	0.14nm(5cm-1)~~25μm 0.25nm(8cm-1)~~50μm
Effective Pixel:	2000*256	Pixel Size μm:	15*15
Detector:	Andor Ivac 316	Cooling Temperature:	-70℃
Highlight:	532nm Raman Spectrometer Module , Chemical Industry Raman Spectrometer Module , Online Biopharmaceuticals Raman Spectrometer Module

Product Description

Deep Cooling 532nm Raman Spectrometer Module

Professional-grade spectrometer module for chemical industry, online biopharmaceutical applications, and research-grade Raman spectroscopy detection systems.

Key Specifications

Attribute	Value
Wavelength range	532nm~680nm (260~4200cm-1)
Optical resolution	0.14nm(5cm-1)~~25μm 0.25nm(8cm-1)~~50μm
Effective pixel	2000*256
Pixel size μm	15*15
Detector	Andor ivac 316
Cooling temperature	-70℃

Product Overview

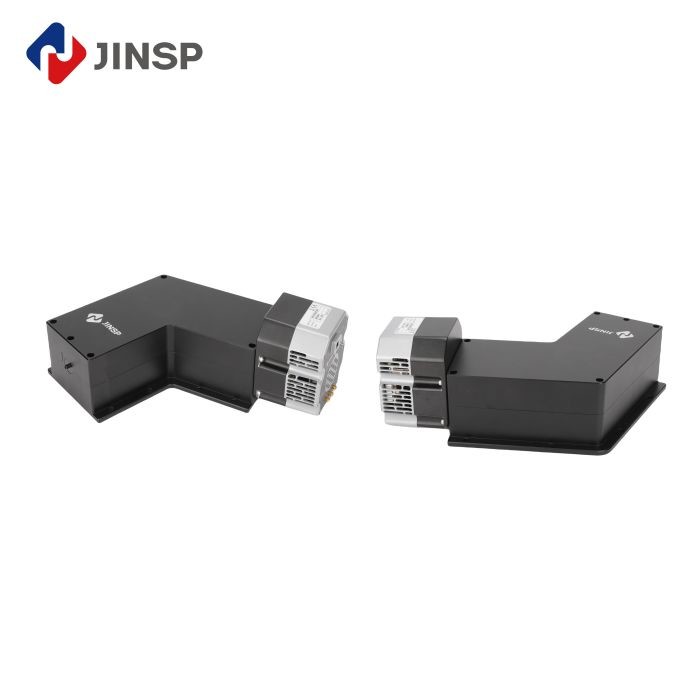

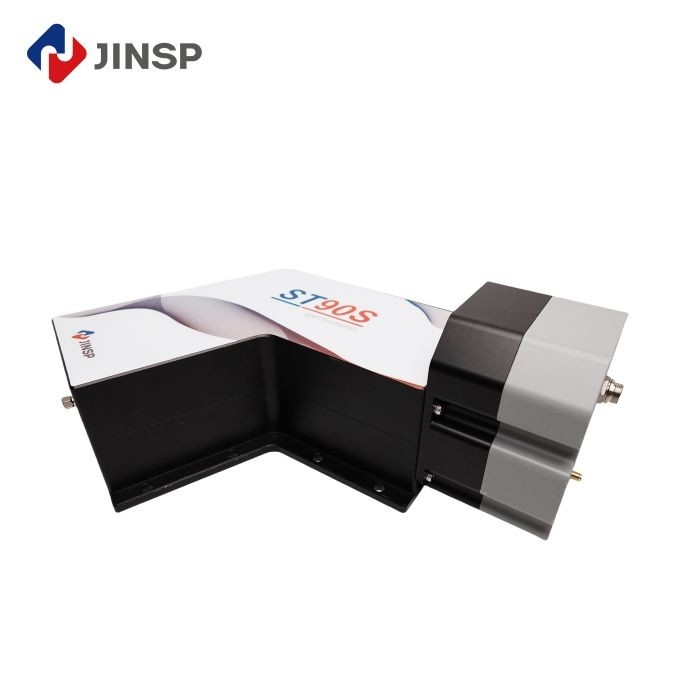

The JINSP ST90S High-Throughput Transmission Fiber Spectrometer is a modular solution for 532nm Raman systems, featuring:

Compact design weighing less than 6kg (including camera)
High flux with numerical aperture of 0.25
VPH grating with diffraction efficiency up to 90%
Multiple channel support with SMA905 optical fiber compatibility
Wide integration time range (1ms-3600s)
Ultra-low noise and dark current for precise measurements

Parameter	Value
Product Name	High-Throughput Transmission Raman Spectrometer
Dimensions	348.7mm×222.8mm ×126mm
Optical Resolution	0.25nm (8cm-1 at 50μm slit)
Grating Type	VPH Volume Holographic Transmission Grating
Diffraction Efficiency	>85%

Applications

Ideal for:

Research-grade Raman spectroscopy detection systems
532nm Confocal Raman microscopy
Industrial Raman system integration
Chemical industry online monitoring
Biopharmaceutical applications
Online gas detection and process analysis

Support & Services

Comprehensive English manual and guide video included
Professional technical operation meetings available
On-site training options at factory or customer location
One-year warranty with free repairs
Technical support for installation, debugging, and maintenance
Calibration and repair services available

Shipping & Packaging

The spectrometer is securely packaged in foam-lined boxes with all necessary accessories. Shipping options include:

Multiple carrier options available
Tracking number provided
Estimated delivery time: 40-70 working days

Frequently Asked Questions

Q: What is the brand and model of this product?

A: JINSP ST90S High-Throughput Transmission Fiber Spectrometer.

Q: Is this product certified?

A: Yes, CE-certified.

Q: What are the minimum order requirements?

A: Minimum order quantity is 1 unit.

Q: What are the payment terms?

A: Payment by T/T (Telegraphic Transfer).

Q: Is the price negotiable?

A: Yes, prices are negotiable based on order volume.
